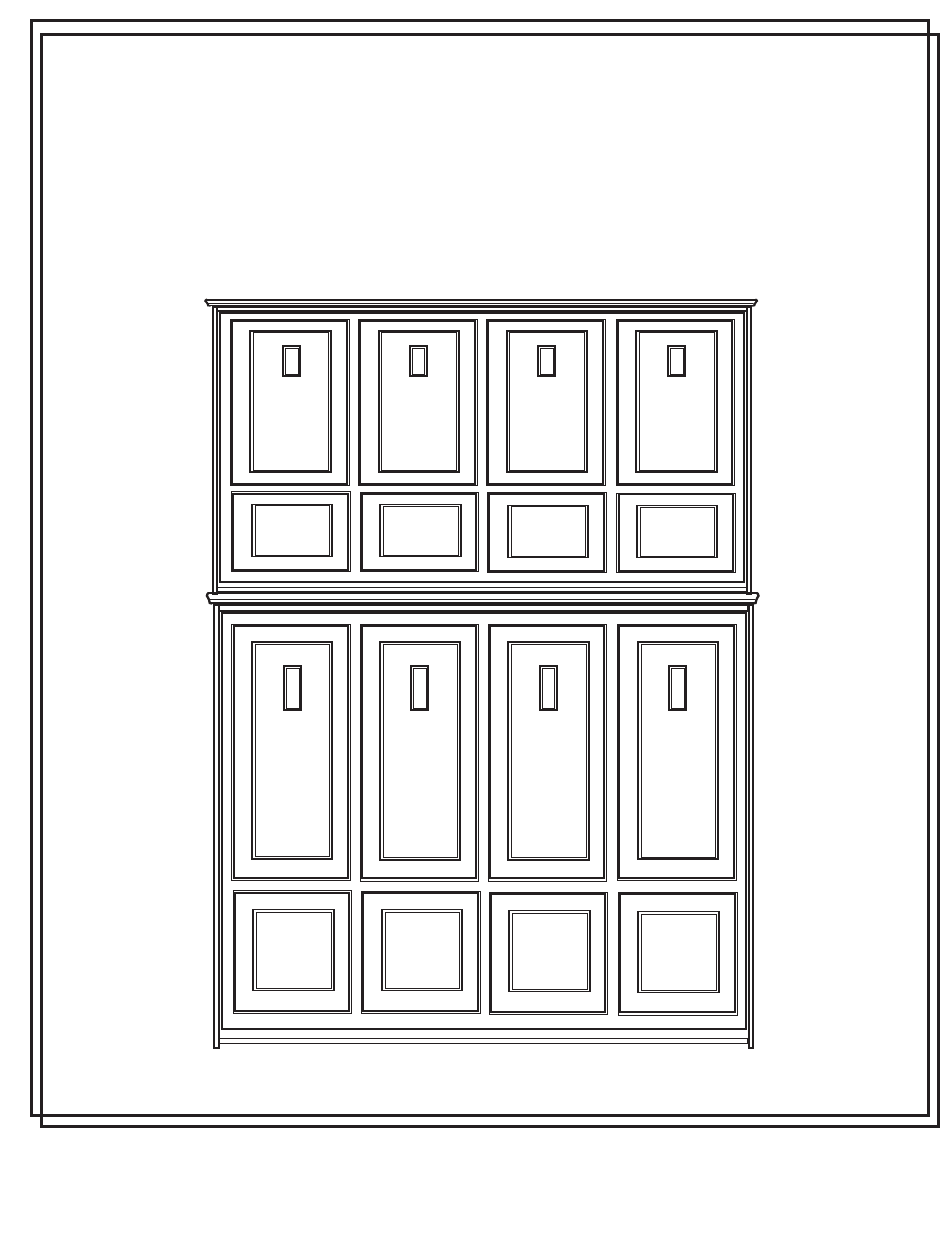

WILDING WALLBEDS
INSTALLATION INSTRUCTION
WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN POWERFUL LIFTING COMPONENTS.
FAILURE TO USE AND FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS
COULD RESULT IN SEVERE PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE
CONTACT CUSTOMER SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
Revision 7/18 BK 18-A
Advertisement
Related Manuals for Wilding Wallbeds Brittany
Summary of Contents for Wilding Wallbeds Brittany
- Page 1 WILDING WALLBEDS INSTALLATION INSTRUCTION WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN POWERFUL LIFTING COMPONENTS. FAILURE TO USE AND FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SEVERE PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
-
Page 3: Hardware Supplied
Hardware Supplied TYPE/SIZE 3 1/2” Wood Screw 1 1/2” Wood Screw Tools Needed Tape Measure Small Regular Screw Driver Cordless Screw Driver or Power Drill with Phillips bit Pliers Page 1... - Page 4 Wall Bed Components Page 2...
- Page 5 Step 1: Position Bed Box and Right and Left Side Boards Bed Bottom in your room with the bot- tom of the bed closest to the wall the bed is to be installed against. Side Board Illustration For ease of assembly, familiarize yourself with side board parts below. Base board cut out NO NOTCH ON UPPER BUNK...
- Page 6 Step 4: Attach the lower end of the LIFT PISTON (skinnier end) onto the LOWER ANCHOR PLATE on both sides of the bed box by positioning the sock- et end of the piston directly over the anchor ball on the anchor plates and pushing them on. The piston socket should snap into place over the anchor ball.
- Page 7 Locate the following parts Parts Identification Page 5...
- Page 8 Step 7: With the bed still laying face down the Headboard can be installed. HAVE SOME- ONE HELP WITH THIS STEP. Slide the Headboard between the Side Boards and under the Connecting Bolts then slide the Cam Fittings into the Connecting Bolts and tighten the Cam fittings.
- Page 9 Step 11: Locate the Stretcher Board and slide it between the Side Boards at the bottom of the Wallbed. In- sert the Connecting Bolts into the Cam fittings and tighten them by turning the cam clockwise. Do this procedure by hand DO NOT USE A POWER SCREW DRIVER.
- Page 10 Step 13: Place the Bridge Board on top of the Wall Bed and position it so the front of the Bridge is flush with the front of the Side Boards. Step 14: From the back of the Wall Bed attach the Bridge to the Side Boards using three (on each side) 1 1/2”...
- Page 11 Studs in your wall Step 16: Locate the studs in your wall with a stud finder, then mark them lightly with a pencil just above the Anchor Board located at the back of the Bridge Board. (see illustration 8) You should find at least 3 studs for anchoring the bed to the wall.
- Page 12 Placing upper bunk in place NOTE: EXTREMELY HEAVY LIFTING! 5 PEOPLE WILL BE REQUIRED Step 19: Placing the upper bunk in place will require at least 5 lifting persons. Arrange 2 people on the left and 2 on the right and one person in front to prevent the upper bunk from tipping forward during the lifting...
- Page 13 Studs in your wall Step 20: Locate the studs in your wall with a stud finder, then mark them lightly with a pencil just above the Anchor Board located at the back of the Bridge Board. (see illus- tration 8) You should find at least 3 studs for anchoring the bed to the wall.
- Page 14 THE UPPER BUNK MUST BE ATTACHED TO THE STUDS IN YOUR WALL AS PER THE PREVIOUS STEP PRIOR TO PROCEEDING TO THE NEXT STEP! Step 22: Open the upper bunk and attach the upper bunk to the lower bunk using 1 1/4” screws through the corner blocks on the top of the lower bunk’s bridge board as illus-...
- Page 15 Trim board profiles Center mold (small “L” brackets attached) Lower base mold (small “L” brackets attached) Step 23:With the upper bed opened slightly as illustrated place the CENTER MOLD between and flush with the side boards and on top of the lower beds bridge board.
- Page 16 Step 24: Position the upper bunk guardrails on the INSIDE of the mat- tress box and attach it to the mattress box using the hardware provided. WARNING!! UPPER BUNK MUST HAVE GUARDRAILS PERMANENTLY IN- STALLED. FAILURE TO INSTALL AND USE GUARDRAILS COULD RESULT IN A SERIOUS FALL.
