Wilding Wallbeds Brittany Installation Instructions Manual
Bunk bed
Hide thumbs
Also See for Brittany:
- Installation booklet (14 pages) ,
- Installation instructions manual (17 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Wilding Wallbeds Brittany
Summary of Contents for Wilding Wallbeds Brittany

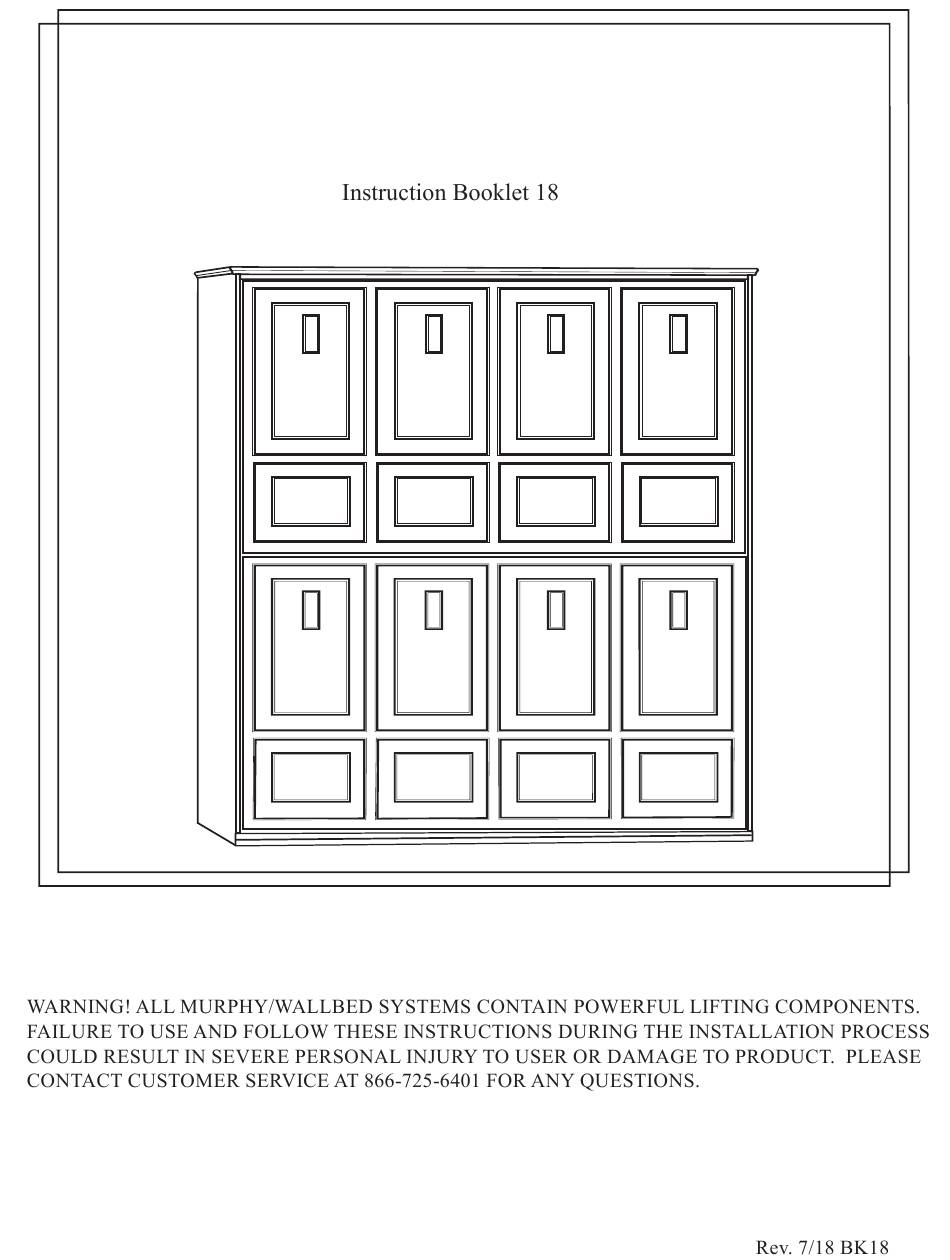

- Page 1 WILDING WALLBEDS BUNK BED INSTALLATION INSTRUCTIONS...
-
Page 2: Hardware Supplied
Hardware Supplied Page 1... - Page 3 Bunk beds Components Step: 1 Remove the four bed stops (2 from each side board). They will be re-attached Remove in a later step. Right Side Board shown...
- Page 4 Step 3: With a pair of pliers, or a small regular screw driver, remove the E-clips from pivot posts on the side boards. Leave the white nylon spacers in place on the pivot posts. Step 4: Slide the side board pivot posts through the pivot holes in the bed box as shown.
- Page 7 Step:11 Locate the lower stretcher board and separate the Base Mold stretcher and base mold by removing the screws from the stretcher LEAVE THE “L” BRACKETS ATTACHED TO THE BASE MOLD. Lower Stretcher Board NOTE: Chalet and Silhouette models have no Base Mold.
- Page 8 Step 12: Slide the lower stretcher board between the side boards at the bottom of the bunk bed unit. Insert the connecting bolts into the cam fittings and tighten them by turning the cam clockwise. Do this procedure by hand DO NOT USE A POWER SCREW DRIVER.
- Page 10 Step 18: From the back of the bunk bed attach the bridge to the side boards using three (on each side) 1 1/2” screws. Place the screws through the holes provided in the corner blocks on the bridge board and drive them into the side boards.
- Page 11 Step 19: Slide the bunk beds against the Studs in your wall wall into the position where it will be installed. Standing on a ladder in front of the beds, locate the studs in your wall with a stud finder, then mark them with a pencil just above the anchor board located at the back of the bridge board.
- Page 12 Step 21: Replace the bed bumpers that were removed in an earlier step. Re-attach the solid wood base mold with small “L” brackets attached to the back. (Chalet and Silhouette style beds do not have base mold). Position the base mold at the bot- tom of the bunk bed and centered.
