Style:
Remington
Size:
Queen, Full, or Twin
Depth:
Deep
Side Mount with 13" Legs
Type:
WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE
AND FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN
SEVERE PERSONAL INJURY OR DEATH TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT
CUSTOMER SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
27
Revision 1.23
Advertisement
Related Manuals for Wilding Wallbeds Remington Queen
Summary of Contents for Wilding Wallbeds Remington Queen

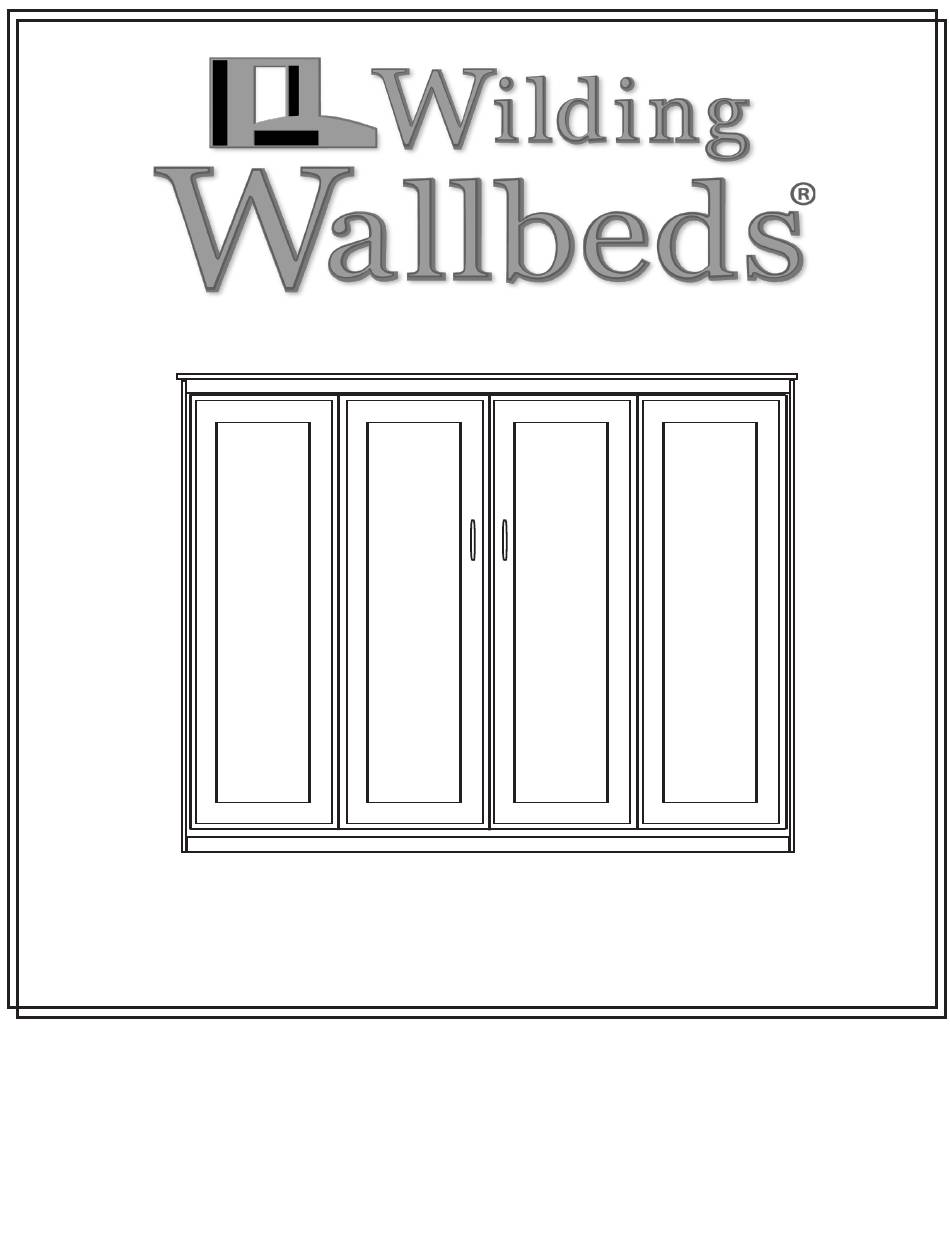

- Page 1 Style: Remington Size: Queen, Full, or Twin Depth: Deep Side Mount with 13” Legs Type: WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
- Page 2 Page intentionally left blank...
-
Page 3: Tools Needed
Tools Needed Ratchet 13mm Socket 11mm Socket Step Ladder 8mm Socket Phillips screwdriver 13 mm open end wrench Large regular screwdriver STANLEY Studsensor Cordless screw driver Tape measure With Phillips bit Stud finder... -
Page 4: Hardware Page
Hardware Page Pack 3 Pack 4 Other Hardware Pack 2 (From Intall Envelope) Item Item Item Item (Extra) Star Washer 5/16’’ Nylock Cam Fitting 10-24 Black Hex Nut Nylock Nut Square Tip Bit 1/4’’ x 1 1/2’’ Hex Head Bolt 5/16’’... - Page 5 19 7/8” 19 7/8” From Box labeled SBLM Step 1: Locate the left and right Side Boards then from the small square cardboard box labelled SBLM locate the two Lift Mechanisms, hardware Finished edge bags, and springs. Lift Mechanisms Cut out for room base molding Bag w/Springs Left Side Board...
- Page 6 The required number of springs in the Lift Mechanisms varies with the different weights of Queen mattresses. If you purchased your mattress with your bed from Wilding Wallbeds refer to the Full/Double chart to the right. This will also be a good reference point for mattresses not purchased with your Wall bed.
- Page 7 Hardware needed for next step: X 20 Connecting Bolt (From Install Envelope) Step 4: Lay the right and left Side Boards down as illustrated and screw the Connecting Bolts into the holes provided as illustrated. LEFT RIGHT Note: Screw the Connecting Bolts down until the collar of the Connecting Bolt is seated firmly against the surface of the wood panel.
- Page 8 Step 5 A: Locate the Front Stretcher and Base and remove the three wing nuts and separate the two pieces. Note: Thread the Wing nuts back onto the base mold to avoid misplacing them. Base Front Stretcher Hardware needed for next step: Connecting Bolt (From Install Envelope) Step 5 B:...
- Page 9 Step 5: Two person steps: Assemble the Bed Cabinet face down with the bottom of the Bed Cabinet nearer the wall to which it will be installed. IMPORTANT! Tighten the cam fittings with a hand screw driver by turning the Phillips head clockwise 1/2 turn to tight.
- Page 10 Hardware needed for next step X 11 Connecting Bolt (From Install Envelope) Step 7: Locate the Bridge Board and Insert 11 Connecting Bolts into the holes provided. Solid Wood Anchor support Bridge Board Receives 11 Connecting Bolts Step 8: Position the Bridge Board as illus- trated below.
- Page 11 Step 9: Locate the Front Bridge Support boards (two narrow pieces of wood connected together) and insert it between the Side Boards and on to the Connecting Bolts. Tighten all Cam Fittings.
- Page 12 WARNING! THE NEXT STEP MAY REQUIRE PROFESSIONAL HELP IF YOUR WALLS ARE NOT TRADITIONAL WOOD FRAMING, YOU MAY NEED TO HIRE A HANDYMAN OR CONTRACTOR TO HELP IN ANCHORING THE BED TO YOUR WALL. FAILURE TO PROPERLY AN- CHOR CABINET COULD CAUSE SEVERE PERSONAL INJURY OR DEATH. CALL TECHNICAL SUPPORT AT 866-725-6401 IF YOU HAVE ANY QUESTIONS.
- Page 13 Important note: It is critical to orient the Bed Face panels and the Mattress Rails in the next 5 steps correctly. All of the render- ings (drawings) in the next 5 steps assume that you are looking away from the wall you just installed the Bed Cabinet against in the previous step.
- Page 14 Hardware needed for next 2 steps from Pack #3 X 14 1/2” x 3/4” 10-24 x 1/2’’ Black 10-24 Black 10-24 x 1 1/4’’ Black Black Barrel Machine Screw Nylock Nut 4 hole Corner Bracket Machine Screw (Leg Stop) Panel Saver (From rails box) Step 13: From hardware pack 3 locate the hardware shown above.
- Page 15 Hardware and parts needed for next steps X Approx. 118 5/8” Pan head screw (Hardware pack #7) Step 16: Center the assembled Frame side to side on the Face Panels (leaving approximately 1” space on either side) now position the Inner Rail 1/8” from the end of the Face Panels. Once the frame is positioned correctly and the panels and rails are even and square to each other use 2 - 5/8 ”screws in each corner, as well as one in each panel at the Inner and Outer rail to hold assembly in place.
- Page 16 Hardware and parts needed for next steps 1 1/4” Square drive Wood screw 5/8” Pan head screw (Hardware pack #7) Square Tip Bit Wood Mattress Metal Center Stiffeners (Provided in Install Envelope) Support (From rails box) Step 17: Position the Wood Mattress Supports evenly over the Face Panel seams allowing their ends to over lap the Outer and Inner Rails.
- Page 17 Hardware and parts needed for next steps 3/4” Washer (pack #5) Buckle Strap (pack #5) Step 19 ; Attach the Buckle Strap used for holding the mattress in place when the bed is closed. First remove one of the 5/8” Pan head screws that attaches the rail to the Face Panels on each Side Rail 5/8”...
- Page 18 Hardware needed for next step from hardware pack #2 5/16” x 1” 5/16” Nylock Nut 5/16” x 1” Allen Head Bolt Hex Head Bolt Step 20: As illustrated below, insert the Allen Head Bolt through bolt hole # 1 and tighten it down securely using a Nylock Nut.
- Page 19 WARNING: There is tremendous force involved in the next step, do not place hands be- tween the front of the Side Boards and the Tension Arms as you set the Mechanism. Step 23: Brace one foot against Black Metal Tube the front edge of the Side Board and using the 14.5”...
- Page 20 IMPORTANT! As instructed in a previous step, Bolt #3 should be loose enough to slip into the notch at the end of the Lift Arm See illustration below. #3 Bolt head Step 25: Stand the Bed face unit up on its Inner Side Rail. Now with you and your assistant on either side of Tension Arm the Bed unit lift until the # 3 bolt on...
- Page 21 Hardware needed for next step from hardware pack #2 5/16 ”Nylock Nut 5/16” x 1” Hex Head Bolt Warning very important step! Step 26: Insert a 5/16” x 1” Hex Head bolt through hole #2 and tighten Left side board a 5/16”...
- Page 22 Step 28: When the bed is closed check to see if the gap on either side is the same. If it looks right skip this step. If the gap is not right, meaning that the Bed Face is too close to the Side Board or even touching it at the top on one side it will need to be ad- justed.
