Page 1

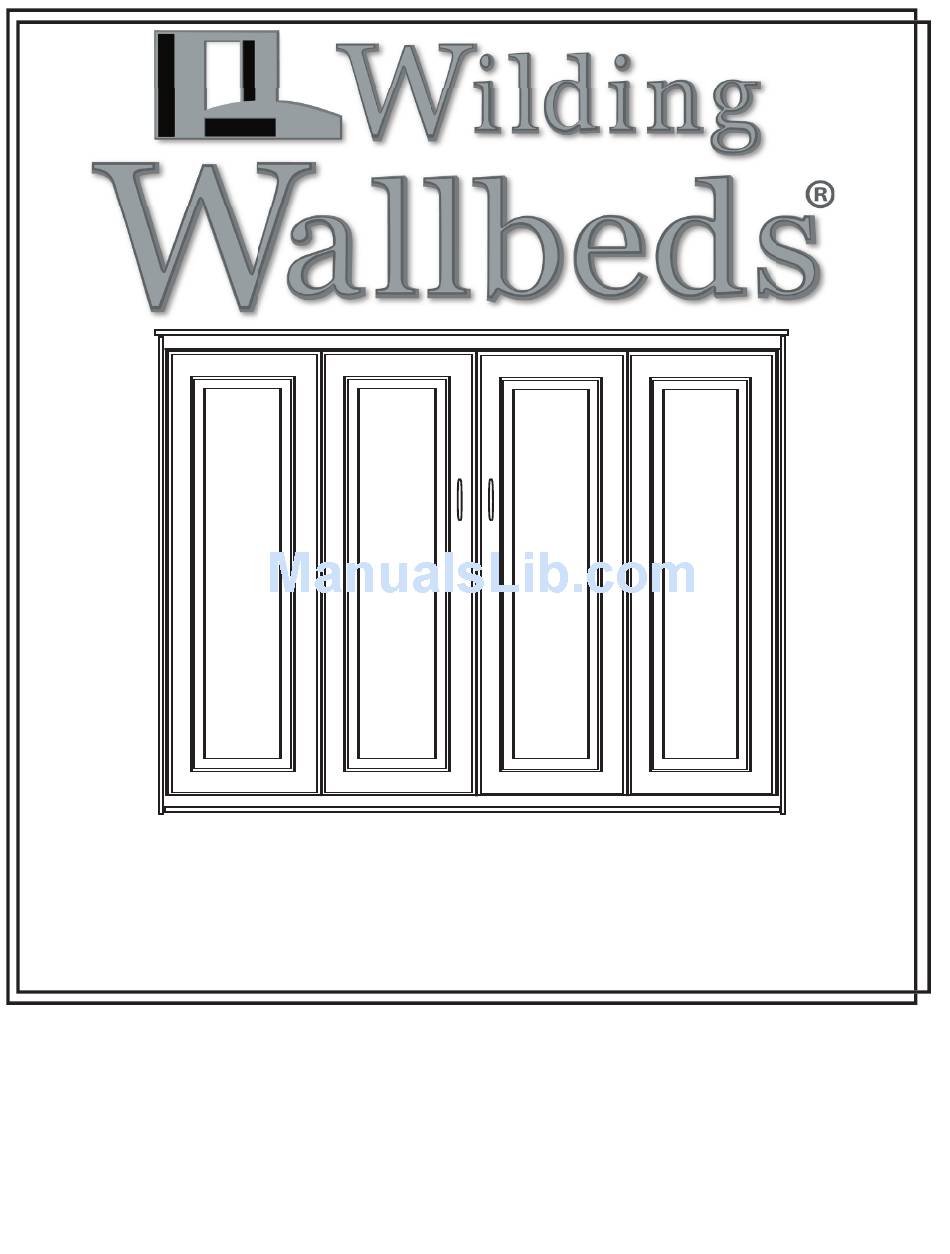

Side Mount Model: Sierra INSTRUCTION BOOKLET #35 With Storage Head Board WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SEVERE PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT.
Page 5
Step 1: Locate the left and right Side Boards and then from the square white box locate the two Lift Mechanisms, hardware bags and springs. Left Side Board Right Side Board...
Page 6
Hardware needed for next 2 steps from Bag #7 5/16” x 1 1/4” Flathead 5/16” Plain Hex Nut Slot Machine Screw Hexagon Cam Washer 7/8” Washer Step 3: Install the Lift Mechanism by inserting a 5/16” x 1 1/4” Flathead Machine Screw through holes “C” and “D”...
Page 7
Solid Wood Anchor support Step 5: Locate the Bridge Board and Insert 11 Connecting Bolts into the holes provided. Screw the bolts in until they tight against the bed part. Page 3...
Page 9
CAM FITTINGS ON BOTTOM Step 10: Assemble the Bed Cabinet face down with the bottom of the bed nearer the wall to which it will be installed by connect- ing Bridge Board, Head Board, and the two Stretchers as illustrated. NOTE: The front stretcher is posi- tioned so the cam fittings are on the BOTTOM...
Page 10
Step 13: Stand the bed cabinet up and leave 2 feet between cabinet and the wall so you have space to work behind the bed...
Page 11
Step 15: Locate the Front Bridge Support and insert it between the Side Boards and on to the Connecting bolts. Tighten all Cam Fittings. Part and hardware needed for next step 3/4’’ Pan head Screw Locate the metal Bridge Stiffener from the long white cardboard box.
Page 12
Step 16: Remove the double stick tape cover and pass the Bridge Stiffener between the Side Boards and up behind the Front Bridge Support. The double stick tape should stick to the bottom of the Bridge Board. Anchor the Stiffener to the Front Bridge Support and the Bridge Board using 3/4”...
Page 13
WARNING! THE NEXT STEP MAY REQUIRE PROFESSIONAL HELP. IF YOUR WALLS ARE NOT TRADITIONAL WOOD FRAMING, YOU MAY NEED TO HIRE A HANDY MAN OR CONTRACTOR TO HELP IN ANCHORING THE BED TO YOUR WALL. FAILURE TO PROP- ERLY ANCHOR CABINET COULD CAUSE SEVERE PERSONAL INJURY. CALL TECHNICAL SUP- PORT AT 866-725-6401 IF YOU HAVE ANY QUESTIONS.
Page 14
Important note: It is critical to orient the bed face panels and bed rails in the next 5 steps correctly. All of the render- ings (drawings) in the next 5 steps assume that you are looking away from the wall you just installed the cabinet against in the previous step.
Page 15
Step 21: From hardware bag 8 locate the hardware shown above. Finger tighten the hardware as shown in illustration 7 attaching two of the 4 hole corner brackets on the Head/Foot rail end of the mattress frame. Note the lower hole on each side rail uses the Leg Stop with the longer screw (3/16” x 1 1/4”).
Page 16
Hardware and parts needed for next steps 3/4” Washer (Hardware bag #8) Velcro Strap...
Page 18
IMPORTANT! As instructed in step 28, Bolt #3 should be loose enough to slip into the notch at the end of the Tension Arm See illustration below. #3 Bolt head Step 32: Stand the Bed face unit up on its Lower Rail. Now with you and your assistant on either side of the Tension Arm Bed unit lift until the # 3 bolt on the...
Page 19
Step 33: Insert a 5/16” X 3/4” Hex bolt through hole #2 and tighten a 5/16” Nylock nut onto the bolt. Now tighten the nut and bolt in hole #3. Repeat step 33 on the other side of the bed unit.
Page 20
Step 35: When the bed is closed check to see if the gap on either side is the same. If it looks right skip this step. If the gap is not right, meaning that the Bed Box is too close to the side board or even touching it at the top on one side it will need to be adjusted.
