Wilding Wallbeds Brittany Installation Booklet
Bunk bed with storage headboard
Hide thumbs
Also See for Brittany:
- Installation instructions manual (12 pages) ,
- Installation instructions manual (17 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Wilding Wallbeds Brittany
Summary of Contents for Wilding Wallbeds Brittany

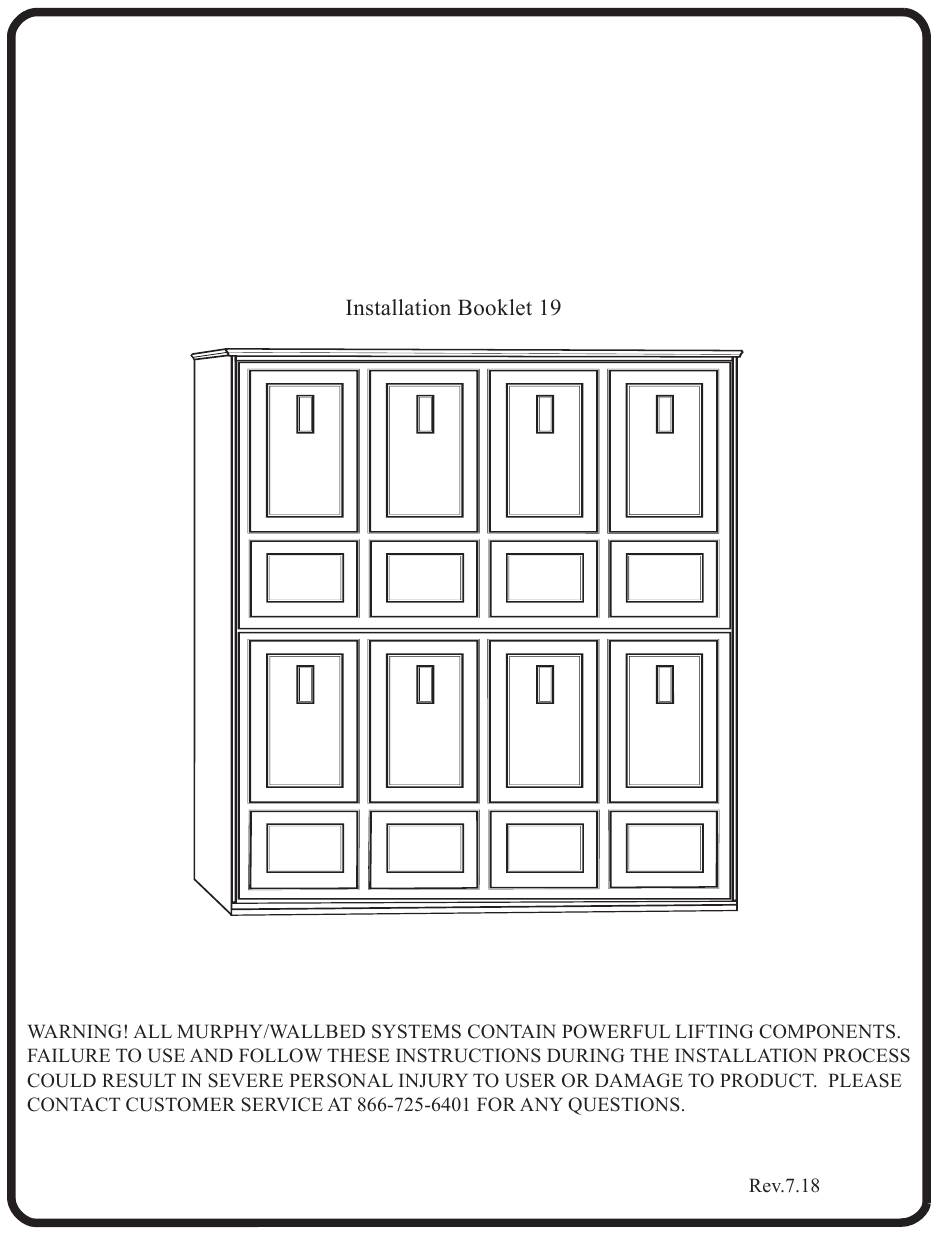

- Page 1 WILDING WALLBEDS BUNK BED INSTALLATION INSTRUCTIONS With Storage Headboard...
-
Page 3: Hardware Supplied
Hardware Supplied Page 1... - Page 4 Remove Step: 1 Remove the four bed stops (2 from each side board). They will be re-attached in a later step. Right Side Board shown Step 2: Position LOWER BUNK* ONLY and the right and left side boards as illustrated below. Note the lower bunk is closer to the installation wall and positioned in the lower half of the side boards.
- Page 6 Step 7: Remove E-clips from up- per bunk pivots post. Spread the side boards and gently maneuver the upper bunk into place then replace the E- clips...
- Page 7 Step:11 Locate the lower stretcher board and Base Mold separate the stretcher and base mold by remov- ing the screws from the stretcher LEAVE THE “L” BRACKETS ATTACHED TO THE BASE Lower Stretcher Board MOLD. NOTE: Chalet model bunk bed has no base mold.
- Page 8 Step 12: Slide the lower stretcher board between the side boards at the bottom of the bunk beds unit. Insert the connecting bolts into the cam fittings and tighten them by turning the cam clock- wise. Do this procedure by hand DO NOT USE A POWER SCREW DRIVER.
- Page 9 LOWER headboard...
- Page 10 Step 16: Install the lower head- board bottoms as illustrated. Make sure to orient the piece as shown with the Cam Fittings down. Page 8...
- Page 11 Step:18 This step will require at least 2 people. From the top of the bunk bed lift it up to the standing position. Make sure to support the UPPER bunk and side boards together as you lift. The LOWER bunk MAY open Lift here Lift here as you lift the bunk bed to the...
- Page 12 Step 20: From the back of the bunk bed attach the bridge to the side boards using three (on each side) 1 1/2” screws. Place the screws through the holes provided in the corner blocks on the bridge board and drive them into the side boards.
- Page 13 Step 21: Replace the bed bumpers that were removed in an earlier step. Re-attach the solid wood base mold with small “L” brackets attached to the back. (Chalet and Silhouette style beds do not have base mold). Position the base mold at the bot- tom of the bunk bed and centered.
