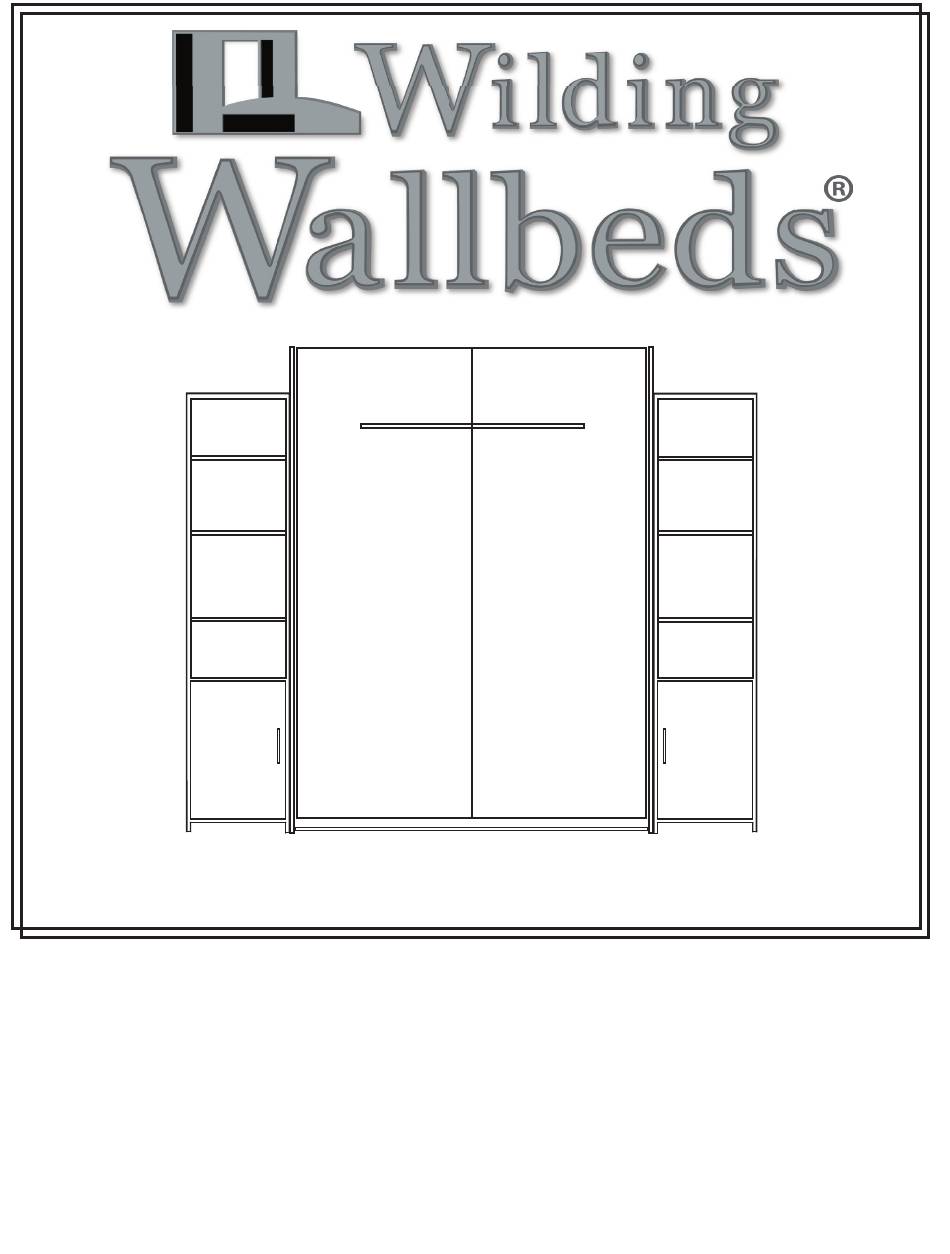

Bed Style: Monaco
INSTRUCTION BOOKLET #C190
WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND
FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SE-
VERE PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER
SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
Revision 6/16 C190

Advertisement

loading
Need help?

Need help?

Do you have a question about the Monaco and is the answer not in the manual?

Questions and answers

Related Manuals for Wilding Wallbeds Monaco

Summary of Contents for Wilding Wallbeds Monaco

  • Page 1 Bed Style: Monaco INSTRUCTION BOOKLET #C190 WARNING! ALL MURPHY/WALLBED SYSTEMS CONTAIN STORED ENERGY. FAILURE TO USE AND FOLLOW THESE INSTRUCTIONS DURING THE INSTALLATION PROCESS COULD RESULT IN SE- VERE PERSONAL INJURY TO USER OR DAMAGE TO PRODUCT. PLEASE CONTACT CUSTOMER SERVICE AT 866-725-6401 FOR ANY QUESTIONS.
  • Page 3 Studsensor...

  • Page 4: Other Hardware

    Other Hardware Item Connecting Bolts Cam Fitting...
  • Page 5 Step 1: Locate the two Side Boards. If you pur- chased a Queen size bed the Side Boards measure 85.25” long. Full and Twin size Side boards will measure 80.25” long. Then from the small square cardboard box locate the two Lift Mechanisms, hardware bags, and springs.
  • Page 6 Hardware needed for next step from Pack #2 5/16’’ x 1 1/4’’ 5/16’’ Nylock Nut Page 2...
  • Page 7 Step 6: Locate the TWO (2) Stretcher Boards and insert four Cam Fittings into the back of each Stretcher. Press the Cam Fittings in so they are tight against the part. Page 3...
  • Page 8 IMPORTANT! Tighten the cam fittings with a hand screw driver by turning the Phillips head clockwise 1/2 turn to tight. HELPFUL HINT: It is easier to tighten the Cam Fittings if the two bed parts are snug together. Page 4...
  • Page 9 (Light Kit instructions are in the Light Kit box) Step 9: Stand the bed cabinet up against the wall where you intend to have it installed.
  • Page 10 Step 10: : Using a Stud Finder locate and mark the studs in your wall behind the Bed Cabinet. At- Studs in your wall tach “L” brackets to the top, back of the Bed Cabinet using 3/4” Pan Head screws corresponding to where the studs are located in your wall.

  • Page 11: Side Rail

    Step 12: Arrange the Mattress Foot rail Rails on the face panels as shown. HELPFUL HINT: the “Head Rail” refers to the end that is closest to the Bed Cabinet during assembly and Side rail will be where your head is while Side rail sleeping.
  • Page 12 Step 13: From hardware pack 3 locate the hardware shown above. Finger tighten the hardware as shown in illustration 7 connecting the Foot Rail to the Side Rail using the 4 hole corner bracket. Note the lower hole on each Side Rail uses the Leg Stop with the longer screw (1 1/4”...
  • Page 13 Hardware and parts needed for next steps x 160 5/8” Square Pan head screw (Hardware pack #7)
  • Page 14 Hardware and parts needed for next steps 5/8” Square Pan head screw (Hardware pack #7)
  • Page 15 Step 18 ; Attach the Velcro Strap that is used for holding the mattress in place while wall bed is closed. First remove one of the 5/8” Pan head screws that attaches the rail to the Face Panels on each Side Rail of the frame at about 18” from the Foot Rail of the frame.
  • Page 16 Step 19: As illustrated below, insert the Allen Head Bolt through bolt hole # 1 and tighten it down securely using a Nylock Nut. Now insert a 5/16” x 1” Hex Head bolt through hole # 3 and thread the Nylock nut ONLY UNTIL THE NUT IS FLUSH WITH THE END OF THE BOLT.
  • Page 17 IF YOU PURCHASED LIGHTS FOR YOUR WALLBED YOU MUST STOP RETURN TO THE LIGHT KIT INSTRUCTIONS STEP 6 AND INSTALL THE SAFETY CUT OFF DEVICE BEFORE MOVING ON. IMPORTANT! As instructed in step 19, Bolt #3 should be loose enough to slip into the notch at the end of the Tension Arm See illustration below.
  • Page 18 Step 24: Insert a 5/16” x 1” Hex Head bolt through hole #2 and tighten a 5/16” Nylock nut onto the bolt. Now tighten the nut and bolt in hole #3. Repeat step on the other side of the bed unit.
  • Page 19 Step 26: When the bed is closed check to see if the gap on either side is the same. If it looks right skip this step. If the gap is not right, meaning that the Bed Box is too close to the side board or even touching it at the top on one side it will need to be adjusted.
