Si041264EC

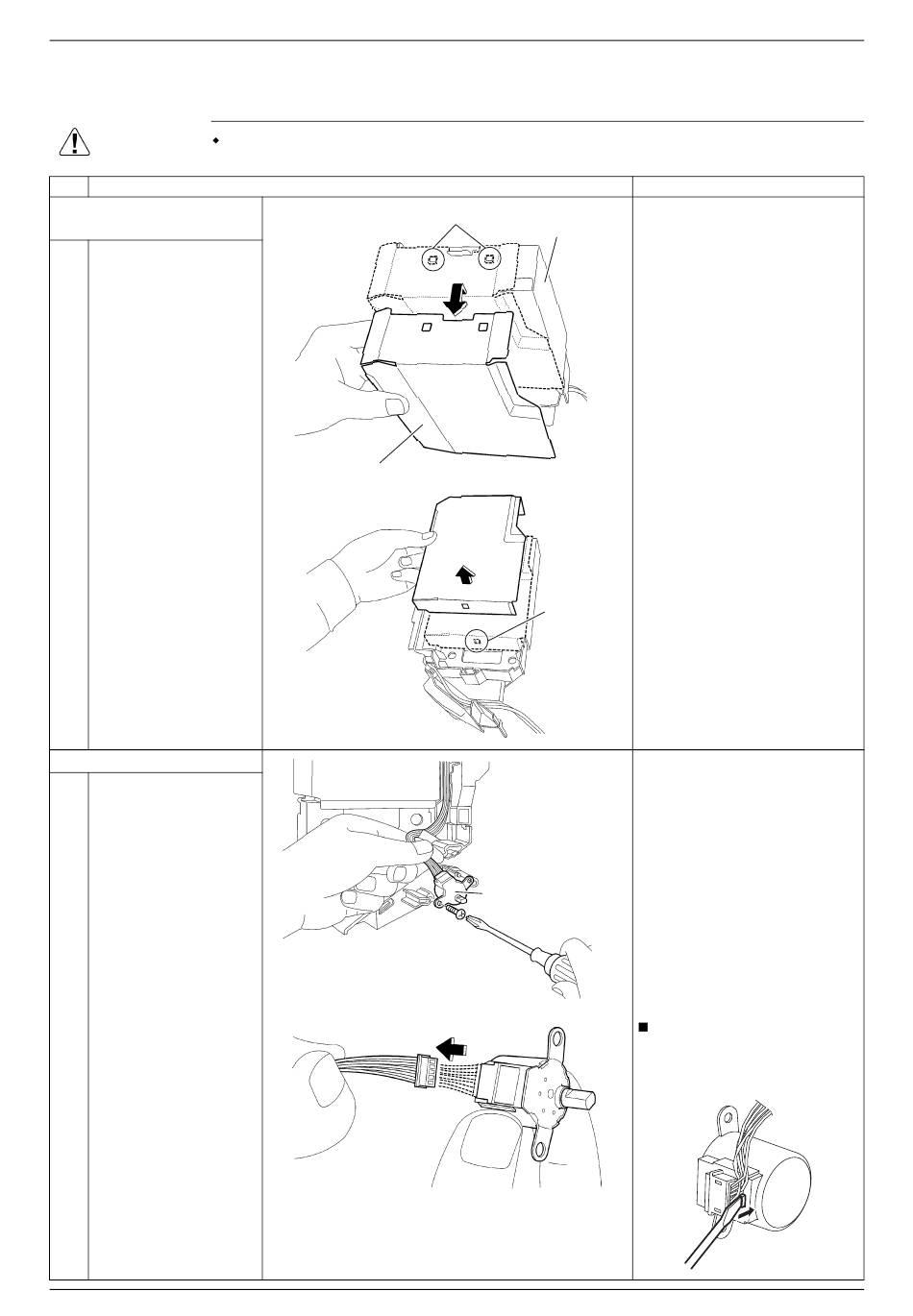

6. Swing Motor / PCBs

Warning
Step
1. Remove the shield plate
(1).
1 Unfasten the 2 hooks at
the top of the shield
plate (1).
2 Unfasten the hook at
the bottom and remove
the shield plate (1).
2. Remove the swing motor.
1 Remove the screw of
the swing motor.
2 Disconnect the
connector.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Shield plate (1)
Hook
Electrical box
(R23306)
Hook
(R16650)
Swing motor
(R11650)
(R8037)
Swing Motor / PCBs
Points
The connector of the swing
motor has a hook.
Press the hook with a flat
screwdriver to unfasten it.
(R14847)
9
