Si041264EC

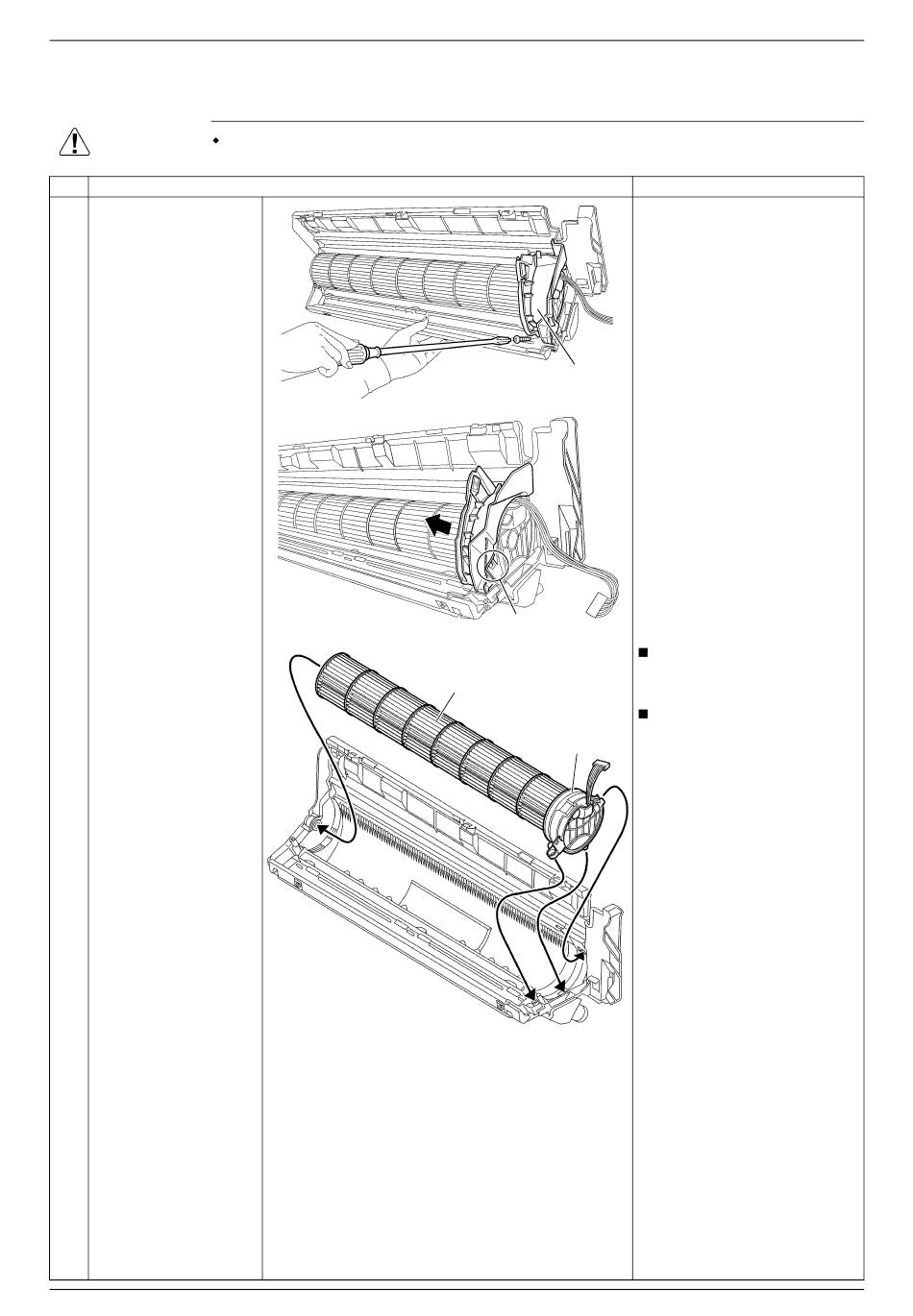

8. Fan Rotor / Fan Motor

Warning
Step
1 Remove the screw.
2 Unfasten the hook and
remove the right side
plate.
3 Remove the fan rotor
and the fan motor.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Right side plate
(R17337)
Hook
(R20685)
Fan rotor
Fan motor
(R8047)
Fan Rotor / Fan Motor
Points
The fan motor has 3
projections on the right side.
The fan rotor has a rotating
shaft on the left side.
15
