Front Panel

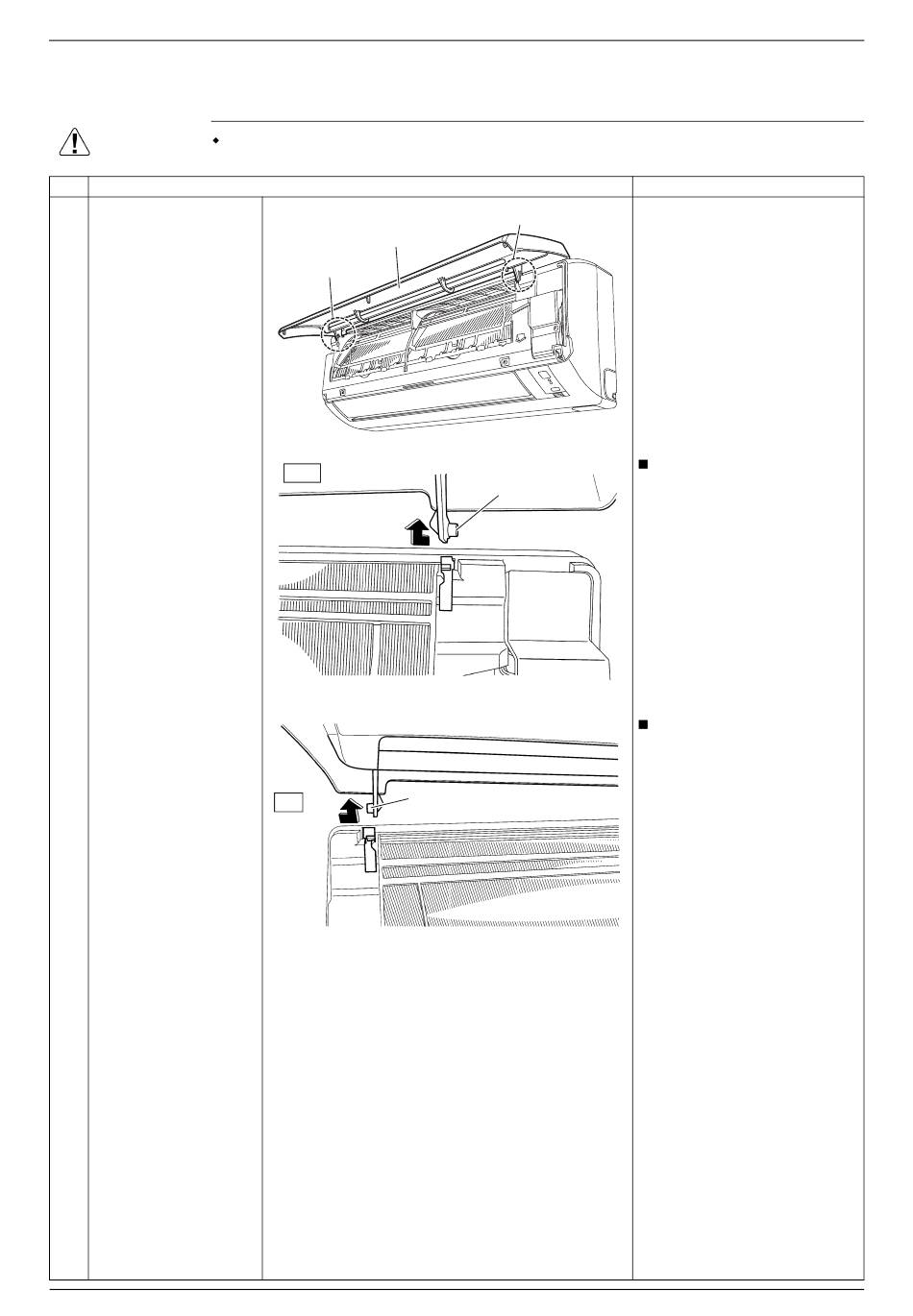

3. Front Panel
Warning
Step
1 Open the front panel.
2 Release the right rotary
shaft.
3 Release the left rotary
shaft and remove the
front panel.
4
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Front panel
Left side
Right
Left
Right side
(R11627)
Rotary shaft
(R11628)
Rotary shaft
(R11629)
Si041264EC
Points
The rotary shaft on each
side can be released by
sliding each shaft inward.
When reassembling the front
panel, fit the right and left
rotary shafts one by one into
the grooves and fully push
them in position.
Removal Procedure
