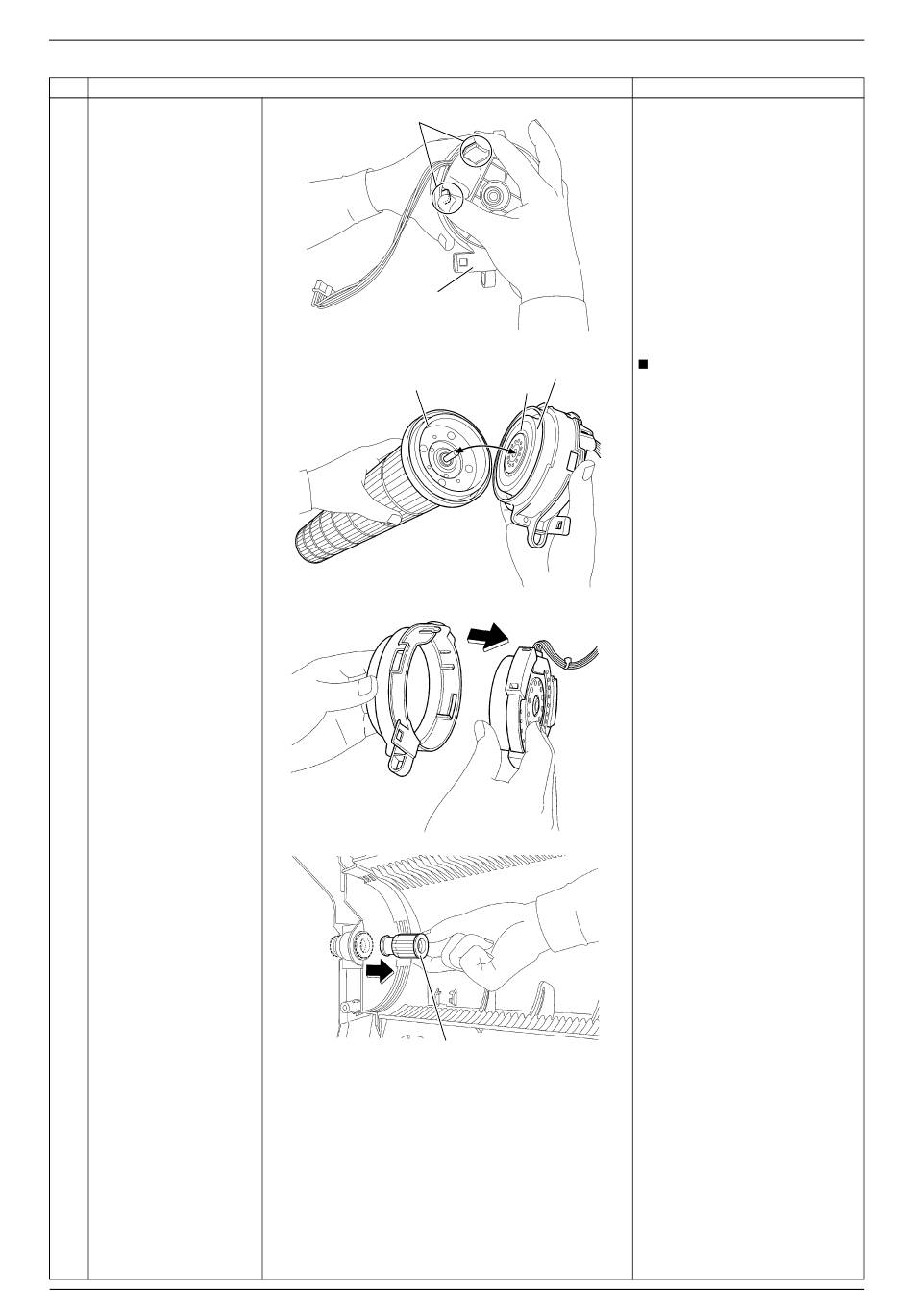

Fan Rotor / Fan Motor
Step
4 Unfasten the 2 hooks of
the motor cover.
5 Pull out the fan motor
from the fan rotor and
remove it.
6 Remove the bearing on
the left side.
16
Procedure
Hook
Motor cover
Magnet
Bearing
(R8051)
The magnet of the fan motor
Fan motor
is attached to the fan rotor.
Coil
Be careful not to attract
metal waste to the magnet.
Keep away from other
materials that can be
affected by magnetic force.
(R8052)
(R8053)
(R18196)
Si041264EC
Points
Removal Procedure
