Electrical Box / Vertical Blades
Step

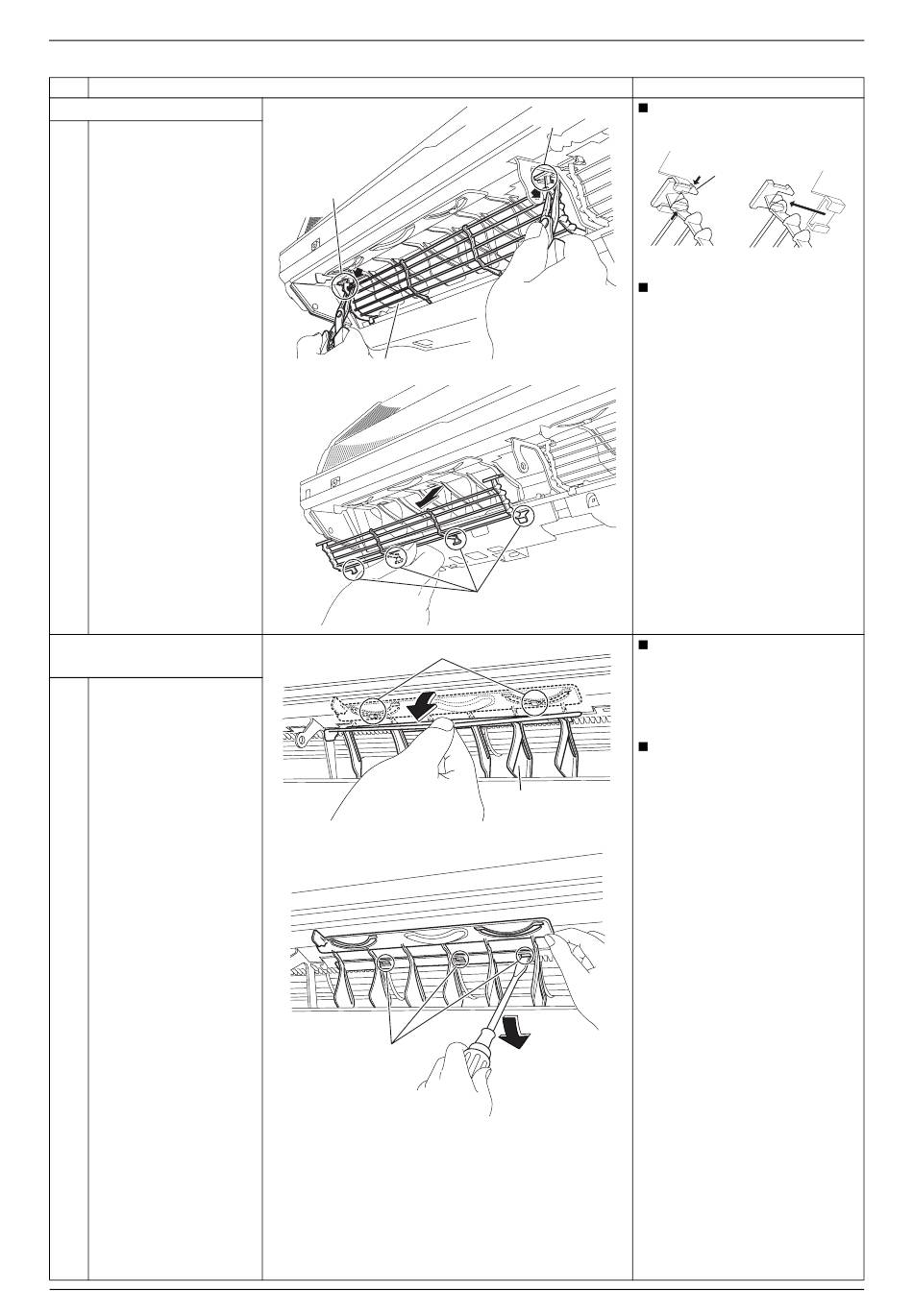

3. Remove the fan guards.
1
Unfasten the right and
left hooks of the fan
guard.
2
Unfasten the 4 hooks at
the bottom and remove
the fan guard.
3
Remove the other fan
guard in the same way.
4. Remove the vertical blade
ASSYs.
1
Unfasten the 2 hooks at
the top.
2
Unfasten the 3 hooks at
the shaft mounting part
by pressing them with a
flat screwdriver.
3
Remove the vertical
blade ASSY.
4
Remove the other
vertical blade ASSY in
the same way.
8
Procedure
Hook
Fan guard
Hook
Hook
Vertical blade ASSY
Hook
Squeeze the edges of the
Hook
hook together to unfasten it.
Some models have no fan
guard.
(R20683)
(R18247)
Each vertical blade ASSY
has 6 fins. It is not possible
to replace the fins
individually.
The vertical blade ASSY is
not marked for difference
between right and left.
(R18194)
(R8022)
Si041264EC
Points
Hook
(R11646)
Removal Procedure
