Air Filters

1. Air Filters
Warning

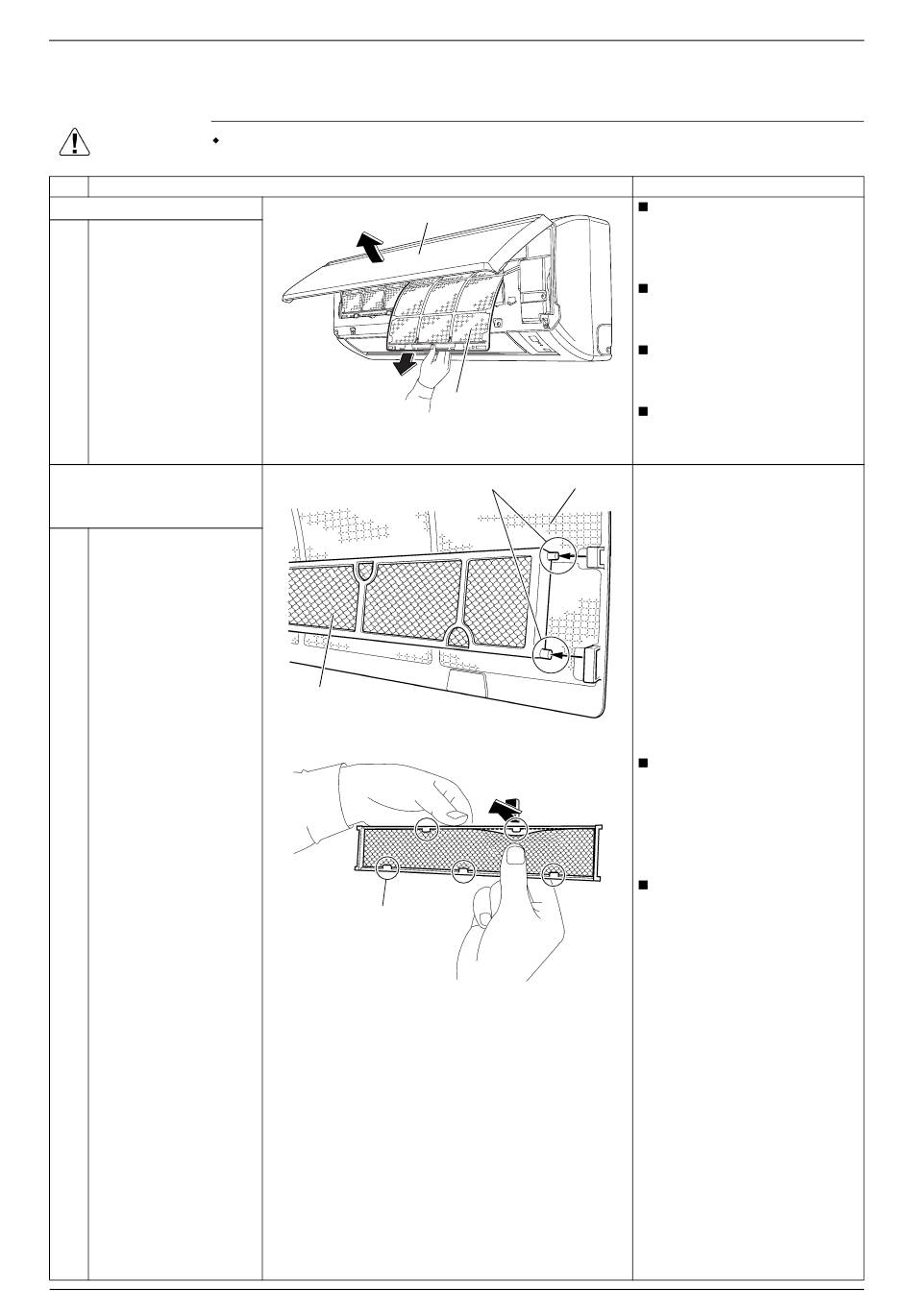

Step
1. Remove the air filters.
1 Open the front panel.
2 Pull out the air filter
downward and remove
it.
2. Remove the Titanium
apatite photocatalytic
air-purifying filters.
1 Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
by unfastening the 2
projections from the
back of the air filter.
2 Unfasten the 5 hooks
and remove the
Titanium apatite
photocatalytic air-
purifying filter from its
frame.
2
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Titanium apatite
photocatalytic
air-purifying filter ASSY
Hook
Front panel
Air filter
(R18236)
Projection Air filter
(R20666)
(R8027)
Si041264EC
Points
The air filter is not marked
for difference between the
right and left sides.
When reassembling, insert
the air filter along the guides.
Insert the air filter with the
"FRONT" mark faced up.
Be sure to fit the 2 bottom
hooks when installing the air
filter.
To prevent damage, do not
remove the Titanium apatite
photocatalytic air-purifying
filter from the frame when
cleaning it.
The Titanium apatite
photocatalytic air-purifying
filter is not marked for
difference between the right
and left sides.
Removal Procedure
