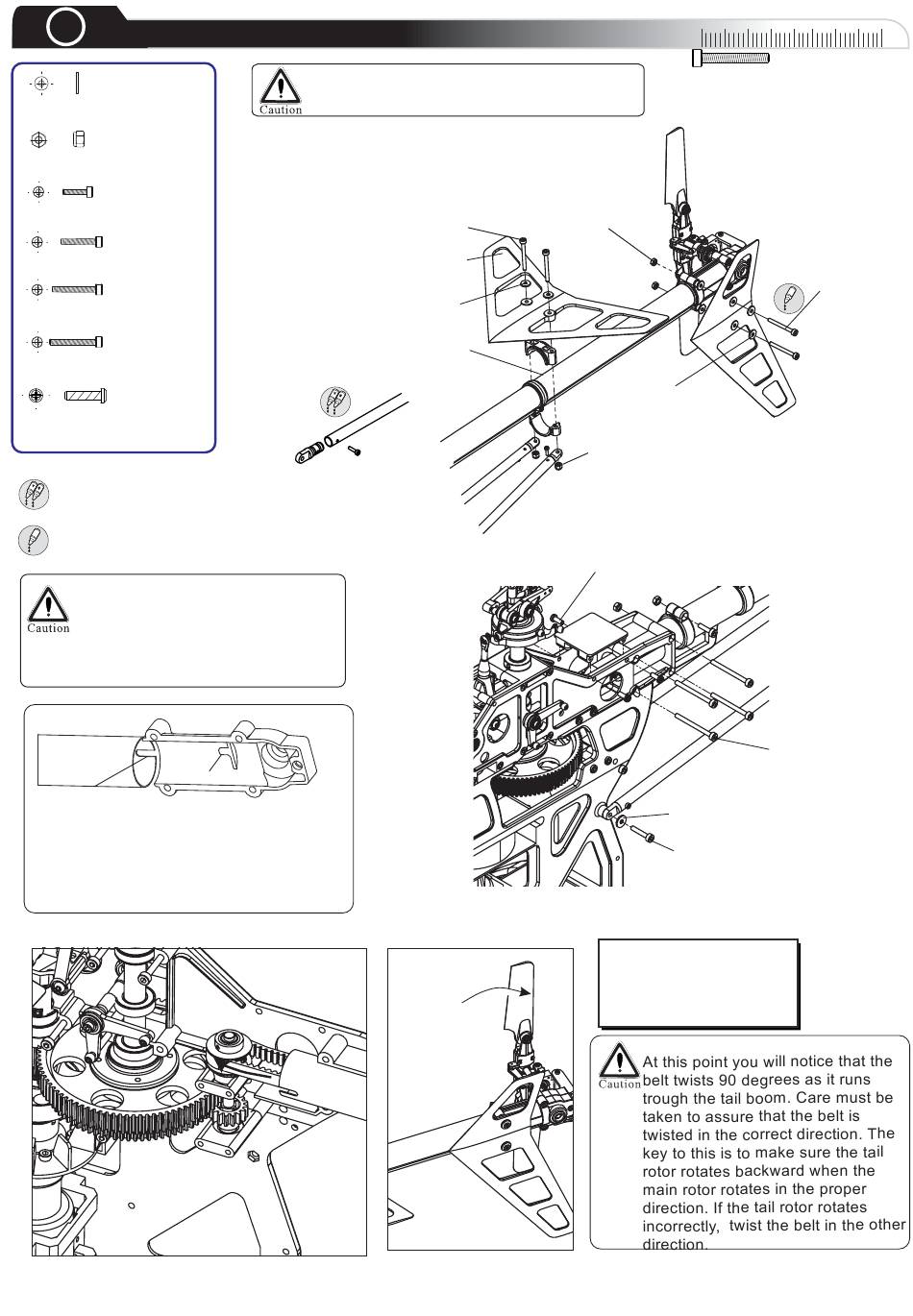

Compass Model Sport X Assembly Manual page 9

6
Tail
M3 Washer x4
M3 Nylon Lock Nut x8
M2.5x6 Cap Head Bolt x2
M3x25 Cap Head Bolt x4
M3x35 Cap Head Bolt x2
M3x40 Cap Head Bolt x4
M2.5 x8 Self Tapping
Bolt X 4
Use AB Glue
Blue Threadlock
Be careful not to over tighten the
Bolts when attaching the Tail Rotor
Blades. The Tail Blades should be
able to move with a slight amount
of resistance within the Tail Blade
Holders.
Gear Case
Tail Boom
Lug
Longer Groove
There are 2 grooves on the Boom.
There is one Lug on the Gear Case.
Line Up the longer groove with the
Lug when assembling.
Crimping Belt damages the Tensile Cords
and will result in premature failure.
M3x30 Cap Head Bolt
Horizontal Fin
M3 Washer
Boom
0
M3 Nylon Nut
M3 Washer
M3 Nylon Nut
See Page Team Tips!
M2.5x8 Self
Tapping Bolt
M3 Washer
M3x35 Cap
Head Bolt
Tip :
Check tail rotor direction.
Top rotor blade moves to
rear
10 30
20 40
M3x30 Cap
Head Bolt
M3x30 Cap
Head Bolt
