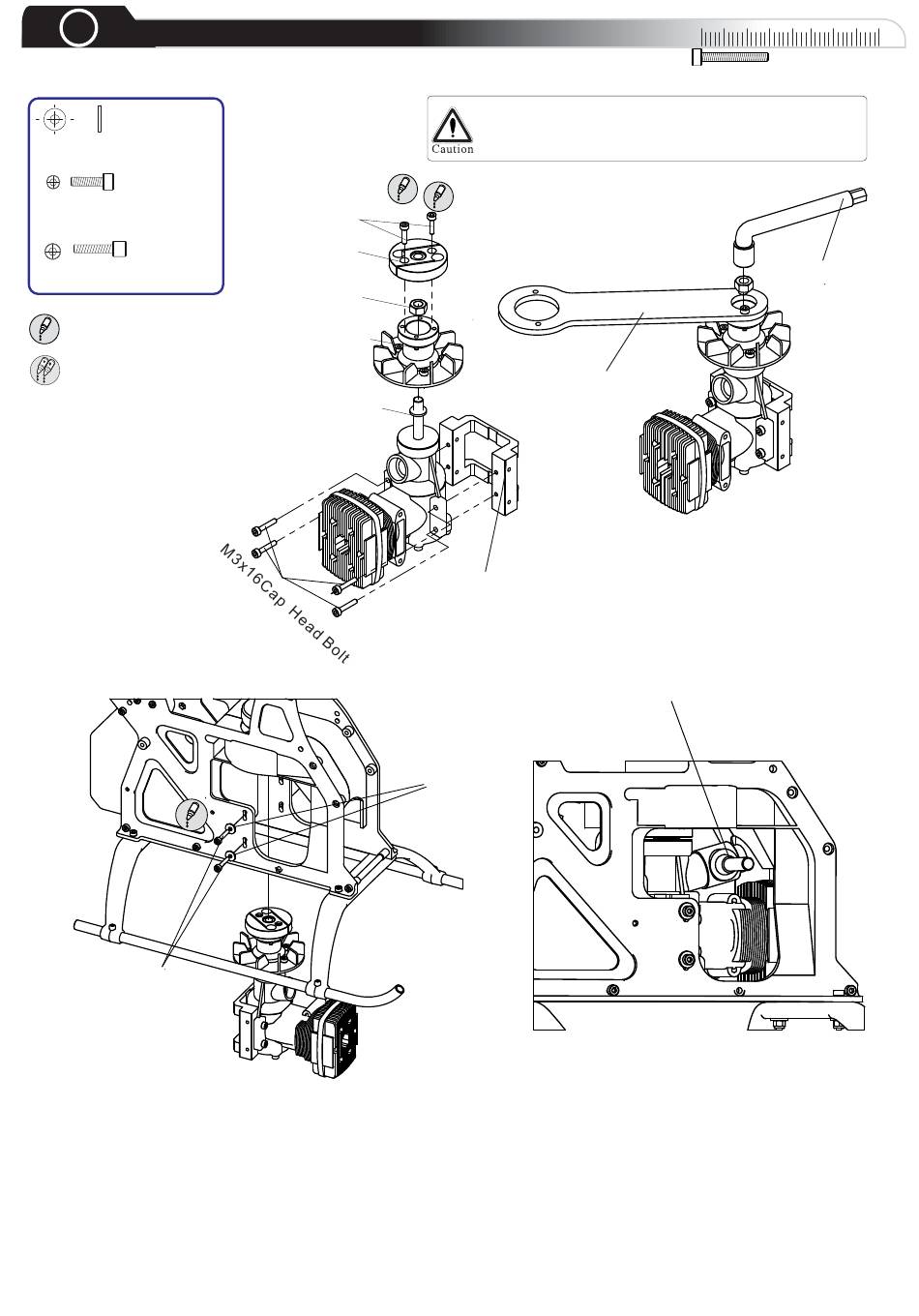

Compass Model Sport X Assembly Manual page 8

5
Engine
M3 Washer x4
M3x12 Cap Head Bolt x2
M3x16 Cap Head Bolt x8
Use Threadlock
Use AB Glue
M3x16 Cap Head
Bolt
Insert the Engine set and fix the Engine Mount with
M3x16 Cap Head Bolt.
M3x12 Cap Head
Bolt
Clutch
Engine Nut
Factory Pre
Assembled
Engine Washer
3mm washer
Note: Apply special engine tool when fixing Fan
Hub on the engine. And make sure Fan Hub Set is
Firmly tightened on the Engine.
05-9001 Engine Tool
Compass Engine Tool is need to tight
the engine on the Fly Wheel
Engine Mount
Carburetor
Finally install the Carburetor.
0
10 20 30 40
Hex Wrench
