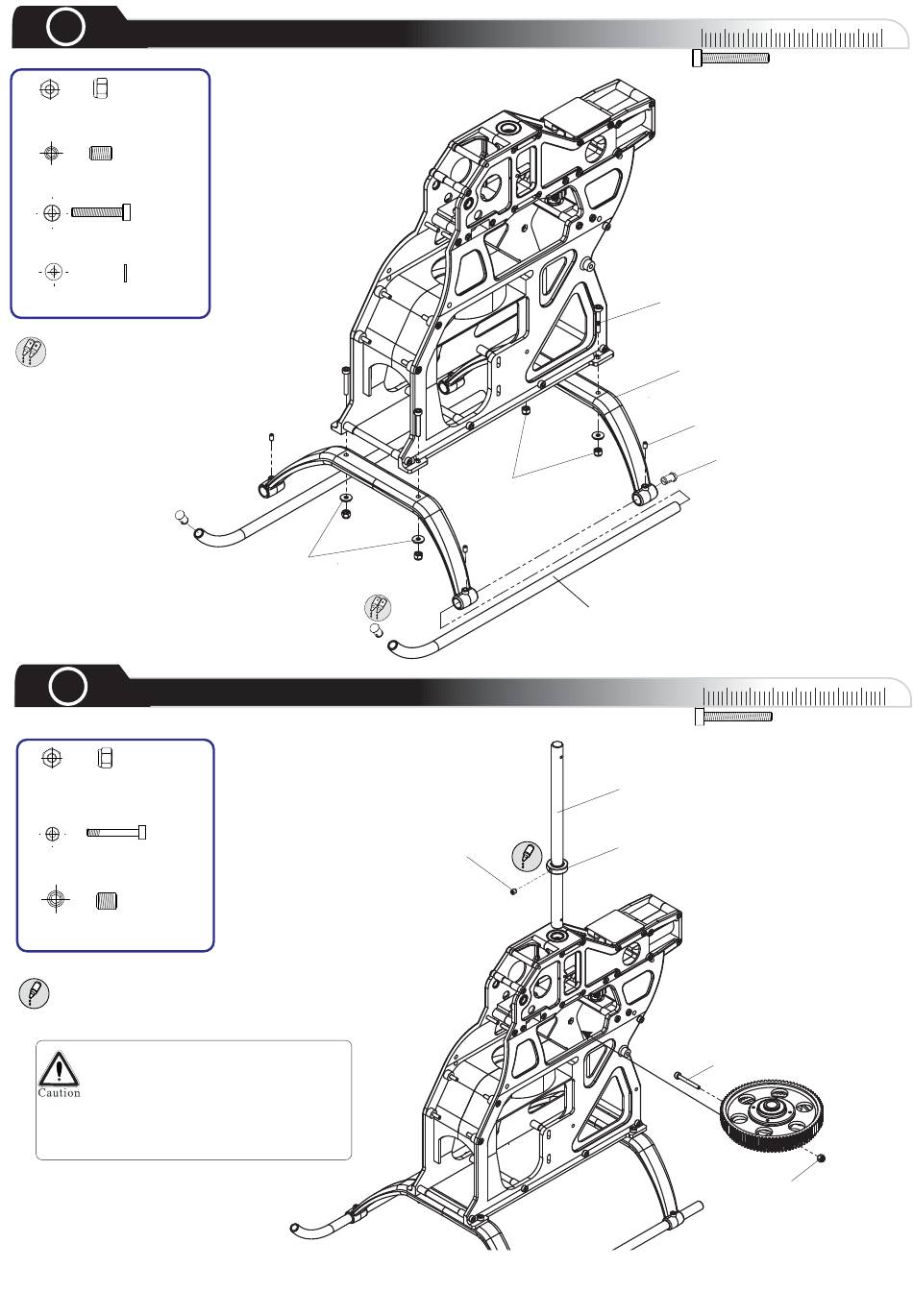

Compass Model Sport X Assembly Manual page 5

1
Landing Gear
M3 Nylon Lock Nut x4
M3x5 Set Screw X 4
M3x18 Cap Head Bolt x4
3mm Washer X 4
Use AB Glue
2
Main Gear
M3 Nylon Lock Nut x1
M3x28 Shanked Bolt x1
M4x4 Set Screw X 1
Use Threadlock
Make sure mast collar is tightened
securely onto the mast. Double-
check to make sure the mast lock
collar is properly seated onto the
mast and main shaft can not move
up or down.
3mm Washer
See Page Team Tips!
M3 Nylon Nut
M4x4 Set Screw
0 10
M3x18 Cap Head Bolt
Struts
M3x5 Set Screw
Skid Cap
Skid
0
10
Main Shaft
Mast Collar
M3x28 Shanked
Bolt
M3Nylon Nut
30
20 40
20 30 40
