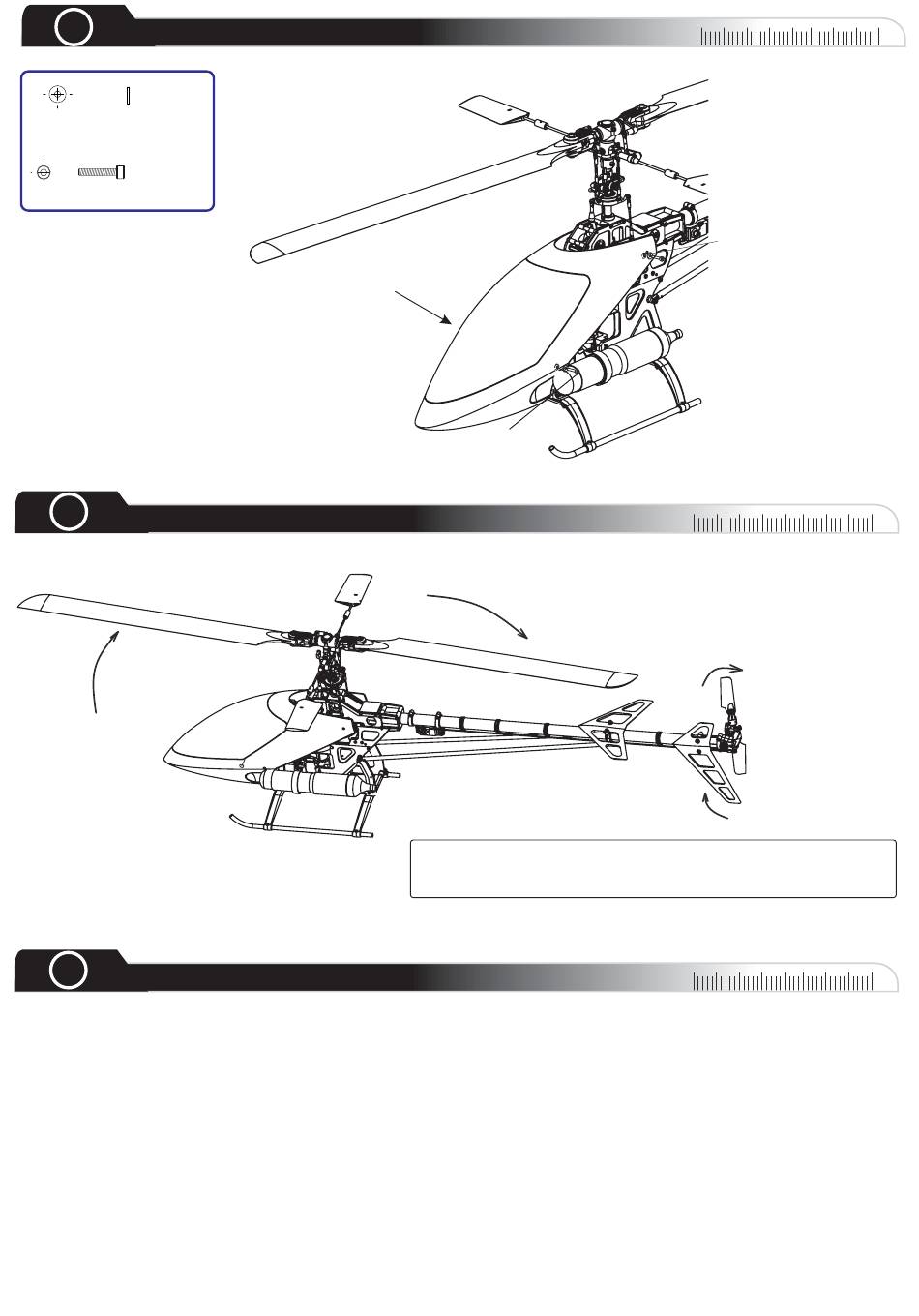

Compass Model Sport X Assembly Manual page 16

13
Canopy
3mm Washer X 4
M3x12 Cap Head Bolt x4
14
Rotor Direction
15
Pre Flight Check
1. Ensure that receiver & transmitter battery are fully charged.
.
2 Check if all bolts and screws are fastened tightly and correctly.
.
3 Repeat step 12 to check all servo functions are correct.
.
4 Ensure tail and gyro direction are correctly set
5. Check that main blades, paddles and tail blades are installed in the right direction.
6. Check that there are no missing or damaged parts, never fly with any damaged parts.
7. Make sure all electronic devices are firmly fastened and connected.
8. Before starting the engine, make sure the Flight Mode or Idle switch is in Normal mode,
and that the Throttle stick be in the lowest position.
Install the Canopy
.
onto t he helicopter
M3x12 Cap
Head Bolt
When the Rotor spins clockwise the Tail Blades should turn
clockwise as well watching the Tail Rotor from the Tail Fin side.
If not Belt is installed the wrong way and has to be corrected.
.
0 0 0 0
10 20 30
3mm W asher
0 0 0 0
10 20 30
0 0 0 0 10 30
20
40
40
40
