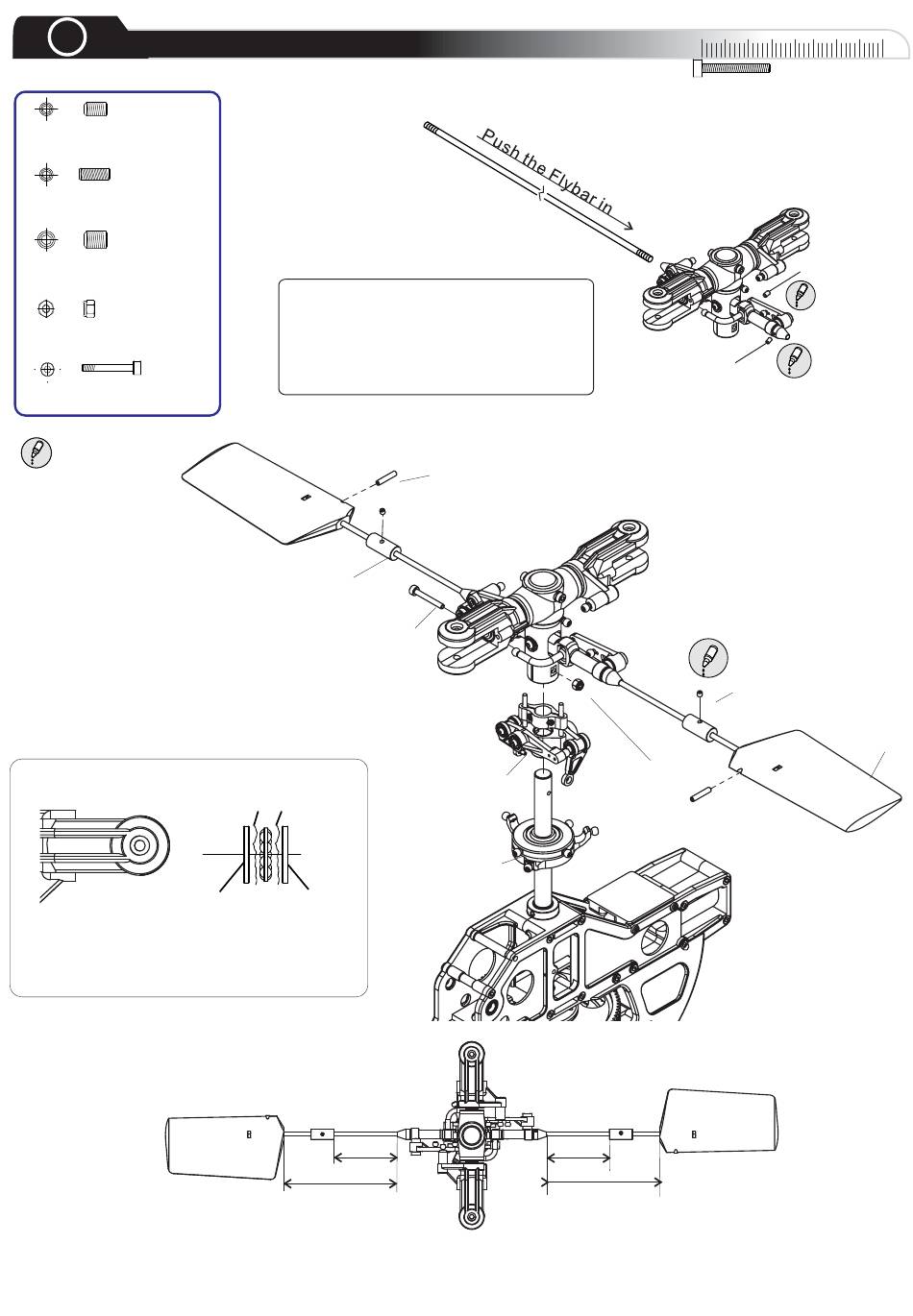

Compass Model Sport X Assembly Manual page 6

3
Rotor,Washout & Swashplate
M3x4 Set Screw x4
M3x10 Set Screw x2
M4x4 Set Screw x2
M3 Nylon Nut x1
M3x22 Shanked Bolt x1
Use Threadlock
See Page Team Tips!
Thrust Bearing Direction
Main Grip
Larger ID
Main grips are factory preassembled, in case
of reassembling, be sure to note correct
placement of large/small I.D. washers during
In this step, push the Flybar through
the Flybar Collar, Flybar Holder, and
Flybar Control Arm. Using set screws,
fix the Arms and Collars onto the
Flybar. Make sure that both sides of the
Flybar are of equal lengths.
Flybar Weight
M3x22 Shanked
Bolt x1
Apply Grease Here
Smaller ID
(IN)
(OUT)
B
A
Adjust so that each side has exactly the same length
M3x10 Set Screw
Washout Set
Swash Plate
B
0
10
M3x4
Set Screw
M3x4 Set Screw
M3 Nylon Nut
A
20 30 40
M4x4
Set Screw
Paddle
