Xilinx MicroBlaze Spartan-3E 1600E Edition Getting Started page 22

Chapter 2: MicroBlaze Development Kit BlueCat Linux Reference System
To turn on the ethernet port 0, eth0, and assign the board IP address to 1.2.3.4, the
command, ifconfig eth0 up 1.2.3.4, is issued.
To confirm the ethernet configuration settings, the command, ifconfig, is issued.
The result on a HyperTerminal of the configuration settings for the eth0 (Ethernet) and lo
(Local Loopback) ports are as shown in
X-Ref Target - Figure 2-4
To ping a remote computer at IP address 1.2.3.9 from the development board, this
example command string, ping -c 4 1.2.3.9, is used to ping the remote computer 4
times.
To telnet from a networked computer to the board, issue the command, telnet
1.2.3.4. All of the Linux commands can now be performed remotely as if the user were
logged into the console on a HyperTerminal.
www.BDTIC.com/XILINX
18
www.xilinx.com

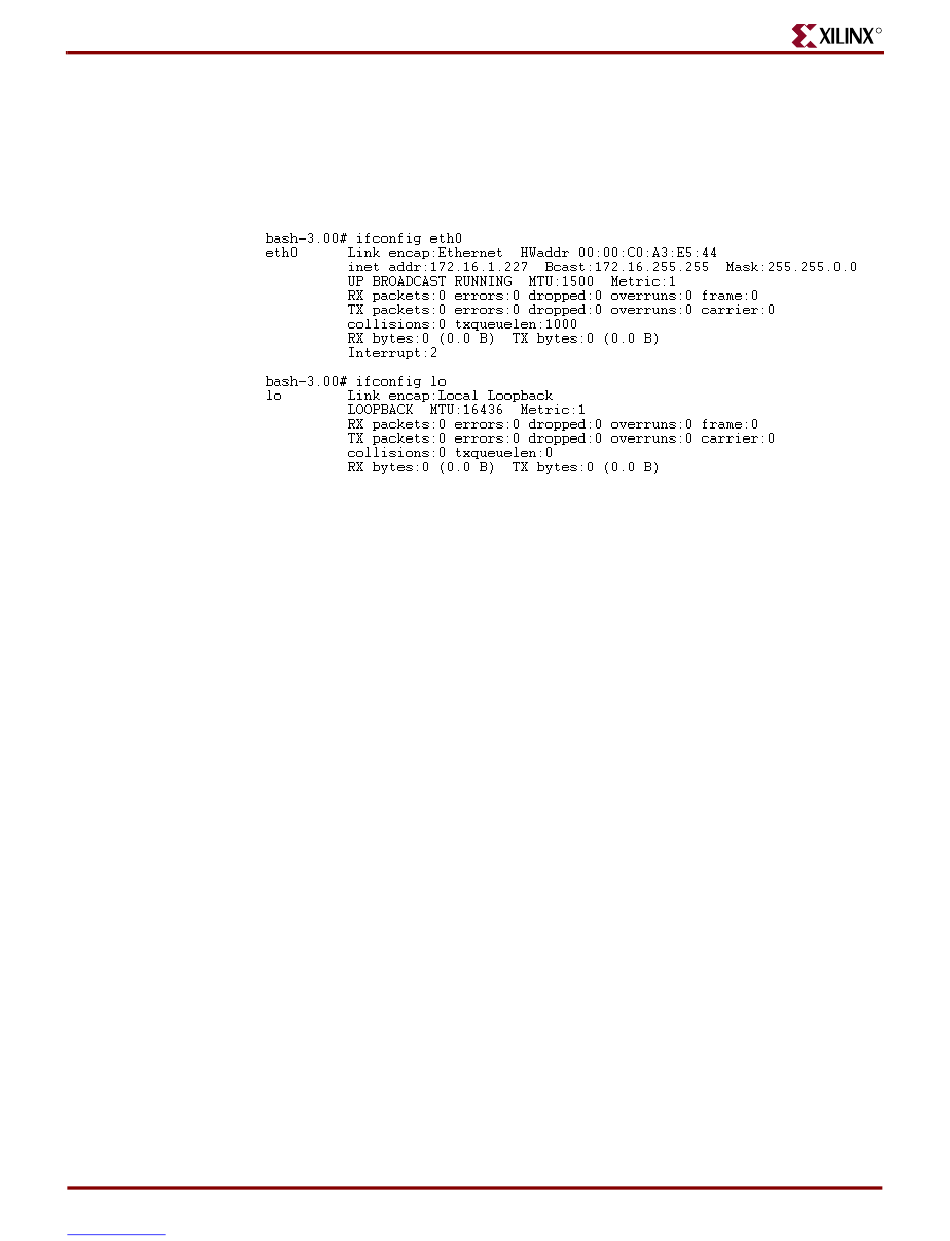

Figure 2-4: Ethernet Configuration Settings
Getting Started with the MicroBlaze Development Kit - Spartan-3E 1600E Edition
Figure 2-4.
UG258 (v1.3) November 30, 2007
