Device handbook
SINEAX AM2000
Operating Instructions SINEAX AM2000
173 849
04/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SINEAX AM2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Camille Bauer SINEAX AM2000

Summary of Contents for Camille Bauer SINEAX AM2000

  • Page 1 Device handbook SINEAX AM2000 Operating Instructions SINEAX AM2000 173 849 04/2015 Camille Bauer Metrawatt AG Aargauerstrasse 7 CH-5610 Wohlen / Switzerland Phone: +41 56 618 21 11 Telefax: +41 56 618 35 35 E-Mail: info@cbmag.com http://www.camillebauer.com...
  • Page 2 Feedback If you detect errors in this document or if there is necessary information missing, please inform us via e-mail to: customer-support@camillebauer.com 2/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 3: Table Of Contents

    7.8 Timeouts ..........................30 8.1 Calibration and new adjustment .................... 31 8.2 Cleaning ..........................31 8.3 Battery ........................... 31 8.4 Disposal ..........................31 9. Technical data ....................... 32 10. Dimensional drawings ....................38 3/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 4 B8 Display matrices for 4-wire system, unbalanced load, Open-Y ..........58 C Logic functions ............. Fehler! Textmarke nicht definiert. D Declaration of conformity ..................... 60 D1 CE conformity ........................60 D2 FCC statement ........................61 INDEX ........................... 62 4/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 5: Introduction

    • Safety instructions SINEAX AM2000 • Data sheet SINEAX AM2000 • Modbus basics: General description of the communication protocol • Modbus interface SINEAX AM2000: Register description of Modbus/RTU communication via RS-485 5/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 6: Safety Notes

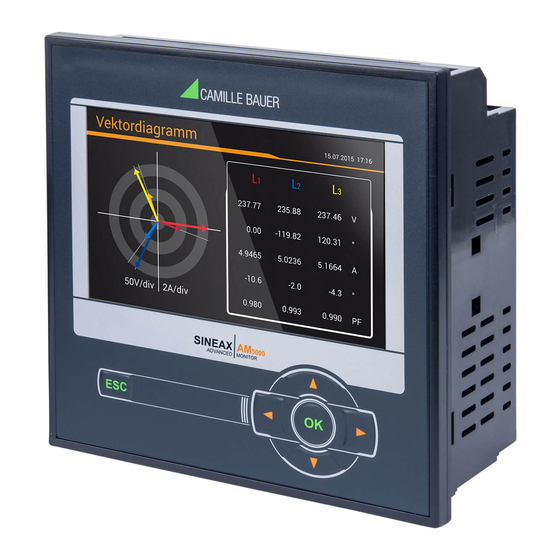

    3. Device overview 3.1 Brief description The SINEAX AM2000 is a comprehensive instrument for the universal measurement and monitoring in power systems. A full parameterization of all functions of the AM2000 is possible directly at the device. The universal measurement system of the device may be used directly for any power system, from single phase up to 4-wire unbalanced networks, without hardware modifications.

  • Page 7: Mechanical Mounting

    Pay attention to the fact, that current transformers must be shortened before removing the current connections to the device. Then demount the device in the opposite order of mounting (4.2). 7/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 8: Electrical Connections

    Caution! General hazard point. Read the operating instructions. General symbol: Input General symbol: Output Measurement category CAT III for current / voltage inputs, power supply and relay CAT III outputs 8/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 9: Terminal Assignments Of The I/O Extensions

    1 x 0.5 ... 2.5mm or 2 x 0.5 ... 1.0mm Multiwire with end splices 1 x 0.5 ... 2.5mm or 2 x 0.5 ... 1.5mm Tightening torque 0.5…0.6Nm resp. 4.42…5.31 lbf in 9/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 10: Inputs

    When using current transformers their secondary connectors must be short-circuited during installation and before removing the device. Never open the secondary circuit under load. The connection of the inputs depends on the configured system (connection type). 10/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 11 Single-phase AC mains Direct connection (UL listed) With current transformer (UL listed) With current and voltage transformer (UL listed) 11/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 12 In case of current measurement via L2 or L3 connect voltages according to the following table: Current Terminals I1-1 I1-3 I1-1 I1-3 By rotating the voltage connections the measurements U12, U23 and U31 will be assigned interchanged ! 12/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 13 With current transformer (UL listed) With current and voltage transformer (UL listed) In case of current measurement via L2 or L3 connect voltages according to the following table: Current Terminals I1-1 I1-3 I1-1 I1-3 13/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 14 Three wire system, unbalanced load Direct connection (UL listed) With current transformers (UL listed) With current and 3 single-pole isolated voltage transformers (UL listed) 14/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 15 Three wire system, unbalanced load, Aron connection Direct connection (UL listed) With current transformers (UL listed) With current and 3 single-pole isolated voltage transformers (UL listed) 15/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 16 Four wire system, unbalanced load Direct connection (UL listed) With current transformer (UL listed) With current and 3 single-pole isolated voltage transformers (UL listed) 16/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 17 Four wire system, unbalanced load, Open-Y Direct connection (UL listed) With current transformers (UL listed) With current and 2 single-pole isolated voltage transformers (UL listed) 17/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 18 Split-phase ("two phase system"), unbalanced load Direct connection (UL listed) With current transformers (UL listed) 18/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 19: Power Supply

    ► Synchronization of billing intervals in accordance with energy provider ► Meter tariff switching Technical data Input current < 7,0 mA Logical ZERO - 3 up to + 5 V Logical ONE 8 up to 30 V 19/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 20: Analog Outputs

    Under all circumstances consider as well appropriate remarks in the instruction manual of the system to connect. 20/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 21: Modbus Interface Rs485

    (baud rate, transmission format) and unique Modbus addresses. The bus system is operated half duplex and may be extended to a maximum length of 1200 m without repeater. 21/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 22: Commissioning

    5 Assignment power supply 6 Load capacity relay outputs 6.1 Parametrization of the device functionality A full parameterization of all functions of the device is possible directly at the device. See: Configuration 22/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 23: Installation Check

    To check if subsequent circuits will work properly with the measurement data provided by the device, using the service menu all analog, digital and relay outputs may be simulated, by predefining any output value resp. discrete state. 23/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 24: Operating The Device

    OK. Repeat the procedure in possible submenus until the required information is diaplyed. Closing the menu After 2 min. without interaction the menu is automatically closed and the last active measurement display is shown. 24/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 25: Measurement Displays And Used Symbols

    For displaying measurement information the device uses both numerical and numerical-graphical measurement displays. Examples Measurement information 1 measured quantity 2 measured quantities 4 measured quantities 2x4 measured quantities Graphical measurement display Further examples 25/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 26 , Response time 15-min Min/Max of 15-min mean-value Slave pointer value with time Reactive energy Q (energy demand only), high tariff Wirkleistung P (nur Energiebezug) Present meter content Trend of 15-min mean-value 26/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 27: Alarming

    The associated description will be used for visualization on the display or as a list text Delay time ON The condition must remain stable at least this time until it is forwarded Delay time OFF Waiting time until a condition, which does not longer exist, is reset 27/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 28 Alarm list The logic output of the active summary alarm may be reset by means of the OK key. 28/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 29: Resetting Measurements

    • Analog outputs: Type of output, source, transfer characteristic, upper/lower range limit • Modbus interface settings: Baudrate, parity, number of stop bits, device address • User settings • Demo mode ON/OFF • Device information texts 29/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 30: Timeouts

    If the user does not answer this query within 2 min. this dialogue is closed: The changed configuration will be stored and activated and then the last active measurement image is displayed again. 30/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 31: Calibration And New Adjustment

    The device contains a battery for buffering the internal clock. It cannot be changed by the user. The replacement can be done at the factory only. 8.4 Disposal The product must be disposed in compliance with local regulations. This particularly applies to the built-in battery. 31/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 32: Technical Data

    Related to the nominal value of the basic quantity Additional uncertainty if neutral wire not connected (3-wire connections) • Voltage, power: 0.1% of measured value; load factor: 0.1° • Energy: Voltage influence x 2, angle influence x 2 32/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 33 (see nameplate) V1: 110…230V AC / 130…230V DC ±15% or V2: 24...48V DC ±15% or V3: 110…200V AC / 110…200V DC ±15% ≤ 15 VA, depending on the device hardware used Consumption: 33/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 34 9'600, 19'200, 38'400, 57'600, 115'200 Baud ≤ 32 Number of participants: Internal clock (RTC) Uncertainty: ± 2 minutes / month (15 up to 30°C) Synchronization: via synchronization pulse Running reserve: > 10 years 34/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 35 Vibration withstand (test according to DIN EN 60 068-2-6) Acceleration: ± 5 g Frequency range: 10 … 150 … 10 Hz, rate of frequency sweep: 1 octave/minute Number of cycles: 10 in each of the 3 axes 35/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 36 SINEAX DM5S or DM5F, especially analog outputs, Modbus and USB interface, must be removed. A possible high- voltage test between input and output circuits must be limited to 500V DC, otherwise electronic components can be damaged. 36/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 37 Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class A digital apparatus complies with Canadian ICES-0003. 37/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 38: Dimensional Drawings

    10. Dimensional drawings 38/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 39: Annex

    √ √ Fundamental reactive power Q(H1) ● ● √ √ √ Fundamental reactive power Q1(H1) ● ● √ √ √ Fundamental reactive power Q2(H1) ● ● √ √ Fundamental reactive power Q3(H1) 39/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 40 √ Maximum ΔI <> Im maximum deviation from the mean value of all voltages (see maximum deviation from the mean value of all currents (see √ Available via Modbus/RTU communication interface only 40/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 41 0.5 capacitive ... 1 ... 0.5 inductive in a non-ambiguous way. The reactive power factor QF gives the relation between reactive and apparent power. 41/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 42 This should be measured during a periodical control of the system using a mobile system. Another possibility to analyze fault conditions in a grid offers the method of the symmetrical components as described in A3. 42/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 43: A2 Harmonic Analysis

    In the harmonics range transformers normally change both, the amplitude and the phase of the signals to measure. It's valid: The higher the frequency of the harmonic, the higher its damping resp. phase shift. 43/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 44: A3 System Imbalance

    By monitoring the current imbalance it's then possible to estimate if a capacitor failure is present. The maximum deviations are calculated in the same steps as the instantaneous values and therefore are arranged there (see A1). 44/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 45: A4 Mean Values And Trend

    √ √ √ √ Bimetal current IB1, 1...60min. ● ● √ √ √ √ √ Bimetal current IB2, 1...60min. ● ● √ √ √ √ Bimetal current IB3, 1...60min. Interval time t3 45/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 46: A5 Meters

    To each of these meters the user can freely assign a basic quantity and a tariff. For application with short measurement time, e.g. energy consumption of a working day or shift, the resolution can be adapted. 46/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 47: B Display Matrices

    Positive sequence current Negative sequence current Zero sequence current zero UR2R1 Unbalance factor voltage UR2/UR1 neg/pos IR2R1 Unbalance factor current IR2/IR1 neg/pos U0R1 Unbalance factor voltage U0/UR1 zero/pos I0R1 Unbalance factor current I0/IR1 zero/pos 47/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 48 Max. Total Demand Distortion of I TDD_I1_MAX Max. Total Demand Distortion of I1 TDD_I2_MAX Max. Total Demand Distortion of I2 TDD_I3_MAX Max. Total Demand Distortion of I3 TS: Timestamp of occurrence, e.g. 2014/09/17 11:12:03 48/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 49 (m): Short description of basic quantity, e.g. „P“ (T): Associated tariff, e.g. „HT" or „LT“ (p): Phase reference of the selected quantity, e.g. „1 “ (mu): Unit of basic quantity (q): Quadrant information, e.g. „ “ (outgoing) 49/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
  • Page 50 Harmonic Distortion of all voltages Graphic: Maximum values even harmonics 2 up to 50 + Total HE_IX_MAX (as HO_UX) Harmonic Distortion of all currents PHASOR Graphic: All current and voltage phasors with present load sitution 50/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 51: B1 Display Matrices For Single Phase System

    TR_M6 / M6 TR_M10 / M10 M2_MM M2_MM M2_MM TR_M3 / M3 TR_M7 / M7 TR_M11 / M11 M3_MM M3_MM M3_MM TR_M4 / M4 TR_M8 / M8 TR_M12 / M12 M4_MM M4_MM M4_MM IB_MAX 51/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 52: B2 Display Matrices For Split-Phase (Two-Phase) Systems

    TR_M10 / M10 M2_MM M2_MM M2_MM TR_M3 / M3 TR_M7 / M7 TR_M11 / M11 M3_MM M3_MM M3_MM TR_M4 / M4 TR_M8 / M8 TR_M12 / M12 M4_MM M4_MM M4_MM IB1_MAX IB2_MAX 52/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 53: B3 Display Matrices For 3-Wire System, Balanced Load

    TR_M6 / M6 TR_M10 / M10 M2_MM M2_MM M2_MM TR_M3 / M3 TR_M7 / M7 TR_M11 / M11 M3_MM M3_MM M3_MM TR_M4 / M4 TR_M8 / M8 TR_M12 / M12 M4_MM M4_MM M4_MM IB_MAX 53/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 54: B4 Display Matrices For 3-Wire Systems, Unbalanced Load

    TR_M10 / M10 M2_MM M2_MM M2_MM TR_M3 / M3 TR_M7 / M7 TR_M11 / M11 M3_MM M3_MM M3_MM TR_M4 / M4 TR_M8 / M8 TR_M12 / M12 M4_MM M4_MM M4_MM IB1_MAX IB2_MAX IB3_MAX 54/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 55: B5 Display Matrices For 3-Wire Systems, Unbalanced Load, Aron

    TR_M10 / M10 M2_MM M2_MM M2_MM TR_M3 / M3 TR_M7 / M7 TR_M11 / M11 M3_MM M3_MM M3_MM TR_M4 / M4 TR_M8 / M8 TR_M12 / M12 M4_MM M4_MM M4_MM IB1_MAX IB2_MAX IB3_MAX 55/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 56: B6 Display Matrices For 4-Wire System, Balanced Load

    TR_M6 / M6 TR_M10 / M10 M2_MM M2_MM M2_MM TR_M3 / M3 TR_M7 / M7 TR_M11 / M11 M3_MM M3_MM M3_MM TR_M4 / M4 TR_M8 / M8 TR_M12 / M12 M4_MM M4_MM M4_MM IB_MAX 56/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 57: B7 Display Matrices For 4-Wire Systems, Unbalanced Load

    TR_M10 / M10 M2_MM M2_MM M2_MM TR_M3 / M3 TR_M7 / M7 TR_M11 / M11 M3_MM M3_MM M3_MM TR_M4 / M4 TR_M8 / M8 TR_M12 / M12 M4_MM M4_MM M4_MM IB1_MAX IB2_MAX IB3_MAX 57/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 58: B8 Display Matrices For 4-Wire System, Unbalanced Load, Open-Y

    TR_M10 / M10 M2_MM M2_MM M2_MM TR_M3 / M3 TR_M7 / M7 TR_M11 / M11 M3_MM M3_MM M3_MM TR_M4 / M4 TR_M8 / M8 TR_M12 / M12 M4_MM M4_MM M4_MM IB1_MAX IB2_MAX IB3_MAX 58/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 59: C Logic Functions

    The monitoring function is reduced to one input only. The state of DIRECT the output corresponds to the input. The monitoring function is reduced to one input only. The state of INVERT the output corresponds to the inverted input. 59/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 60: D Declaration Of Conformity

    D Declaration of conformity D1 CE conformity 60/62 Device handbook SINEAX AM2000, 173 849, 04/2015...

  • Page 61: D2 Fcc Statement

    Camille Bauer AG. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

  • Page 62: Index

    Symbols ............... 26 Symmetrical components........44 Logic components AND ..............59 Technical data ............32 DIRECT ............59 INVERT ............59 NAND..............59 Zero suppression ..........33 NOR ..............59 OR ..............59 62/62 Device handbook SINEAX AM2000, 173 849, 04/2015...
