Device handbook

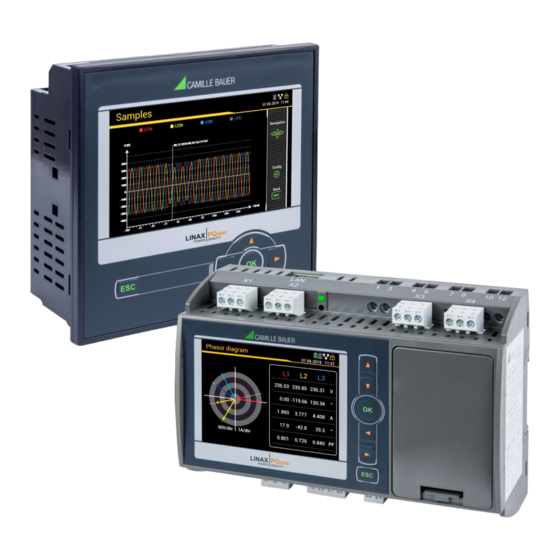

LINAX PQ3000 / PQ5000
Operating Instructions LINAX PQ3000 / PQ5000 (2019-06)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LINAX PQ5000 and is the answer not in the manual?

Questions and answers

Related Manuals for Camille Bauer LINAX PQ5000

Summary of Contents for Camille Bauer LINAX PQ5000

  • Page 1 Bearbeitung Device handbook LINAX PQ3000 / PQ5000 Operating Instructions LINAX PQ3000 / PQ5000 (2019-06) Camille Bauer Metrawatt AG Aargauerstrasse 7 CH-5610 Wohlen / Switzerland Phone: +41 56 618 21 11 Telefax: +41 56 618 35 35 E-Mail: info@cbmag.com https://www.camillebauer.com...
  • Page 2 Legal information Warning notices In this document warning notices are used, which you have to observe to ensure personal safety and to prevent damage to property. Depending on the degree of danger the following symbols are used: If the warning notice is not followed death or severe personal injury will result.

  • Page 3: Table Of Contents

    3.1 Brief description ............................6 3.2 Available measurement data ........................6 4. Mechanical mounting ............................7 4.1 LINAX PQ3000 ............................7 4.2 LINAX PQ5000 ............................8 5. Electrical connections ............................9 5.1 General safety notes..........................9 5.2 Terminal assignments of the I/O extensions ...................10 5.2.1...
  • Page 4 7.4 Resetting measurement data ......................... 46 7.5 Configuration ............................46 7.5.1 Configuration at the device ....................... 46 7.5.2 Configuration via web browser ......................48 7.6 PQ monitoring ............................50 7.6.1 PQ events ............................50 7.6.2 PQ statistic ............................. 51 7.6.3 Provision of PQ data ........................

  • Page 5: Introduction

    • Modbus basics: General description of the communication protocol • Modbus interface LINAX PQx000: Register description of Modbus RTU/TCP communication • IEC61850 interface SINEAX AMx000/DM5000, LINAX PQx000, CENTRAX CUx000 • Camille Bauer certificate for encrypted HTTPS communication PM 1001608 000 09 Device handbook LINAX PQ3000-PQ5000...

  • Page 6: Safety Notes

    2. Safety notes Device may only be disposed in a professional manner! The installation and commissioning should only be carried out by trained personnel. Check the following points before commissioning: – that the maximum values for all the connections are not exceeded, see "Technical data" section, –...

  • Page 7: Mechanical Mounting

    4. Mechanical mounting Please ensure that the operating temperature limits are not exceeded when determining the place of mounting (place of measurement). By installing, the device becomes part of an electrical power installation that must be designed, operated and maintained in accordance with country-specific regulations so that the installation is safe and provides prevention against fire and explosion as far as possible.

  • Page 8: Linax Pq5000

    Then demount the device in the opposite order of mounting. 4.2 LINAX PQ5000 The device can be clipped onto a top-hat rail according to EN 60715. Orientation as shown.

  • Page 9: Electrical Connections

    5. Electrical connections Ensure under all circumstances that the leads are free of potential when connecting them! 5.1 General safety notes Please observe that the data on the type plate must be adhered to! The national provisions have to be observed in the installation and material selection of electric lines, e.g.

  • Page 10: Terminal Assignments Of The I/O Extensions

    Symbol Meaning Device may only be disposed of in a professional manner! Double insulation, device of protection class 2 CE conformity mark. The device fulfills the requirements of the applicable EU directives. Products with this mark comply with both the Canadian (CSA) and the American (UL) requirements.

  • Page 11: Linax Pq5000

    5.2.2 LINAX PQ5000 Function Option 1 Option 2 1.1: X1.1 / X1.2 / X1.3 2.1: X3.1 / X3.2 / X3.3 2 relay outputs 1.2: X2.1 / X2.2 / X2.3 2.2: X4.1 / X4.2 / X4.3 1.1: X2.2(+) / X2. 3(-) 2.1: X4.2(+) / X4.3 (-)

  • Page 12: Inputs

    You may have to remove first the plug-in terminals to get access to the screw terminals of the current inputs. 5.4 Inputs All voltage measurement inputs must originate at circuit breakers or fuses rated 5 Amps or less. This does not apply to the neutral connector. You have to provide a method for manually removing power from the device, such as a clearly labeled circuit breaker or a fused disconnect switch in accordance with IEC 60947-2 or IEC 60947-3.
  • Page 13 Single-phase AC mains Direct connection If current I or voltage U does not need to be measured, connection of IN and PE can be omitted. Maximum permissible rated voltage (UL listed) 300V to ground! With current transformer If current I does not need to be measured, the corresponding transformer can be omitted.
  • Page 14 Three wire system, balanced load, current measurement via L1 Direct connection Maximum permissible rated voltage 300V to ground (520V ph-ph)! (UL listed) With current transformer (UL listed) With current and voltage transformers (UL listed) In case of current measurement via L2 or L3 connect the device according to the following table: Terminals I2(k)
  • Page 15 Three wire system, unbalanced load Direct connection Maximum permissible rated voltage 300V to ground (520V ph-ph)! (UL listed) With current transformers (UL listed) With current and 3 single-pole isolated voltage transformers (UL listed) PM 1001608 000 09 Device handbook LINAX PQ3000-PQ5000 15/102...
  • Page 16 Three wire system, unbalanced load, Aron connection Direct connection Maximum permissible rated voltage 300V to ground (520V ph-ph)! (UL listed) With current transformers (UL listed) With current and 3 single-pole isolated voltage transformers (UL listed) PM 1001608 000 09 Device handbook LINAX PQ3000-PQ5000 16/102...
  • Page 17 Four wire system, unbalanced load Direct connection If current I or voltage U does not need to be measured, connection of IN and PE can be omitted. Maximum permissible rated voltage (UL listed) 300V to ground (520V ph-ph)! With current transformer If voltage U does not need to be measured, connection of PE can be omitted.
  • Page 18 Split-phase ("two phase system"), unbalanced load Direct connection Maximum permissible rated voltage 300V to ground (600V ph-ph)! (UL listed) With current transformers (UL listed) With current and voltage transformer In systems without a primary neutral conductor a voltage transformer with a secondary center tap can also be used.

  • Page 19: Power Supply

    5.5 Power supply A marked and easily accessible current limiting switch in accordance with IEC 60947-2 has to be arranged in the vicinity of the device for turning off the power supply. Fusing should be 10 Amps or less and must be rated for the available voltage and fault current. 5.6 Relays When the device is switched off the relay contacts are de-energized, but dangerous voltages may be present.

  • Page 20: Digital Outputs

    Active inputs (no external power supply required) Technical data ( acc. EN62053-31, class B) Open circuit voltage ≤ 15 V Short circuit current < 15 mA Current at R =800Ω ≥ 2 mA PQ3000 PQ5000 Option y Example with meter pulse and status inputs 5.8 Digital outputs The device has two standard digital outputs for which an external 12 / 24 VDC power supply is required.

  • Page 21: Analog Outputs

    Electro mechanical meters typically need a pulse width of 50...100ms. Electronic meters are partly capable to detect pulses in the kHz range. There are two types: NPN (active negative edge) and PNP (active positive edge). For this device a PNP is required. The pulse width has to be ≥...

  • Page 22: Fault Current Detection

    5.10 Fault current detection Each fault current module provides two channels for monitoring differential or fault currents in earthed AC current systems. In any case, measurement has to be performed via suitable current transformers, a direct measurement is not possible. The module is not suited for monitoring operating currents of normally live conductors (L1, L2, L3, N).
  • Page 23 Example: Fault current monitoring in a TNS system Hints (1) If the current transformers for the fault current detection needs to be grounded on the secondary side this has to be done via the COM connector. (2) Note that all conductors have to pass through the opening of the residual current transformer in the same direction.

  • Page 24: Temperature Inputs

    5.11 Temperature inputs Each temperature module provides two channels for temperature monitoring. They can be used in two ways: a) Temperature measurement via Pt100 sensor • Measurement range: -50 up to 250°C • 2 configurable alarm limits • Configurable alarm delay time for ON / OFF •...

  • Page 25: Modbus Interface Rs485

    5.12 Modbus interface RS485 Via the optional Modbus interface measurement data may be provided for a superior system. However, the Modbus interface cannot be used for device parameterization. 1) One ground connection only. Rt: Termination resistors: 120 Ω each Rs: Bus supply resistors, This is possibly made within the for long cables (>...

  • Page 26: Gps Time Synchronization

    5.14 GPS time synchronization The optional GPS connection module serves for connecting a GPS receiver as a very accurate time synchronization source for the measurement device. The GPS receiver, available as an accessory, is used as outdoor antenna to process data from multiple GPS satellites simultaneously. GPS receiver Only use the receiver Garmin GPS 16x-LVS (article no.
  • Page 27 Connecting the GPS receiver Never connect the RJ45 socket of the connecting cable directly to a network device such as a router or switch. These devices could be damaged. The GPS receiver is plugged directly into the GPS connection module. The connection cable has a length of 5 m.

  • Page 28: Commissioning

    6. Commissioning Before commissioning you have to check if the connection data of the device match the data of the plant (see nameplate). If so, you can start to put the device into operation by switching on the power supply and the measurement inputs.

  • Page 29: Parametrization Of The Device Functionality

    6.1 Parametrization of the device functionality A full parameterization of all functions of the device is possible directly at the device or via web browser. See: Configuration (7.5) 6.2 Operating LED (PQ5000 only) The operating LED shows the present device state. Procedure LED display Booting of device...
  • Page 30 b) Phasor verification: The phasor diagram shows a technical visualization of the current and voltage phasors, using a counter-clockwise rotation, independent of the real sense of rotation. The diagram is always built basing on the voltage of the reference channel (direction 3 o’clock) Correct installation (expectation) •...

  • Page 31: Ethernet Installation

    6.4 Ethernet installation 6.4.1 Settings Before devices can be connected to an existing Ethernet network, you have to ensure that they will not disturb the normal network service. The rule is: None of the devices to connect is allowed to have the same IP address than another device already installed The device can be equipped with multiple Ethernet interfaces whose network settings can be configured independently.
  • Page 32 For a direct communication between device and PC both devices need to be in the same network when the subnet mask is applied: Example 1 decimal binary 11000000 10101000 00000001 01100101 192.168. 1.101 IP address 11111111 11111111 11111111 11100000 255.255.255.224 Subnet mask xxxxx variable range...

  • Page 33: Connection Of The Standard Interface

    Time synchronization via NTP protocol For the time synchronization of devices via Ethernet NTP (Network Time Protocol) is the standard. Corresponding time servers are used in computer networks, but are also available for free via Internet. Using NTP it's possible to hold all devices on a common time base. Two different NTP servers may be defined.

  • Page 34: Connection Of The Iec61850 Interface

    6.4.3 Connection of the IEC61850 interface The RJ45 sockets X1 and X2 serve for direct connecting Ethernet cables. Both ports are equivalent and internally connected via a switch.  Interface: RJ45 sockets, Ethernet 100BaseTX  Mode: 10/100 MBit/s, full / half duplex, auto-negotiation ...

  • Page 35: Mac Addresses

    6.4.5 MAC addresses For uniquely identifying Ethernet connections in a network, a unique MAC address is assigned to each connection. Compared to the IP address, which may be modified by the user at any time, the MAC address is static. Standard Ethernet interface PQ3000 PQ5000...

  • Page 36: Resetting The Communication Settings Of The Pq5000

    6.4.7 Resetting the communication settings of the PQ5000 If the communication settings of the Standard interface are no longer known, they can be reset to the default settings by pressing the sunk-in reset button (located below the operating LED) for at least 3s. During the reset the operating LED flashes red.

  • Page 37: Parameterization Of The Device

    Before a device can be used in a project, the associated GSD file must be imported in the configuration tool (e.g. TIA Portal). 6.6.2 Parameterization of the device As soon as the GSD file has been imported, the device is available in the hardware catalog and can be integrated using drag&drop.
  • Page 38 Further steps during parameterization are: • Assigning a unique device name via DCP protocol • Assigning an IP address to the device, normally an automatic procedure • Assembly of the cyclical process image (see below), maximum of 62 measurements • Integration in the topology of the complete system Because these steps are device independent and do rely on the used tool only, further details are not given here.

  • Page 39: Validity Of Measurements

    6.6.3 Validity of measurements The following measurements can be used in the process image: • Instantaneous values of voltages, currents, active/reactive/apparent power, frequency, load factor • THD voltages and currents, TDD currents • Odd harmonics of voltages and currents up to the 25 •...

  • Page 40: Simulation Of Analog / Digital Outputs

    6.7 Simulation of analog / digital outputs To check if subsequent circuits will work properly with output values provided by the device, using the service menu Simulation all analog or digital / relay outputs may be simulated. This is done by either entering analog output values or selecting discrete states for the digital outputs / relays.
  • Page 41 Before HTTPS communication can be used a root certificate needs to be installed. The user can either use a Camille Bauer certificate or its own customer certificate. This may be selected when activating https communication via the Settings of the Security system in the item Web Security.
  • Page 42 Agree to install the certificate when the below security warning appears: Customer certificate Upload your certificate and private key via the Settings of the Security system in the item Web Security. 6.8.3 Whitelisting clients It is possible to define an IP address list of up to 10 clients allowed to have access to the device.

  • Page 43: Operating The Device

    7. Operating the device 7.1 Operating elements PQ3000 PQ5000 The operation of devices with display is performed by means of 6 keys:  4 keys for navigation ( , , , ) and for the selection of values  OK for selection or confirmation ...

  • Page 44: Measurement Displays And Used Symbols

    7.3 Measurement displays and used symbols For displaying measurement information the device uses both numerical and numerical-graphical measurement displays. Examples Measurement information 2 measured quantities 4 measured quantities 2x4 measured quantities 2x4 measured quantities with min/max Graphical measurement display Further examples PM 1001608 000 09 Device handbook LINAX PQ3000-PQ5000 44/102...
  • Page 45 Incoming / outgoing / inductive / capacitive The device provides information for all four quadrants. Quadrants are normally identified using the roman numbers I, II, III and IV, as shown in the adjacent graphic. Depending on whether the system is viewed from the producer or consumer side, the interpretation of the quadrants is changing: The energy built from the active power in the quadrants I+IV can either been seen as delivered or consumed active energy.

  • Page 46: Resetting Measurement Data

    7.4 Resetting measurement data • Minimum and maximum may be reset during operation. The reset may be performed in groups using the service menu. Group Values to be reset Min/max values of voltages, currents and frequency Min/max values of Power quantities (P,Q,Q(H1),D,S); min. load factors Min/max values of power mean-values, bimetal slave pointers and free selectable mean-values Maximum values of harmonic analysis: THD U/I, TDD I, individual harmonics U/I All imbalance maximum values of voltage and current...
  • Page 47 • Meters | Meter logger: Selection of the reading interval • Limit values: Selection of up to 12 quantities to monitor, limit values for ON/OFF • Digital inputs: Debounce time (minimum pulse width), pulse rate and polarity of the digital inputs •...

  • Page 48: Configuration Via Web Browser

    7.5.2 Configuration via web browser It’s recommended to use either Google Chrome or Firefox as browser. Internet Explorer works with limitations only (partly missing texts, firmware update not possible) For configuration via web browser use the device homepage via http://<ip_addr>. The default IP address of the device is 192.168.1.101.
  • Page 49 Loading / saving configuration files The user can save the present device configuration on a storage media and reload it from there. The storage or load procedure varies depending on the used browser. Loading a configuration file from a storage media The configuration data of the selected file will be directly loaded into the device.

  • Page 50: Pq Monitoring

    7.6 PQ monitoring Power quality monitoring provides both a statistical evaluation, allowing an assessment of compliance with standards (e.g. EN 50160) or supply contracts, as well as records of events in the grid (e.g. power voltage dips). This facilitates the analysis of causes and effects. Conformity reports may also be created directly via the website of the device.

  • Page 51: Pq Statistic

    7.6.2 PQ statistic Power quality (PQ) is assessed by a comparison between the PQ parameters measured by the device and the limits of a contract agreed upon. The assessment period is usually at least one week to take into account possible variations between weekdays and weekends. Via its website the device can perform an assessment of the measured PQ parameters in accordance with the following standards: EN 50160...

  • Page 52: Alarming

    7.7 Alarming The device supports an alarming concept independent of power quality events. Depending on the user requirements, simple or more advanced monitoring tasks may be realized. The most important objects are limit values on base quantities, the monitoring of fault-current, monitoring functions and the summary alarm.

  • Page 53: Monitoring Fault-Currents

    7.7.2 Monitoring fault-currents Each (optional) fault current module provides two channels for monitoring residual or fault current. For each of the channels an alarm and a pre-warning limit can be defined, which can be used as follows: … Activating a summary alarm when the alarm limit is violated or a breakage occurs (2mA input only) …...

  • Page 54: Temperature Monitoring

    7.7.3 Temperature monitoring Each (optional) temperature module provides two channels for temperature monitoring. Used for Pt100 measurement • Up to 2 limit values • Short circuit and wire / sensor breakage monitoring Used for PTC monitoring • Monitoring the PTC response temperature •...

  • Page 55: Monitoring Functions

    7.7.4 Monitoring functions By means of monitoring functions the user can define an extended condition monitoring, e.g. for triggering an over-current alarm, if one of the phase currents exceeds a certain limit value. The states of all monitoring functions …will be shown in the alarm list (“Events” via main menu) …build a summary alarm state Logic inputs Up to three states of limit values, fault-current or temperature monitoring, logic inputs or other monitoring...

  • Page 56: Summary Alarm

    7.7.5 Summary alarm The summary alarm combines the states of all monitoring functions MFx to a superior alarm-state of the overall unit. For each monitoring function you may select if it is used for building the summary alarm state. If at least one of the used functions is in the alarm state, the summary alarm is also in the alarm state. If an optional failure-current monitoring is present, the detection of an alarm state or a breakage of the measurement line (2mA inputs only) activates directly the summary alarm.

  • Page 57: Data Recording

    7.8 Data recording The data logger provides long-term recordings of measurement progressions, events and PQ statistics. The recording is performed in endless mode (oldest data will be deleted, as soon as the associated memory is full). Group Data type Request •...
  • Page 58 The selection of the mean-value quantity to display can be performed via choosing the corresponding register. Three different kind of displays are supported: • Daily profile: Hourly mean-values will be shown, independently of the real averaging time • Weekly profile •...
  • Page 59 Displaying the chronology of meter contents The chronology of meters is available via the menu Energy and is divided in two groups: • Pre-defined meters • User-defined meters From the difference of two successive meter readings the energy consumption for the dedicated time range can be determined.

  • Page 60: Events

    Data export as CSV file the time range of the data to export can be selected. A CSV (Comma separated value) file will be generated. This can be imported as a text file to Excel, with comma as a separator. The same file contains data for all quantities of the respective group.

  • Page 61: Pq Events

    7.8.3 PQ events Configuration of the events to record See 7.6 Display of PQ event recordings (locally) Recorded events are available in the form of a logbook, mains signalling events are stored in a separated list. Each detected event is entered into the PQ event list with the time of its occurrence, the remaining voltage and the duration of the event.
  • Page 62 Restriction of the quantities to display on the local display The user can adapt the displayed information to its needs. Once the graphic is displayed, the setting window for the selection of the quantities to display is entered by pressing <OK>. Voltage display Current display Mixed display...

  • Page 63: Pq Statistic

    7.8.4 PQ statistic From the PQ statistic it is very easy to see whether the limits of the monitored criteria are respected or not. Each criterion is represented by a bar, which itself may be composed of multiple color components: Requirement fulfilled Missing data Requirement not fulfilled...
  • Page 64 Display of PQ statistic (locally) Selection via Main menu | PQ statistic The PQ statistic is always displayed for the past seven days. Another time range cannot be selected. The standard to be used for the assessment of the statistic can be changed by selecting the entry “Standard”.
  • Page 65 Creating a conformity report via the device website – PQ-Easy Report a conformity report in PDF format can be created. 1. Select assessment period: At least 1 week 2. Select standard which conformity needs to be proven 3. Select content of report (3 levels) 4.
  • Page 66 Example of a conformity report a) Overview b) Details c) Events PM 1001608 000 09 Device handbook LINAX PQ3000-PQ5000 66/102...
  • Page 67 7.8.5 Micro SD card (PQ3000 only) Devices with data logger are supplied with a micro SD-Card, which provides long recording times. Activity The red LED located next to the SD card signals the logger activity. When data is written to the SD card the LED becomes shortly dark.

  • Page 68: Data Export Of Pqdif Files

    7.9 Data export of PQDIF files 7.9.1 Provision of PQ data The PQDIF files will be created periodically after midnight for the past day and provided in a hierarchical time structure (year, month, day), shown below for 2017/October /3rd. PQDIF files may also be generated manually via web interface. This is possible for the present day (data since midnight) or for days in the past.

  • Page 69: Accessing Pqdif Files

    7.9.2 Accessing PQDIF files You may access PQDIF files in two ways: a) Manual download via the Service | PQ data | Download PQ data: The desired file can be selected from the file structure according to chapter 7.9.1. b) Automatic download using the SmartCollect PM20 software (not included in the scope of delivery) 7.9.3 Evaluation of the PQDIF files For the analysis of the data of the PQDIF files either the SmartCollect PM20 software (not included in the scope of delivery) or a free tool with limited functionality, such as the PQDiffractor from Electrotek...

  • Page 70: Timeouts

    7.10 Timeouts Devices with display are designed for displaying measurements. So, any other procedure will be terminated after a certain time without user interaction and the last active measurement image will be shown again. Menu timeout A menu timeout takes effect after 2 min. without changing the present menu selection. It doesn’t matter if the currently displayed menu is the main menu or a sub-menu: The menu is closed and the last active measurement image is displayed again.

  • Page 71: Service, Maintenance And Disposal

    8. Service, maintenance and disposal 8.1 Calibration and new adjustment Each device is adjusted and checked before delivery. The condition as supplied to the customer is measured and stored in electronic form. The uncertainty of measurement devices may be altered during normal operation if, for example, the specified ambient conditions are not met.

  • Page 72: Technical Data

    9. Technical data Inputs Nominal current: adjustable 1...5 A; max. 7.5 A (sinusoidal) Measurement category: 300V CAT III Consumption: ≤ I x 0.01 Ω per phase Overload capacity: 10 A continuous 100 A, 5 x 1 s, interval 300 s Nominal voltage: 57.7…400 V (UL: 347V...
  • Page 73 Power Quality (IEC 62586-1) PQI-A FI2: Power Quality Instrument – Class A; Fixed installation; Type of device: Indoor environment with controlled temperature variations (2) Measurement cycle: 200 ms (50Hz: 10 cycles; 60Hz: 12 cycles) Flagging concept: Multiphase approach in accordance with IEC 61000-4-30 Certification: According to IEC62586-2 (standard for verifying compliance with IEC 61000-4-30) Certification body:...
  • Page 74 Power supply via terminals 13-14 PQ3000 Consumption (see nameplate) V1: 110…230V AC 50/60Hz / 130…230V DC ±15% III (UL: II) ≤ 30 VA, ≤ 13 W V2: 24...48V DC ±15% ≤ 13 W V3: 110…200V AC 50/60Hz / 110…200V DC ±15% III (UL: II) ≤...
  • Page 75 Digital outputs via plug-in terminals Nominal voltage: 12 / 24 V DC (30 V max.) Nominal current: 50 mA (60 mA max.) Fault current detection via plug-in terminals Number of channels 2; each channel provides two measurement ranges (2mA, 1A) Zero suppression Measurement <...
  • Page 76 Ethernet via RJ45 socket Protocol: Modbus/TCP, NTP, http, https Physics: Ethernet 100BaseTX Mode: 10/100 Mbit/s, full/half duplex, auto-negotiation IEC61850 via RJ45 sockets, 2 equivalent ports Protocol: IEC61850, NTP Physics: Ethernet 100BaseTX Mode: 10/100 Mbit/s, full/half duplex, auto-negotiation PROFINET via RJ45 sockets, 2 equivalent ports Conformance class: CC-B Netload class:...
  • Page 77 Acceleration: • Device with display: ± 0.25 g (operating); 1.20 g (storage) • Device without display: ± 2 g Frequency range: 10 … 150 … 10 Hz, rate of frequency sweep: 1 octave/minute Number of cycles: 10 in each of the 3 axes Safety The current inputs are galvanically isolated from each other Protection class:...
  • Page 78 Applied regulations, standards and directives IEC/EN 61010-1 Safety regulations for electrical measuring, control and laboratory equipment IEC/EN 61000-4-30 Ed.3 Power quality measurement methods IEC/EN 61000-4-7 General guide on harmonics and interharmonics measurements IEC/EN 61000-4-15 Flickermeter - Functional and design specifications IEEE 1159.3 Recommended Practice for the Transfer of Power Quality Data IEC 62586-1 Ed.2...

  • Page 79: Dimensional Drawings

    10. Dimensional drawings LINAX PQ3000 LINAX PQ5000 Dimensions All dimensions in [mm] PM 1001608 000 09 Device handbook LINAX PQ3000-PQ5000 79/102...

  • Page 80: Annex

    Annex A Description of measured quantities Used abbreviations Single phase system Split phase; system with 2 phases and center tap 3-wire system with balanced load 3-wire system with unbalanced load 3Lu.A 3-wire system with unbalanced load, Aron connection (only 2 currents connected) 4-wire system with unbalanced load A1 Basic measurements The basic measured quantities are calculated each 200ms by determining an average over 10 cycles at 50Hz or 12...
  • Page 81 Measurement ● ● √ √ √ √ √ √ Apparent power S Apparent power S1 ● ● √ √ Apparent power S2 ● ● √ √ ● ● √ Apparent power S3 ● ● √ √ √ √ √ √ Fundamental apparent power S(H1) Fundamental apparent power S1(H1) ●...
  • Page 82 Reactive power Most of the loads consume a combination of ohmic and inductive current from the power system. Reactive power arises by means of the inductive load. But the number of non-linear loads, such as RPM regulated drives, rectifiers, thyristor controlled systems or fluorescent lamps, is increasing. They cause non- sinusoidal AC currents, which may be represented as a sum of harmonics.
  • Page 83 Zero displacement voltage U Starting from the generating system with star point E (which is normally earthed), the star point (N) on load side is shifted in case of unbalanced load. The zero displacement voltage between E und N may be determined by a vectorial addition of the voltage vectors of the three phases: = - (U...

  • Page 84: A2 Harmonic Analysis

    A2 Harmonic analysis The harmonic analysis is performed according IEC 61000-4-7 over 10 cycles at 50Hz or 12 cycles at 60Hz. If a measured quantity is available depends on the selected system. Measurement THD Voltage U1N/U ● ● √ √ √...

  • Page 85: A3 System Imbalance

    A3 System imbalance Measured quantity ● √ √ √ √ UR1: Positive sequence [V] ● √ √ √ √ UR2: Negative sequence [V] U0: Zero sequence [V] ● √ U: Imbalance UR2/UR1 ● ● √ √ √ √ ● ● √...

  • Page 86: A4 Mean Values And Trend

    A4 Mean values and trend Measured quantity ● ● ● ● Active power I+IV 10s...60min. ● ● ● ● Active power II+III 10s...60min. Reactive power I+II 10s...60min. ● ● ● ● Reactive power III+IV 10s...60min. ● ● ● ● ● ●...

  • Page 87: A5 Meters

    A5 Meters Measured quantity ● ● ● ● ● ● Active energy I+IV, high tariff Active energy II+III, high tariff ● ● ● ● ● ● Reactive energy I+II, high tariff ● ● ● ● ● ● ● ● ● ●...

  • Page 88: B Display Matrices

    B Display matrices B0 Used abbreviations for the measurements Instantaneous values Name Measurement identification Unit Description Voltage system TRMS Voltage between phase L1 and neutral TRMS Voltage between phase L2 and neutral TRMS Voltage between phase L3 and neutral TRMS Voltage between phases L1 and L2 TRMS Voltage between phases L2 and L3...
  • Page 89 Name Measurement identification Unit Description Pst1N Short term flicker U1N, Averaging time 10min. 10min Pst2N Short term flicker U2N, Averaging time 10min. 10min Pst3N Short term flicker U3N, Averaging time 10min. 10min Pst12 Short term flicker U12, Averaging time 10min. 10min Pst23 Short term flicker U23, Averaging time 10min.
  • Page 90 Minimum and maximum of instantaneous values Name Measurement identification Unit Description U_MM Minimum and maximum value of U TRMS U1N_MM Minimum and maximum value of U1N TRMS Minimum and maximum value of U2N U2N_MM TRMS U3N_MM Minimum and maximum value of U3N TRMS U12_MM Minimum and maximum value of U12...
  • Page 91 Mean-values, trend and bimetal current Name Measurement identification Unit Description (t2) (mu) Mean-value 1 (t2) (mu) Mean-value 2 (t2) (mu) …. …. (t2) (mu) Mean-value 11 (t2) (mu) Mean-value 12 (t2) (mu) TR_M1 Trend mean-value 1 TR_M2 (t2) (mu) Trend mean-value 2 (t2) (mu) ….
  • Page 92 Graphical measurement displays Name Presentation Description Graphic of the power triangle consisting of: • Active, reactive and apparent power Px, Qx, Sx • Distortion reactive power Dx Px_TRIANGLE • Fundamental reactive power Qx(H1) • cos(φ) of fundamental • Active power factor PFx PF_MIN Graphic: Minimum active power factor PF in all 4 quadrants Cφ_MIN...
  • Page 93 Graphic: Odd harmonics 3 up to 49 + Total Harmonic HO_IX Distortion of all currents Graphic: Odd harmonics 3 up to 49 + Total Harmonic HO_UX (as HO_IX) Distortion of all voltages Graphic: Even harmonics 2 up to 50 + Total Harmonic HE_IX (as HO_IX) Distortion of all currents...

  • Page 94: B1 Display Matrices For Single Phase System

    B1 Display matrices for single phase system Display menu Corresponding matrix U_MM Pst1N UNE_MAX F_MM I_MAX IN_MAX P_MAX Q_MAX S_MAX P_TRIANGLE PF_MIN Cφ_MIN I> 1.1 / 1.2 I> 2.1 / 2.2 I> 3.1 / 3.2 ϑ 1.1 / 1.2 ϑ 2.1 / 2.2 ϑ...

  • Page 95: B2 Display Matrices For Split-Phase (Two-Phase) Systems

    B2 Display matrices for split-phase (two-phase) systems Display menu Corresponding matrix U1N_MM Pst1N UD12 OD12 U2N_MM Pst2N UD1N OD1N U_MM UD2N OD2N UNE_MAX I1_MAX I2_MAX IN_MAX IPE_MAX P_MAX / P1_MAX For PQ5000 Q_MAX / P2_MAX divided into S_MAX / Q1_MAX 2 images each F_MM / Q2_MAX P_TRIANGLE...

  • Page 96: B3 Display Matrices For 3-Wire System, Balanced Load

    B3 Display matrices for 3-wire system, balanced load Display menu Corresponding matrix U12_MM Pst12 UD12 OD12 U23_MM Pst23 UD23 OD23 U31_MM UR2R1 Pst31 UD31 OD31 F_MM UR21_MAX I_MAX P_MAX Q_MAX S_MAX P_TRIANGLE PF_MIN Cφ_MIN I> 1.1 / 1.2 I> 2.1 / 2.2 I>...

  • Page 97: B4 Display Matrices For 3-Wire Systems, Unbalanced Load

    B4 Display matrices for 3-wire systems, unbalanced load Display menu Corresponding matrix U12_MM Pst12 UD12 OD12 U23_MM Pst23 UD23 OD23 U31_MM UR2R1 Pst31 UD31 OD31 F_MM UR21_MAX I1_MAX I2_MAX I3_MAX IR2R1 IPE_MAX IR21_MAX P_MAX Q_MAX S_MAX P_TRIANGLE PF_MIN Cφ_MIN I> 1.1 / 1.2 I>...

  • Page 98: B5 Display Matrices For 3-Wire Systems, Unbalanced Load, Aron

    B5 Display matrices for 3-wire systems, unbalanced load, Aron Display menu Corresponding matrix U12_MM Pst12 UD12 OD12 U23_MM Pst23 UD23 OD23 U31_MM UR2R1 Pst31 UD31 OD31 F_MM UR21_MAX I1_MAX I2_MAX I3_MAX P_MAX Q_MAX S_MAX P_TRIANGLE PF_MIN Cφ_MIN I> 1.1 / 1.2 I>...

  • Page 99: B6 Display Matrices For 4-Wire Systems, Unbalanced Load

    B6 Display matrices for 4-wire systems, unbalanced load Display menu Corresponding matrix U1N_MM / U12_MM Pst1N UD1N UD12 OD1N OD12 U2N_MM / U23_MM Pst2N UD2N UD23 OD2N OD23 U3N_MM / U31_MM Pst3N UD3N UD31 OD3N OD31 F_MM / UR21_MAX UNB_UR2_UR1 I1_MAX / IN_MAX I2_MAX / IPE_MAX For PQ5000 divided into...

  • Page 100: C Logic Functions

    C Logic functions The principal function of the logical gates is given in the following table, for simplicity shown for gates with two inputs only. older symbols function symbol truth table plain text ANSI 91-1984 DIN 40700 (alt) Function is true if all input conditions are fulfilled Function is true if at least one of the input...

  • Page 101: Dfcc Statement

    Camille Bauer AG. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

  • Page 102: Index

    INDEX Bimetal current ............84 earth fault monitoring ..........81 harmonic analysis ............ 82 Alarming ............... 50 Load factors ............. 80 mean values and trend ..........84 meters ..............85 Commissioning ............. 28 system imbalance ............ 83 Configuration zero displacement voltage ........81 menu ................

This manual is also suitable for:

Linax pq3000Linax pq5000-1Linax pq5000-0

Table of Contents
