Joystick: Tools
The Joystick (right side of the screen) remains the same.
The purpose of this screen is to insert or remove press tools to/from the Tool rack. The sliders
govern which tool (by slot number) the loading mechanism will go to load / replace the press tool. It
can be programmed, by check box, to 'auto search' for a specific tool (as listed in the Tool Type
Box) if you desire when loading a tool. It will also auto search for an empty slot, if you desire and
check the box, to unload a tool when done with the appropriate task.
Tool ID's are also programmed using this screen.

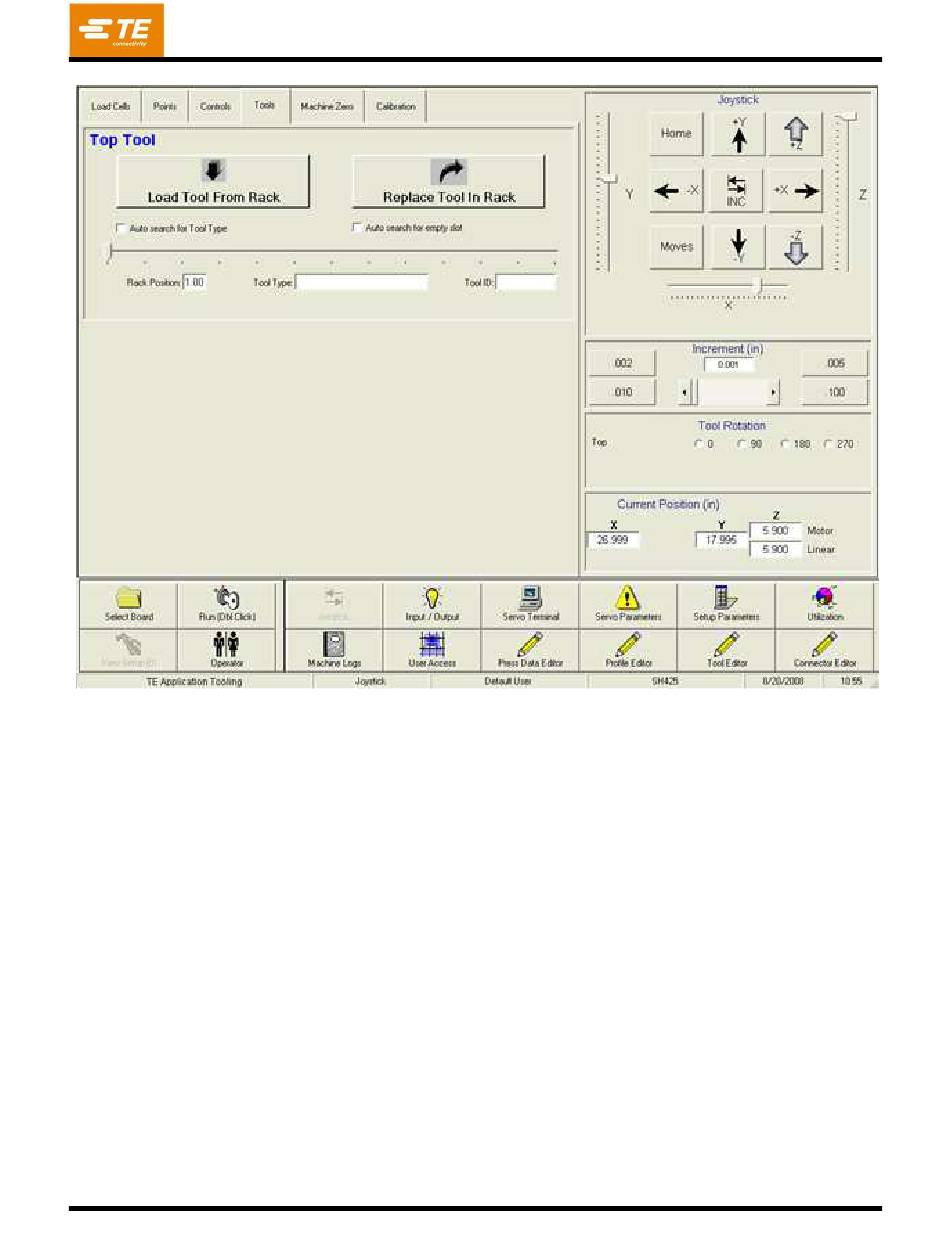

Figure 60
