TE Connectivity NanoMQS 2280687-1 Instruction Sheet

PROPER USE GUIDELINES

Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low
volume applications. A wide selection of powered application equipment for extended-use, production operations is available.

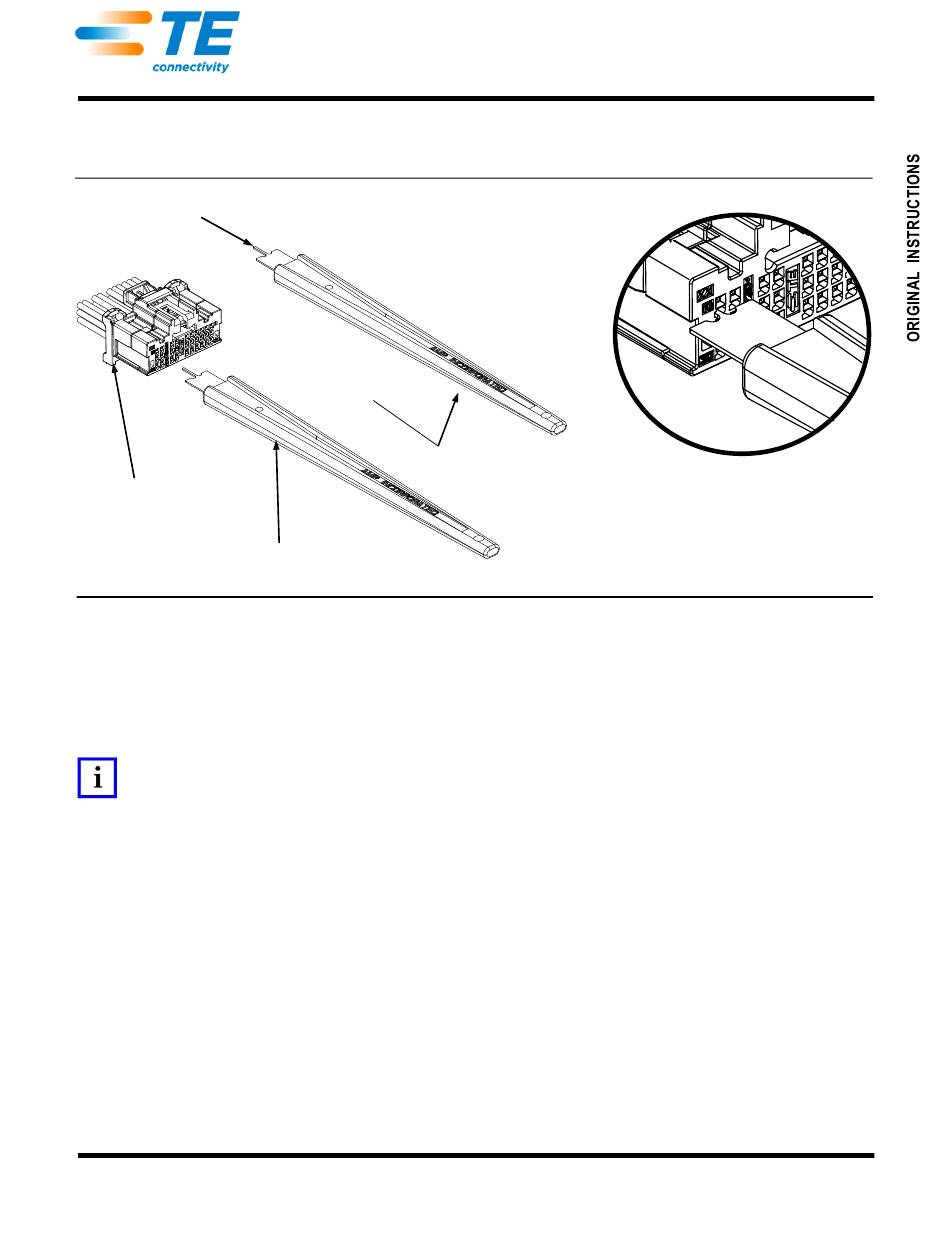

Lance Release Tip
NanoMQS Connector
Extraction Tool
1. INTRODUCTION
This instruction sheet describes the use of Extraction Tool 2280687-1. This tool is designed to remove
NanoMQS contacts (1703930-[ ] and 2272196-[ ] from NanoMQS plug assemblies.
Read these instructions thoroughly before attempting to remove any contacts.
NOTE
All dimensions are in millimeters [followed by inches in brackets]. Figures and illustrations are for reference only and are not
drawn to scale.

2. DESCRIPTION

Each tool features a handle marked with the specific part number and a contact lance release tip. The contact
lance release tip depresses the contact locking lance to allow extraction of the contact.

3. EXTRACTION PROCEDURE

These steps are recommended: see Figure 2.
1. Orient the tool as shown with respect to the connector and wire being extracted.
2. Insert tool tip into BACK of lance cavity until tool stops. The tip of the tool will bottom in the back of the
housing. See detail for correct placement.
3. Holding tool in position, grip wire and pull contact out of housing.
4. Remove tool from housing.
5. Repeat as required.
