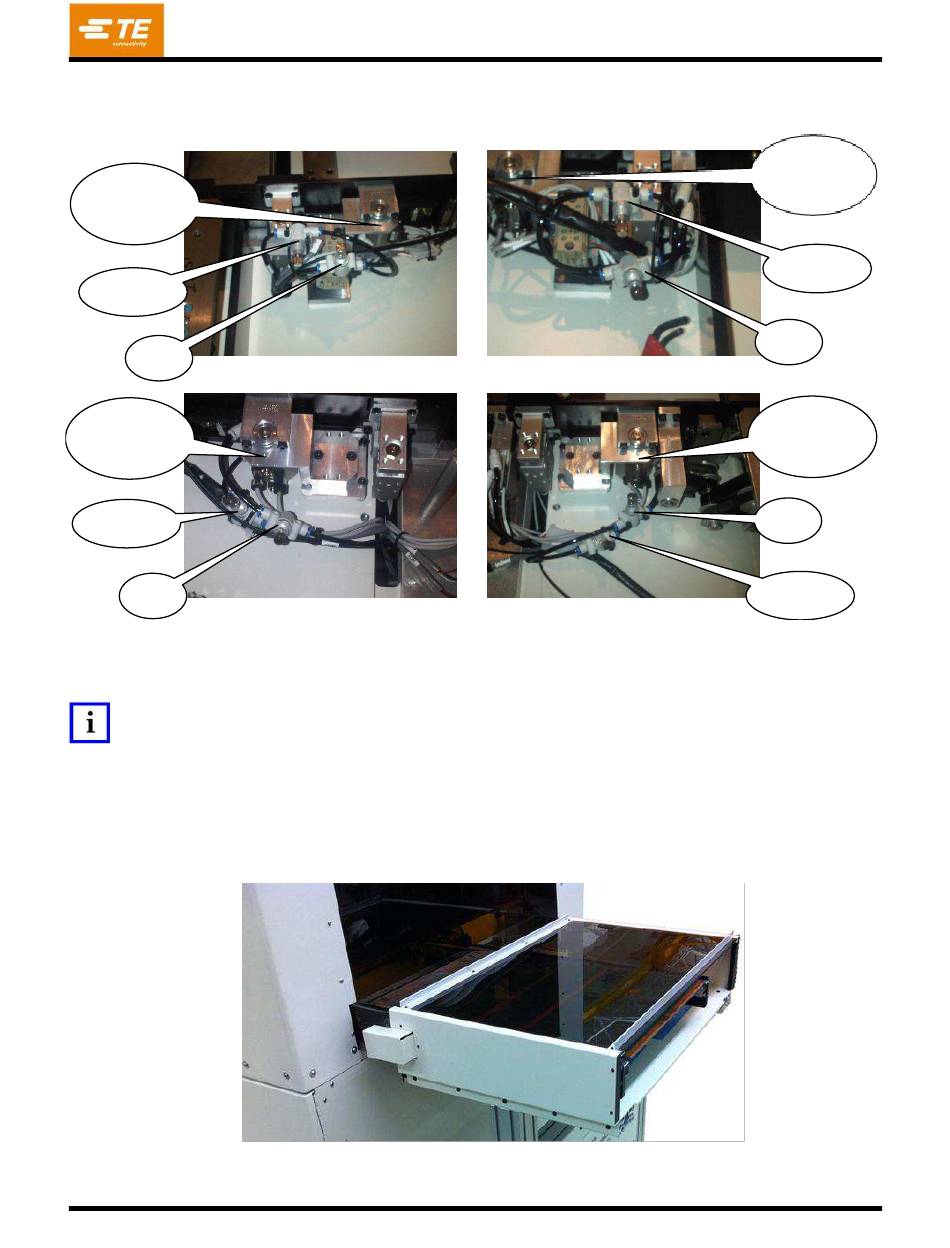

down, for front & back) for adjusting clamp motion are located under the tabletop near the conveyor
controllers. Once initially adjusted, it is unlikely the clamp flow controls will require future adjustment.
Lift Cylinder
Down
Up
Flow Controls – Left Rear
Lift Cylinder
Down
Up
Flow Controls – Left Front
9. CONVEYOR EXTENSION - AUTOLOAD OPTION
NOTE
The following portion of this manual may not apply to your machine configuration.
Conveyor Extensions (TE P/N 2018690-1) are available to provide safe operator loading and/or unloading
stations. They can also be used as an interface between machines to provide sufficient input staging length for
longer boards to be processed in-line. The extension is a simple edge guide belt conveyor mechanically
connected to the CAPI-6T main or infeed conveyor rails and belt motor. The CAPI-6T conveyor input or exit
sensors are moved to the end of the extension rails. The extension has no electrical controls or components.
Guarding on the extension prevents operator access to areas inside the CAPI-6T through the conveyor
openings. See Figures 43 and 44.
Rev A
Flow Controls – Right Rear
Flow Controls – Right Front
Figure 42
Autoload Conveyor Extension
Figure 43
409-32048
Lift Cylinder
Down
Up
Lift Cylinder
Up
Down
41 of 64
