TE Connectivity 2399600-1 Instruction Sheet

Sde-sa commercial hand tool assembly with die assembly

Advertisement

Quick Links

Proper use guidelines
Cumulative trauma disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional
use and low-volume applications. A wide selection of powered application equipment is available for extended-use production operations.
The SDE-SA hand tool is a commercial-grade tool. Product crimped with this tool meets the cable barrel crimp height requirement for hand
tools in the appropriate 114 application specification but might not comply with other feature parameters of the specification.

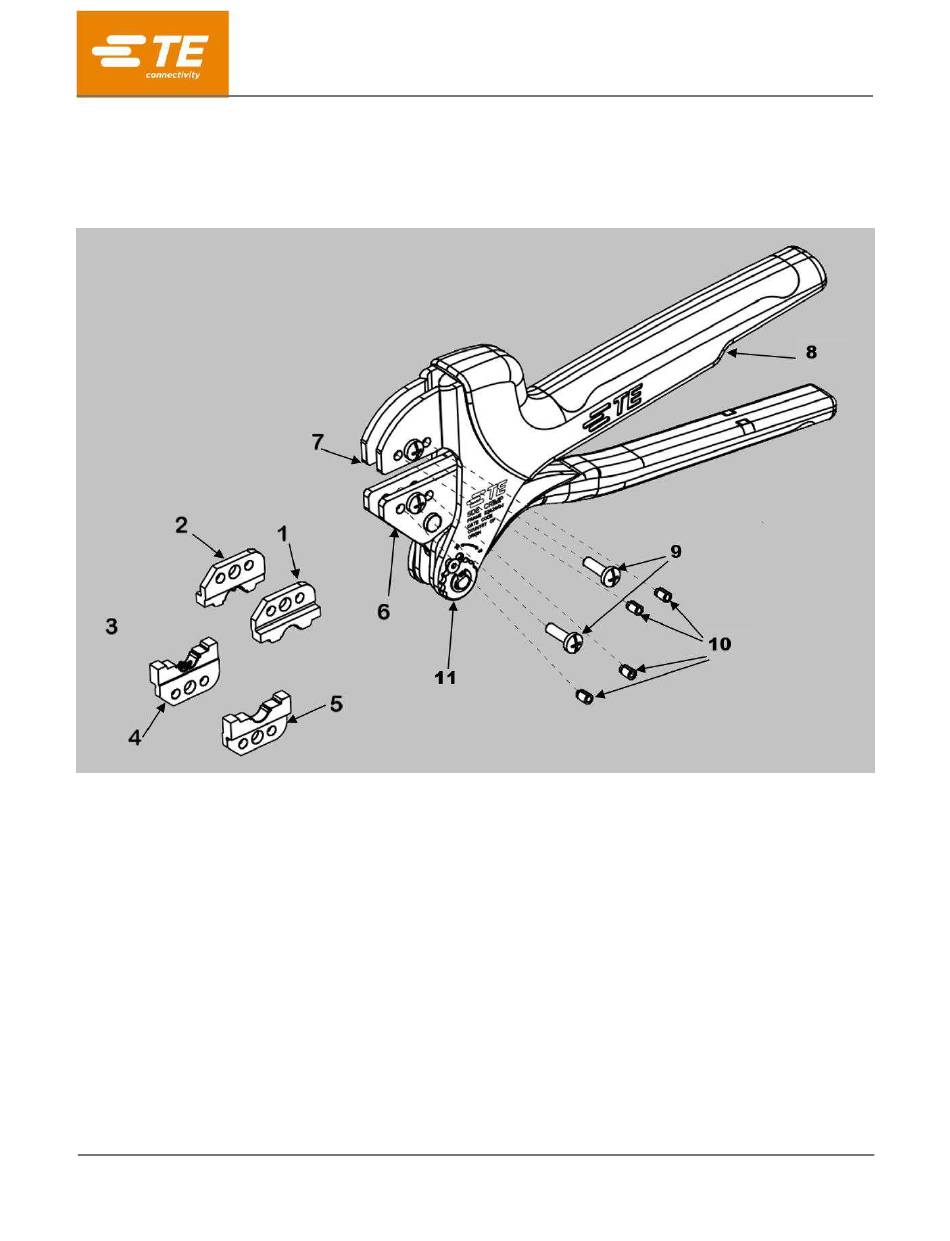

Figure 1: SDE-SA Commercial Hand Tool Assembly 2399600-1 with Die Assembly 2399600-2
1 Insulation crimper (upper die)
2 Cable crimper (upper die)
3 Die set 2399600-2
4 Cable anvil (lower die)
© 2023 TE Connectivity Ltd. family of companies.
All Rights Reserved.
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
SDE-SA Commercial Hand Tool Assembly
PN 2399600-1 with
Die Assembly PN 2399600-2
5 Insulation anvil (lower die)
6 Moving jaw
7 Stationary jaw
8 Handle
PRODUCT INFORMATION +1 800 522 6752
408-35337
Die-retaining screws (2)
9
Die-retaining pins (4)
10
Ratchet adjustment wheel
11
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
Instruction Sheet
23 MAY 2023 Rev A
1 of 7

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2399600-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TE Connectivity 2399600-1

  • Page 1 1 of 7 For latest revision and Regional Customer Service, All Rights Reserved. visit our website at www.te.com. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
  • Page 2 408-35337 Introduction SDE Crimp Commercial Hand Tool Assembly 2399600-1 for the GG2 Speed 223 Shield and Insulation Crimp is the tool and die set shown in Figure 1. The tool consists of the SDE Crimp Frame Assembly 2362810-1 (instruction sheet 408-35143) and the die assembly listed in Figure 1. This tool is used to crimp the terminal part numbers listed in Table 1.
  • Page 3 408-35337 Installing the die set 1. Open the tool handles. 2. Remove the two die-retaining screws from the tool jaws (see Figure 1). 3. Insert the cable and insulation anvils in the moving jaw of the tool frame with their chamfered sides and the marked surfaces facing outward.
  • Page 4 408-35337 Crimping NOTE The tool is provided with a crimp adjustment feature. Initially, the crimp height should be verified as specified in Figure 3. Refer to section 6, Inspecting the crimp height, and section 7, Adjusting the ratchet, to verify crimp height before using the tool. 1.
  • Page 5 Crimp height inspection is performed using a micrometer with a modified anvil, commonly referred to as a crimp-height comparator. TE Connectivity does not manufacture or market crimp height comparators. Detailed information on obtaining and using crimp-height comparators can be found in instruction sheet 408-7424.
  • Page 6 408-35337 Adjusting the ratchet The ratchet is preset prior to shipment, but it is important to verify the crimp height using a micrometer or caliper. Use and wear can cause the tool to go out of adjustment. Inspect the crimp height and adjust the ratchet, if necessary, on a regular basis.
  • Page 7: Maintenance And Inspection

    408-35337 Maintenance and inspection Maintenance  Remove dust, moisture, and other contaminants with a clean, soft brush or soft, lint-free cloth. Do not use objects that could damage the dies or tool.  When the tool is not in use, keep the handles closed to prevent objects from becoming lodged in the dies.

This manual is also suitable for:

2399600-2
