Transport criteria:
Height:
2-Stage conveyor, reversible and adjustable speed (0.1 m/s to 0.254 m/s) [0 to 10 inch/s].
Transport system accuracy: ±0.5 mm.

8. AUTOLOAD OPTION FOR THE CAPI-6T

NOTE
The following portion of this manual may not apply to your machine configuration.
The Autoload option used with an adjustable width conveyor will allow either in-line or stand-alone operation
and increases the throughput capabilities of the CAPI-6T over the CAP-6T. PCBs are loaded and secured
automatically. Once a press sequence has completed, the Autoload conveyor unloads the PCB. See Figure 37.
Rev A
Left to right, Fixed front rail, Single lane.
Floor to conveyor 952.5 ±12.7mm (37.5 ±.5 in.) SMEMA interface.

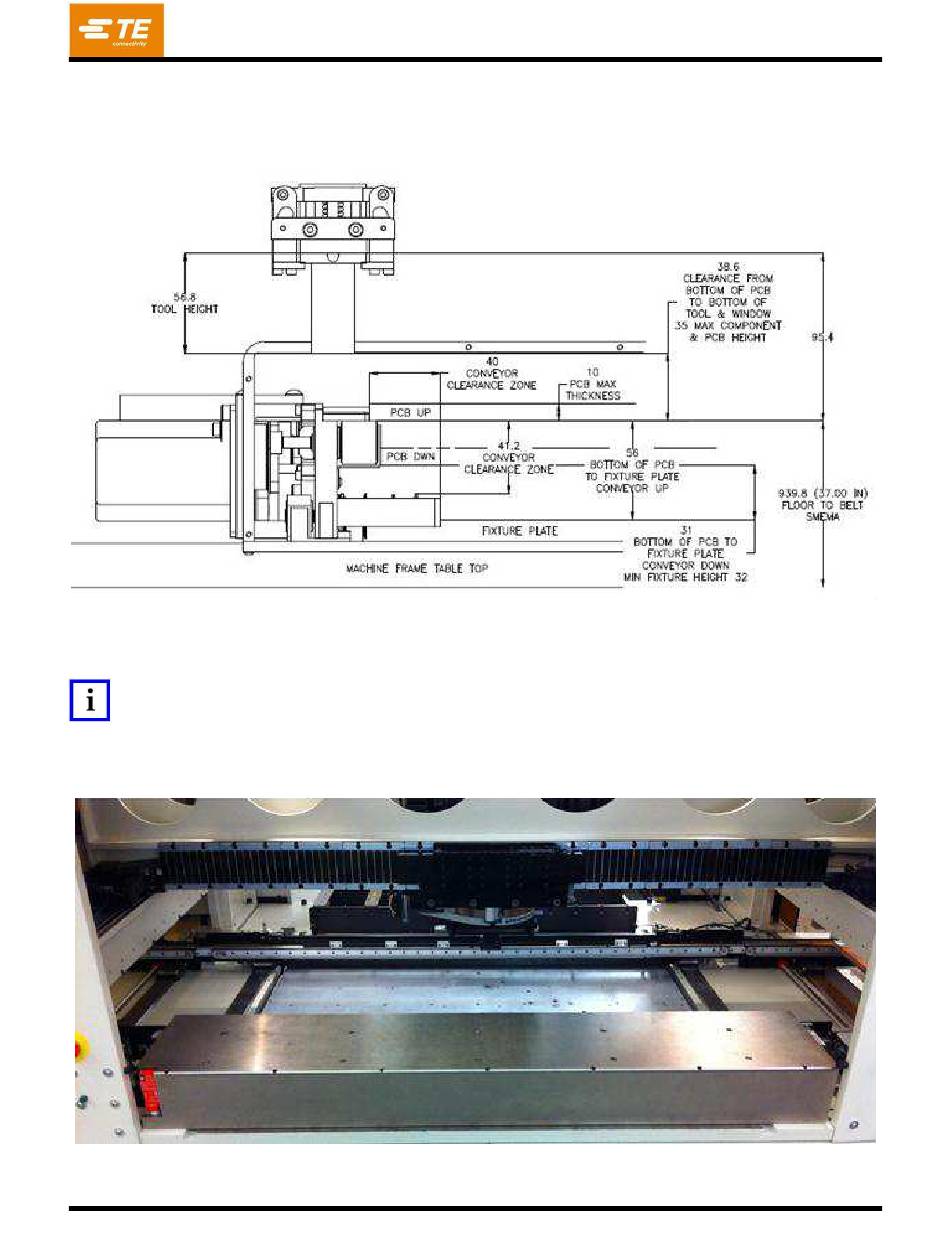

Figure 36
Conveyor – Viewed from the Front Side of CAPI-6T
Figure 37
