Point - The plotted point number.
Xbar - The average force for all connectors of the charted type on the current board.
Var - The force variability for all connectors of the charted type on the current board. May be R (range) or S
(std. dev.).
# Fail - The number of connectors that the force was outside of the spec limits for the charted connector type
on the current board.
Time - Time of day the board was run.
Date - Date the board was run.
Profile - Name of profile used to press the charted connector type.
Oper - Operator name logged on when the board was run.
Prf Rev - Revision of profile used to press the charted connector type.
Brd Rev - Revision of board file.

6.4. Options

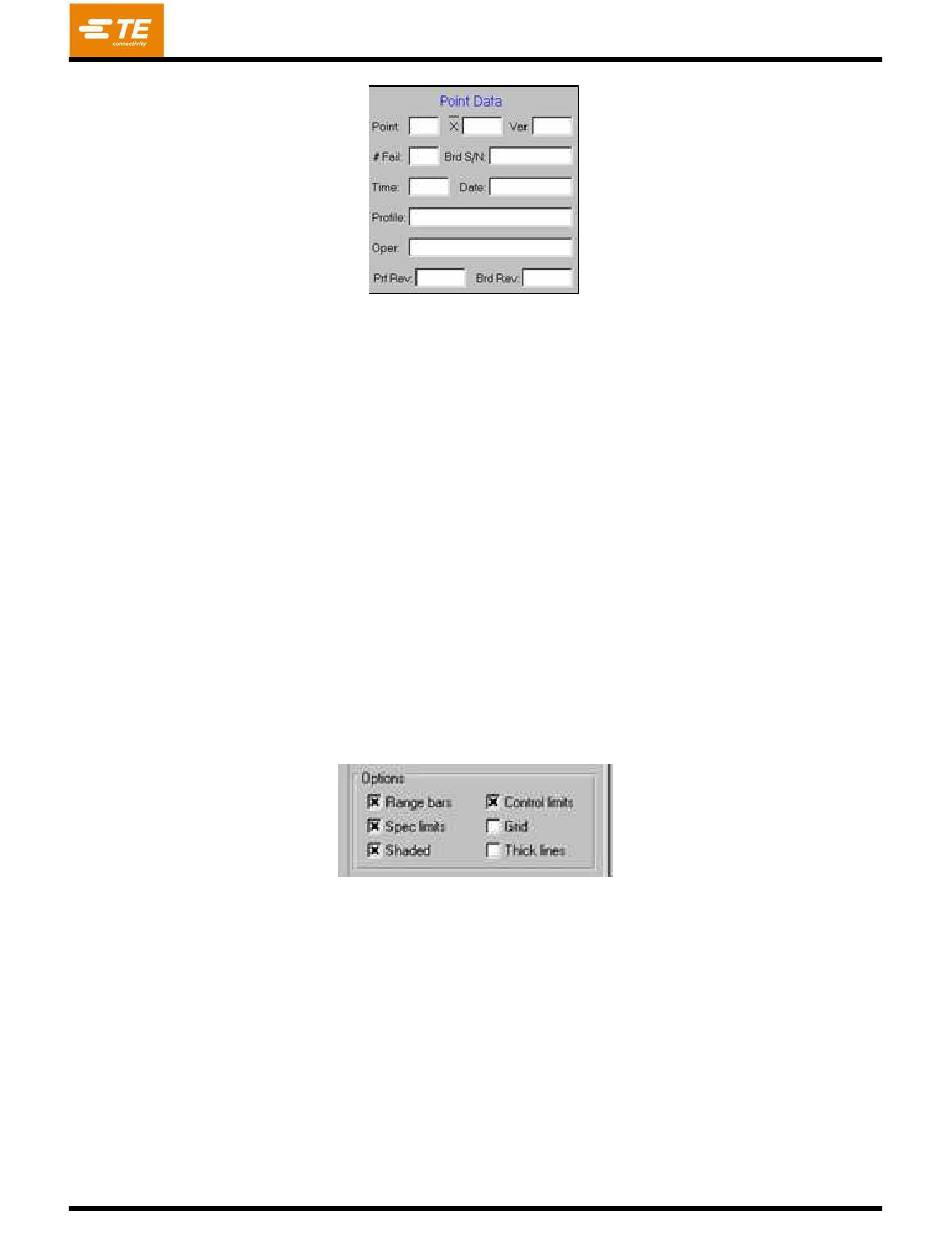

See Figure 31 for the following options.
Range Bars - The range for the data whose average forms a point on the X-bar chart can be displayed on the
X-bar chart. It is represented as a vertical line through the plotted point, with a short horizontal line at the
maximum and minimum readings for the averaged data. Checking this box enables range displaying.
Control Limits - Checking this box enables the displaying of control limits on the charts.
Spec. Limits - Checking this box enables the displaying of specification limits (max and min force) on the
charts.
Grid - This check box enables grid line display on the graphs.
Shaded - This adds shading between the spec limits and control limits.
Thick Lines - This thickens the plotted lines.
