See figure 6.3.3.2 for the Fingertip thread pattern for custom design.
Caution
Custom fingertips must be fixed with the thread pattern illustrated (a minimum of two SHCS are required), never modify the Gripper without
Robotiq's consent first.

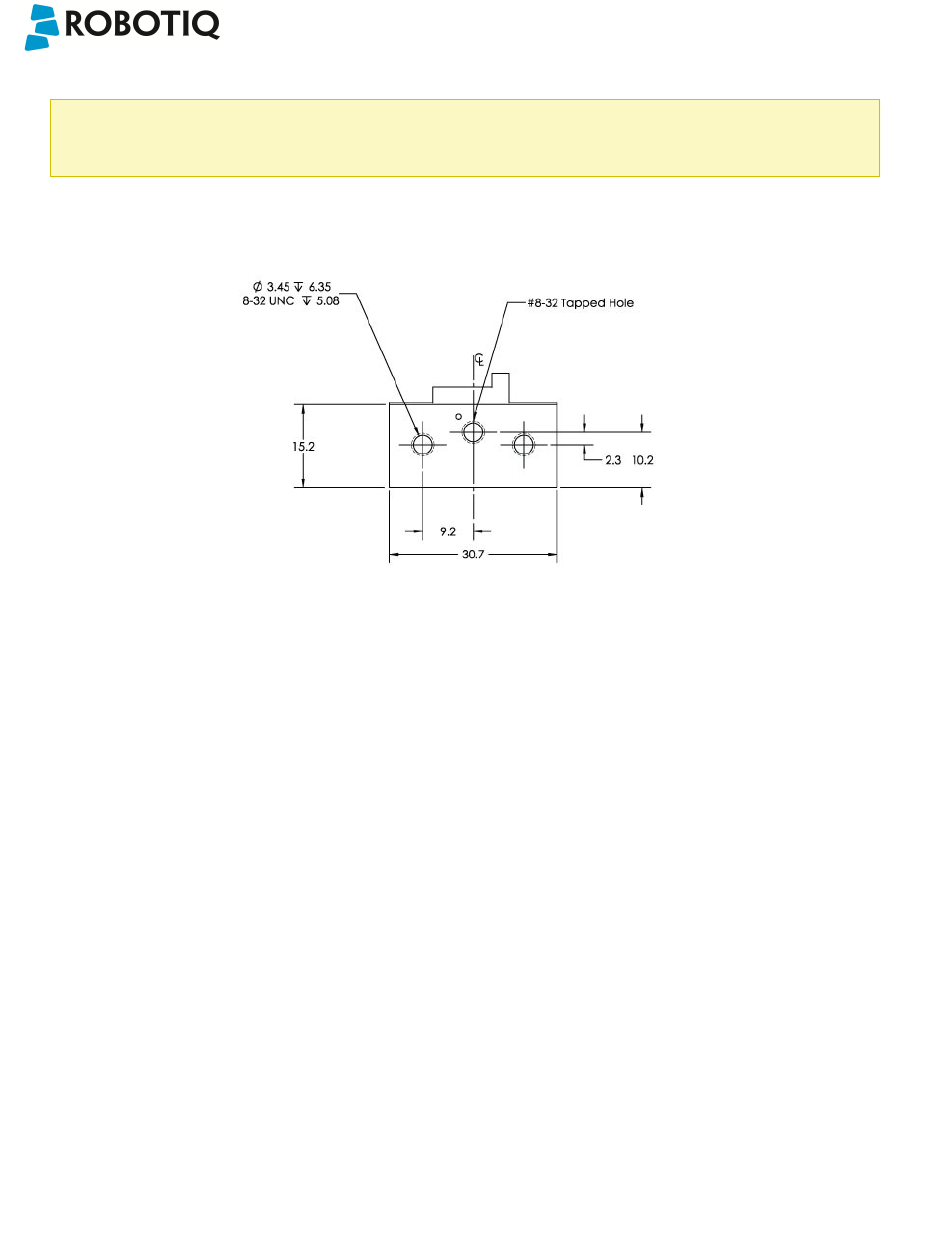

Figure 6.3.3.2 : Bolt pattern of the Fingertip for the 3-Finger Adaptive Robot Gripper Fingers.
