Handling: Take The Unit Off The Pallet - Rational VarioCooking Center 112 Installation Manual

Handling: Take the unit off the pallet

112
2
1
211/311
2
1
v08
Observe the weight of the units. Use carrying
aid to avoid injuries. Wear appropriate ppe's
Type 112:
Type 112+:
1
Type 211:
Type 211+:
Type 311:
2
Type 311+:

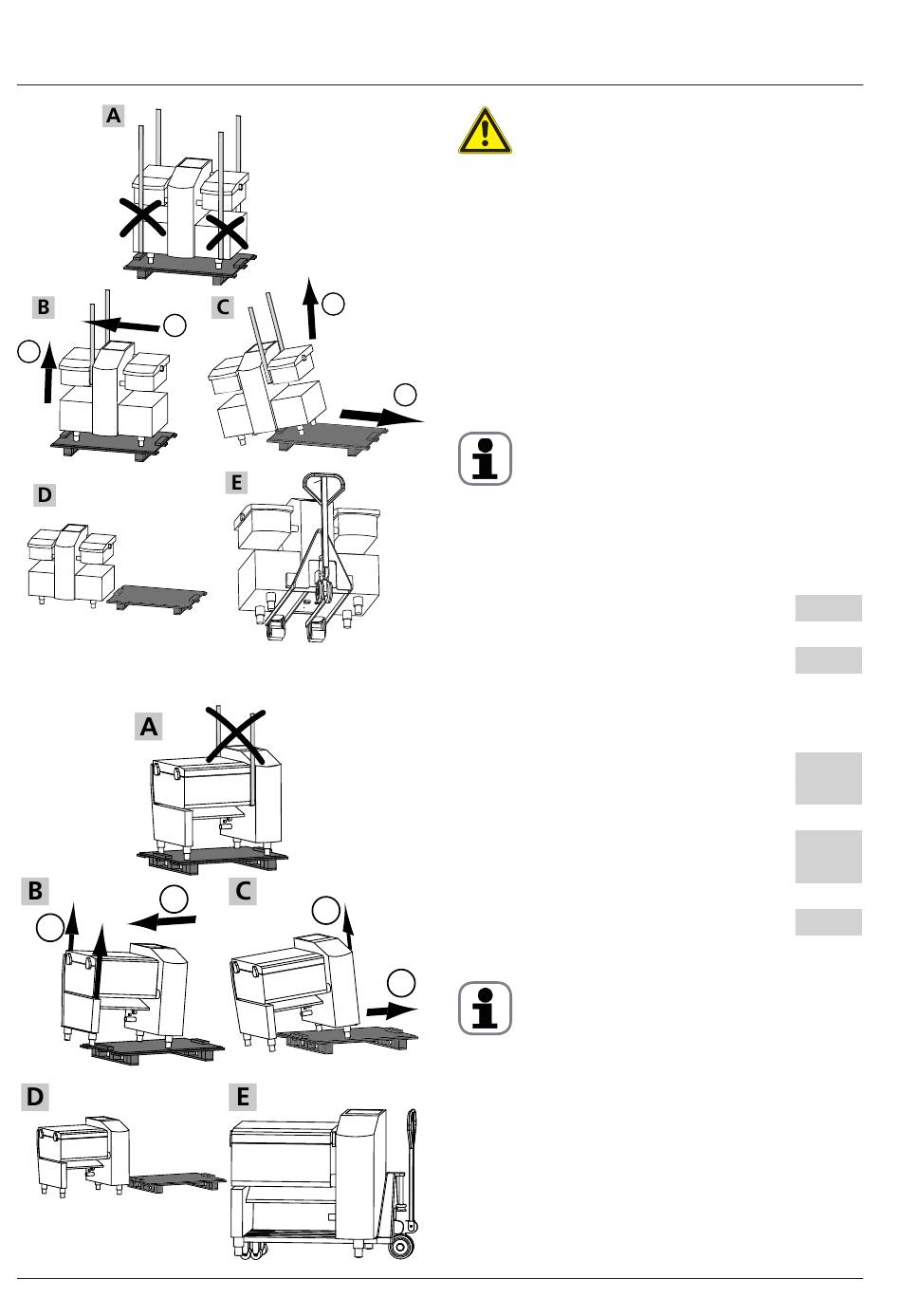

In order to avoid damages observe procedure shown
on pictures A to E.
For 112 models it is forbidden to lift the unit at the
bottom of the cabinet.
For 211 and 311 models it is forbidden to lift the
unit at the axle of the pan or of the lid.
Procedure:
• Lift up unit at one side using carrying aids as
shown on
• Pull the unit off to the side
• Lift up unit at the side which is still standing on
the pallet and pull out pallet.
• Lower the unit.
• For transporting the units without pallets use the
1
pallet jack as shown on
2
To move 211 - 311 models without palette the fol-
lowing must be observed. Use two wood bars with
a minimum length of the unit and put them on the
pallett jack.
Run pallet jack in lengthways underneath the unit.
Thus the weight of the unit is evenly allocated to
the cross bars.
Observe center of gravity - danger of tilt-
ing!
- 6 -
