Installation: Opening The Unit - Rational VarioCooking Center 112 Installation Manual

Installation: Opening the unit

1
3
2
2
1
3
1
2
v08
1
2
4
3
- 10 -

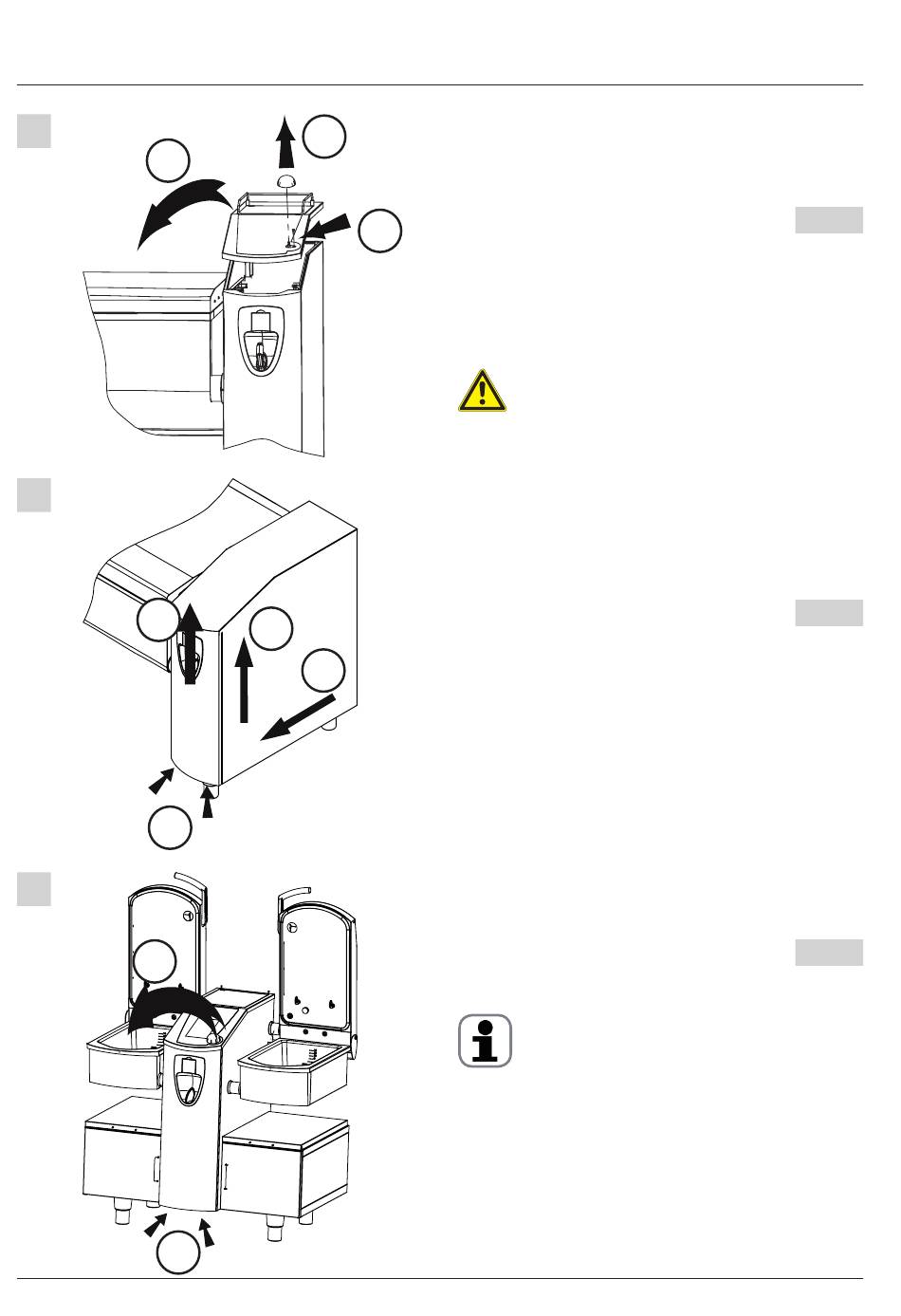

Acessing the unit:
Step 1
This step is valid for all kind of units
(1) Pull off central dial
(2) Loosen screw (3 mm hex socket)
(3) Now you can remove the control panel.
The control panel is connected with a cable
mass. to the electric board. Take care not to dam-
age it.
Step 2
(211 & 311 models)
To access the whole electric board you must now
remove the front panel and the side panel. To do so:
(1) Loosen both screws under the front panel (3 mm
hex socket)
(2) Lift front panel without removing it completely!
(3) Slide side panel to the front
(4) Remove side panel by lifting it
Step 2
(112 models)
(1) Once the control panel removed and standing
either on the left pan or left lid
(2) Loosen both screws under the front panel (3mm
hex socket)
Attention
When reassembling the control panel, make sure
to apply enough pressure on the left side corner in
order to ensure the latch engages. Thus facilitating
a sufficient sealing of the technical compartment.
Pict.1
Pict. 2
Pict. 3
