Water discharge: Discharge to a gutter

1
v08
Observation:
A gutter installation is not necessary for our units.
If despite that your client wants this, please observe
the following:
Requirements
Min 3 %
• Drain pipe must have the same diameter as
the output pipe of the unit, no reduction in
diameter should be inserted.
• The drain pipe must have a constant slope of at
least 3%
• A clear outflow of 2 cm (1") must be provided
between the drain pipe and the gully grille.
Although we recommend 50 mm (2") distance
in order to make cleaning easier.
Advice
In case of evacuation down to a gully you should
avoid as much as possible to drive the pipe output
underneath the unit main compartment.
- 22 -

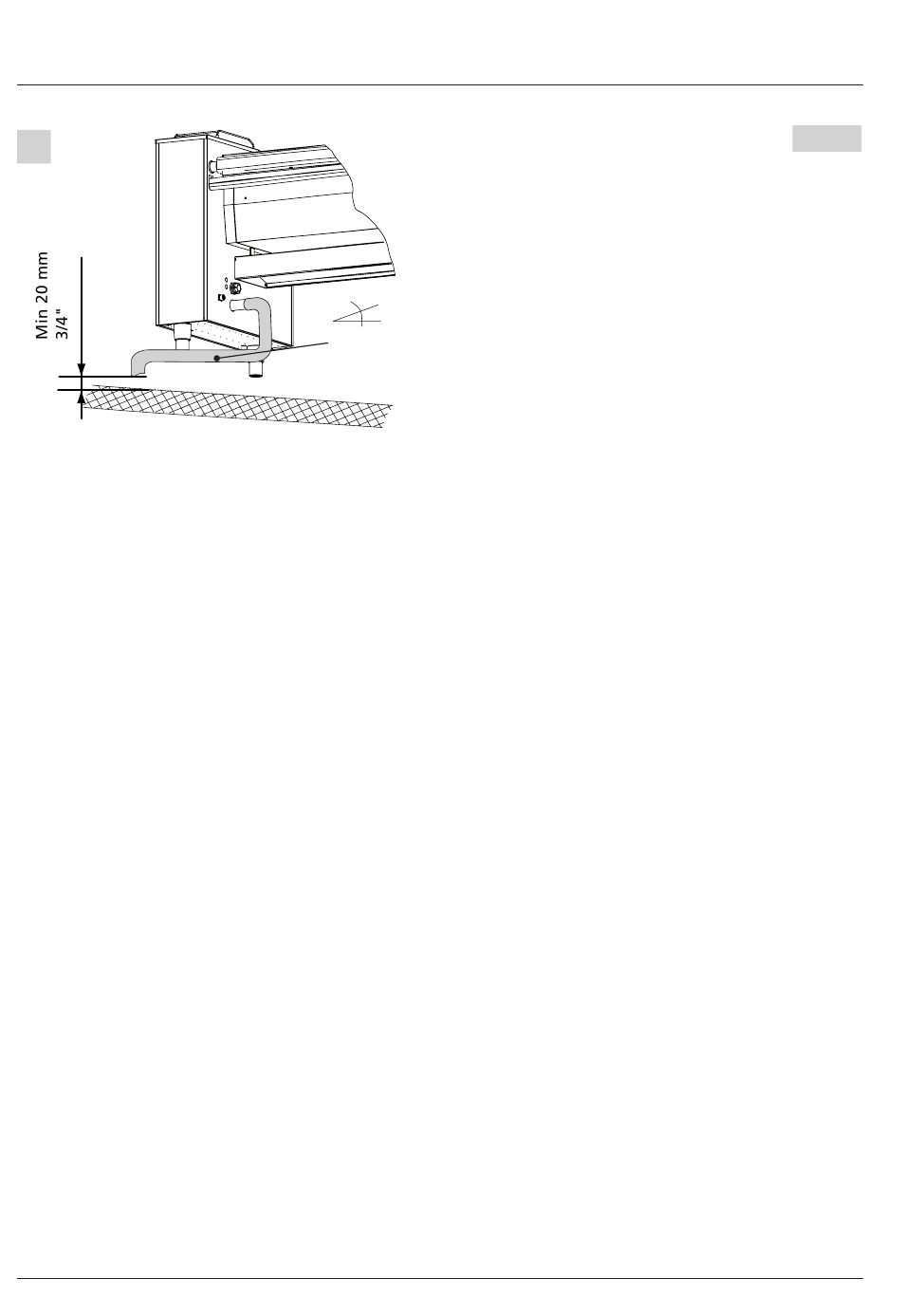

Pict. 1
