Power Supply - Rational VarioCooking Center 112 Installation Manual

Power supply

1
2
1
3
v08
Danger !
1
When connecting the unit check the power
2
supply voltage matches the one the unit was
built for. See the unit plate.
3
Observe colour coding of the wires. Wrong
connection can cause electric shock or damage of
the unit.
(e.g. PCB boards)
Common information see page 14

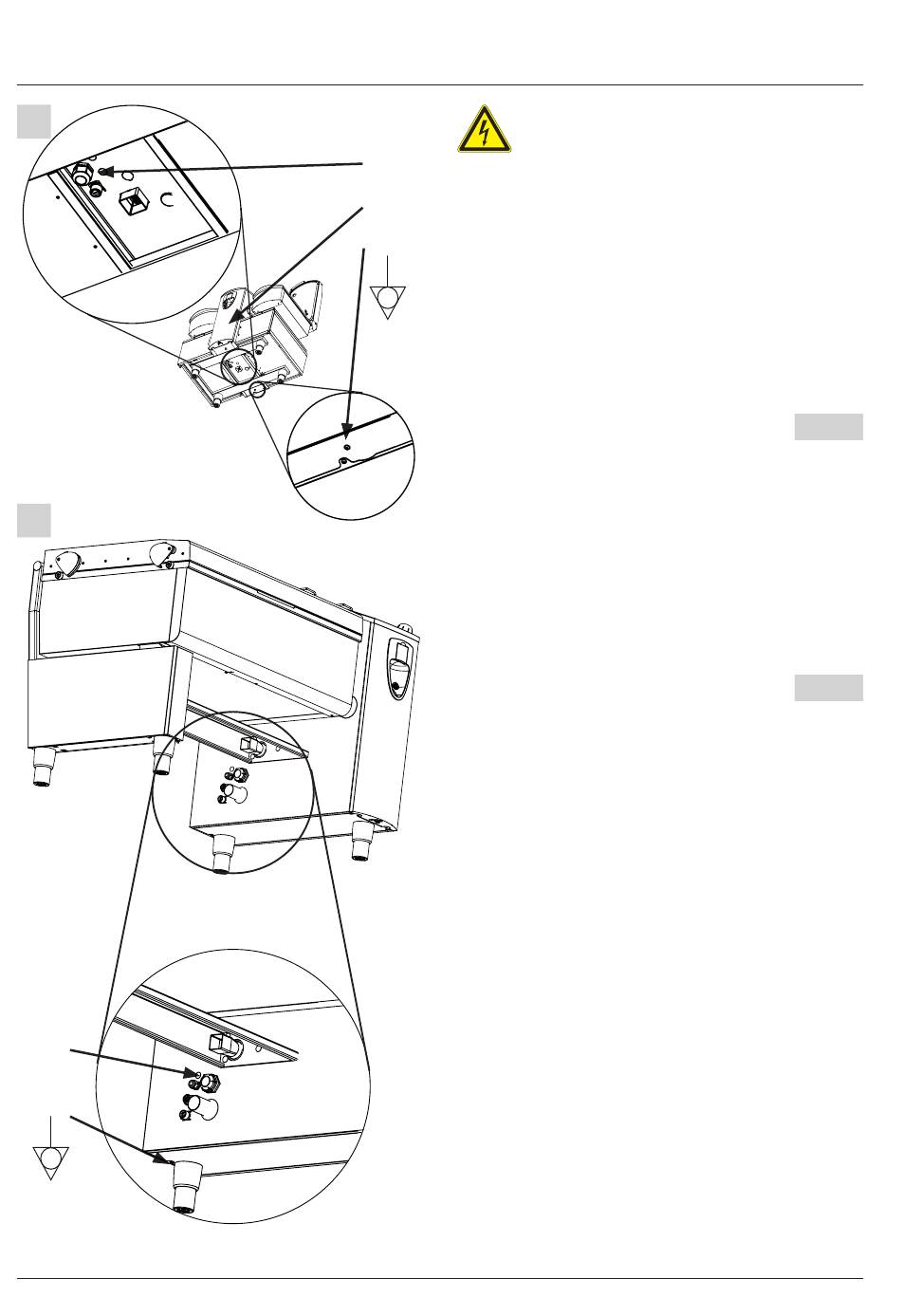

Connecting 112 models:
The main terminals are located inside the electrical
compartment and are accessible after removing the
front panel (2).
(1)
(2)
(3)
Connecting 211 or 311 models:
The main terminals are located inside the electrical
compartment and are accessible after removing the
side panel.
Connect the supply as follows:
Yellow/green terminals : Earthing
Blue terminals: Neutral (Only when 3NAC)
Grey terminals : L1,L2,L3, (non-phase-sequence-
dependent)
The screw for the earth bonding (3) is located on
the bottom side of the unit. Connect the wire of the
earth bonding to this place.
- 16 -
Pict. 1
Cable gland for power cord
Front panel
Earth bonding
Pict. 2
