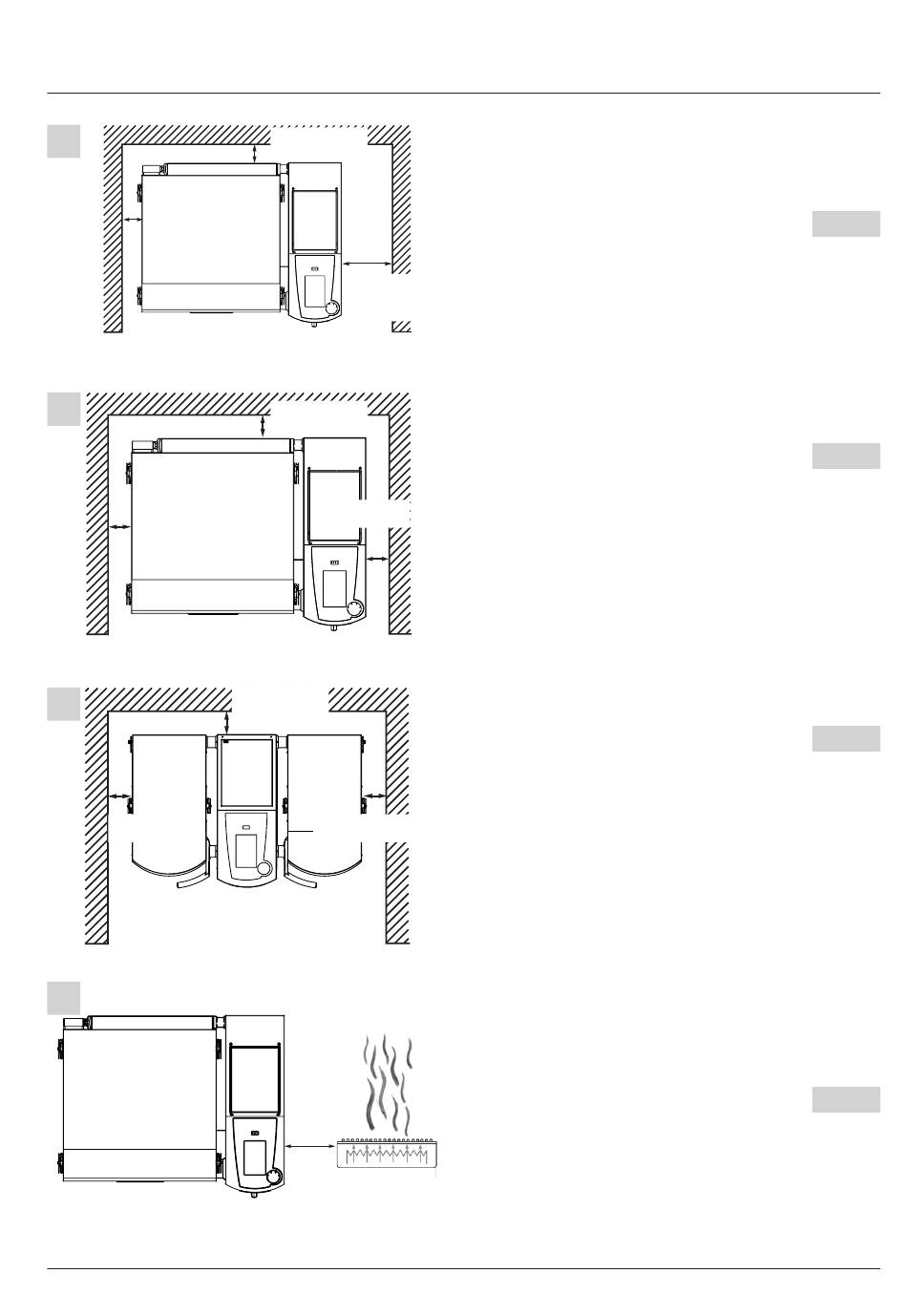

Installation: Recommended minimum clearance

1
50 mm / 2"
2
50 mm / 2"
3
50 mm / 2"
4
50 mm / 2"
500 mm
20"
50 mm / 2"
50 mm / 2"
50 mm / 2"
50 mm / 2"
350 mm
14"
Engineer access
We recommend a distance of 500 mm (20") on the
right hand side of the unit for carrying out mainte-
nance work.
Minimum clearance for 211 & 311 models
Right, left & back space 50 mm as shown
Minimum clearance for 112 models
Right, left & back space 50 mm as shown
Protection against heat radiation
Minimum space on the right side is 350 mm,
(13 3/4"), as shown on
- 9 -
Fig. 1
Fig. 2
Fig. 3
Pict. 4
