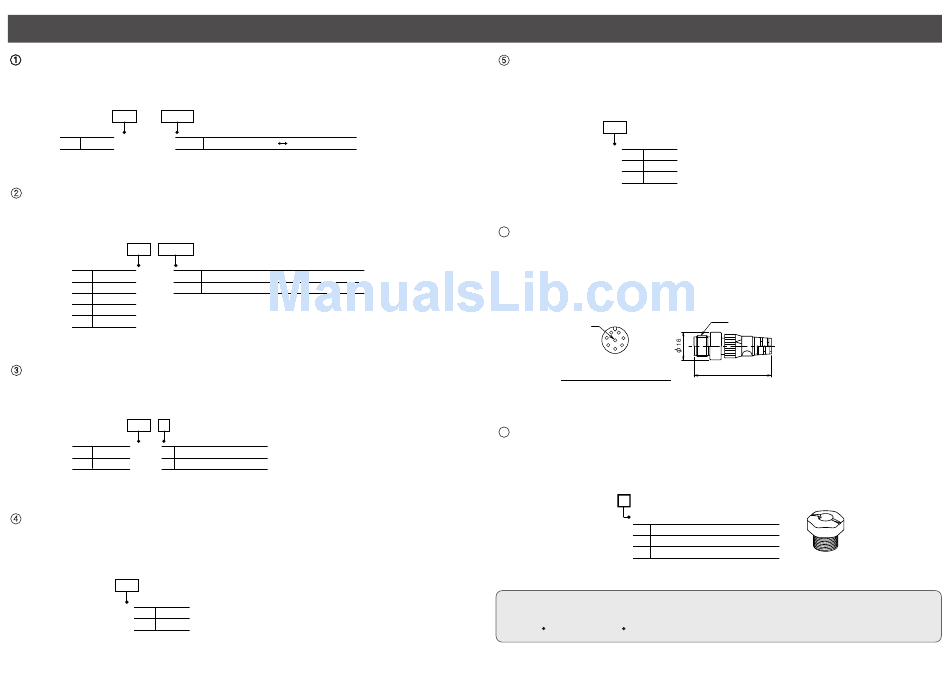

Option

Cable with Ethernet communication connector
For details, refer to subsection "Wiring" ( page 12 ) in section "EX500" in this manual.
How to order
EX9-AC 020 EN- PSRJ
Cable length (L) Connector specification
020 2 [m] PSRJ
Branch cable with M12 connector
For details, refer to subsection "Wiring" ( page 17 ) in section "EX500" in this manual.
How to order
EX500-AC 030 - SSPS
Cable length (L) Connector specification
003 0.3 [m]
SSPS Socket side : Straight, Plug side : Straight
005 0.5 [m] SAPA Socket side : Angle, Plug side : Angle
010 1 [m]
030 3 [m]
050 5 [m]
Power supply connector cable
For details, refer to subsection "Wiring" ( page 13 ) of section "EX500" in this manual.
How to order
EX500-AP 050 - S
Cable length (L) Connector specification
010 1 [m] S Straight
050 5 [m] A Angle
Output Cable
For details, refer to subsection "Wiring" ( page 35 ) of section "EX9 series General Purpose
Output Block" in this manual.
How to order
EX9-AC 010 -7
Cable length ( L )
010 1 [m]
030 3 [m]
40
M12 plug(straight) RJ45 connector
Power Supply Cable ( for power input connector of Power Block )
For details, refer to subsection "Wiring" ( page 37 ) of section "EX9 series General Purpose
Output Block" in this manual.
How to order
EX9-AC 010 -1
Cable length ( L )
010 1 [m]
030 3 [m]
050 5 [m]
6 Terminal Plug
Connected to C1 ( or 0 ) of SI unit when Input unit manifold is unused. ( If this terminal plug
is not used, COM LED of GW unit does not light on. )
How to order
EX500- AC000- S
8
2
1
3 7
4 6
5
Plug Connector Pin Layout
7 Waterproof cap
Mounted on unused ports of GW unit, input block, power block and output block.
The proper use of this waterproof cap can achieve IP65 Enclosure.
How to order
EX500-AW
Connector specification
ES M8 connector ( socket ) /10 pcs.
TP M12 connector ( plug ) /1 pc.
TS M12 connector ( socket ) /10 pcs.
NOTE
Tighten the waterproof cap by the specified tightening torque.
( 0.05N m for M8, 0.1N m for M12 )
M12
44.7
41
