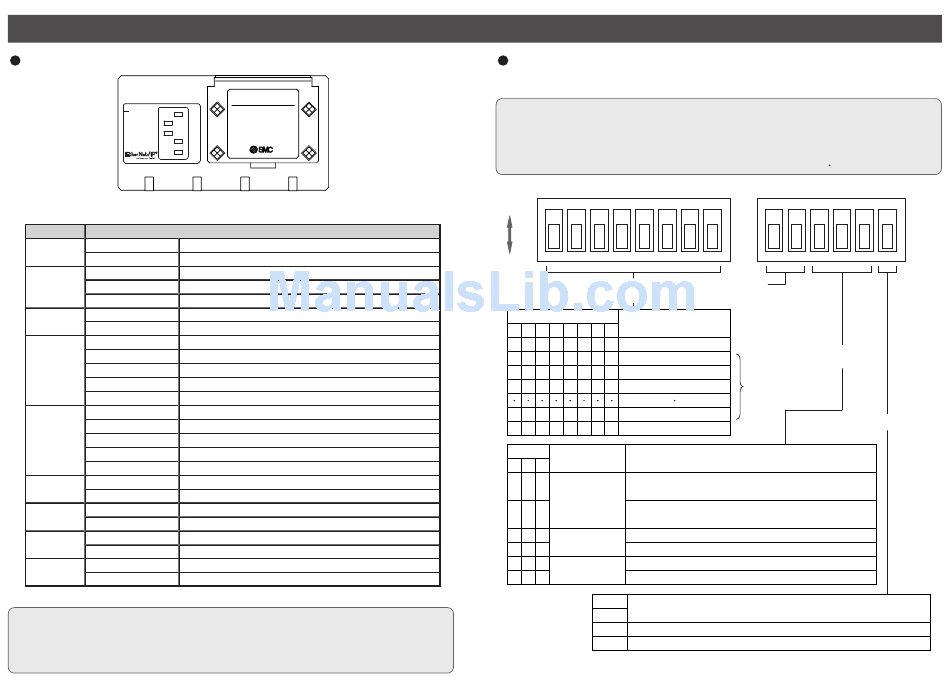

Display/Switch Setting

Display
LAN
PWR
LINK
100
MS
NS
COM A COM B
Display
Off The power supply for solenoids lowering
PWR
Green lights up The power supply for solenoids normal
Off The power supply off/initialized
LINK Green lights up Ethernet communication established
Green flashes Data sent/received
Off Communication at 10Mbps
100
Green lights up Communication at 100Mbps
Off The power supply off
Green lights up Operating normally
MS Green flashes Setting error
Red flashes Recoverable internal error
Red lights up Unrecoverable internal error
Off The power supply off/IP address not set
Green flashes EtherNet/IP-level communication not established
NS Green lights up Multiple EtherNet/IP-level communications established
Red flashes Multiple EtherNet/IP-level communications time out
Red lights up IP address duplicated
Off No input data
COM A
Green lights up Input data received
Off No input data
COM B
Green lights up Input data received
Off No input data
COM C
Green lights up Input data received
Off No input data
COM D
Green lights up Input data received
NOTE
When connecting manifold valve only without connecting Input unit manifold, LEDs of
COM A to D do not light. To make them light, connect a terminal plug to the unused
connector of SI unit ( "C1" or "0" ).
18
GATEWAY UNIT
EX500 SERIES
COM C COM D
Content
Switch setting
Open the station number switch protective cover and set the switches with a
sharp-pointed watchmakers screwdriver etc.
NOTE
1. Be sure to turn off the power before setting the switches.
2. Be sure to set these switches before use.
3. After opening and closing the station number switch protective cover, tighten the
screws by proper tightening torque. ( Tightening torque : 0.6N m )
SW1
ON
1
0
1 2 3 4 5 6
IP address
192.168.0.X
SW1
X
1 2 3 4 5 6 7 8
0 0 0 0 0 0 0 0 Remote control *
1 0 0 0 0 0 0 0 1
2
0 1 0 0 0 0 0 0
3
1 1 0 0 0 0 0 0
254
0 1 1 1 1 1 1 1
1 1 1 1 1 1 1 1 DHCP mode *
SW2
Item
3 4 5
AUTO : The communication setting is automatically
0 - -
selected.
Communication
setting
MANUAL : The communication setting follows
1 - -
1 0 - Communication Communicated at 10Mbps
speed
1 1 - Communicated at 100Mbps
1 - 0 Communication Communicated at half duplex
method
1 - 1 Communicated at full duplex
SW2
6
0 The output signal is cleared when the communication error occurs.
1 The output signal is held when the communication error occurs.
SW2
7 8 1 2 3 4
Reserved area
Set it to off
1
Communication
setting
Manual set up
of IP address * 3
2
Content
the setting result by the switch No. 4 and 5.
Content
5 6
CLR/HOLD
