Input Unit Manifold Part Names

The Input unit manifold consists of Input unit, input block (s), end block and DIN rail.
The input block up to 8 can be connected ( 16 points ).
Any combination of input blocks ( for M8 connector, M12 connector and 8-point-
integrated type ) is acceptable.
Note Do not mix sensor input specifications ( PNP and NPN ).

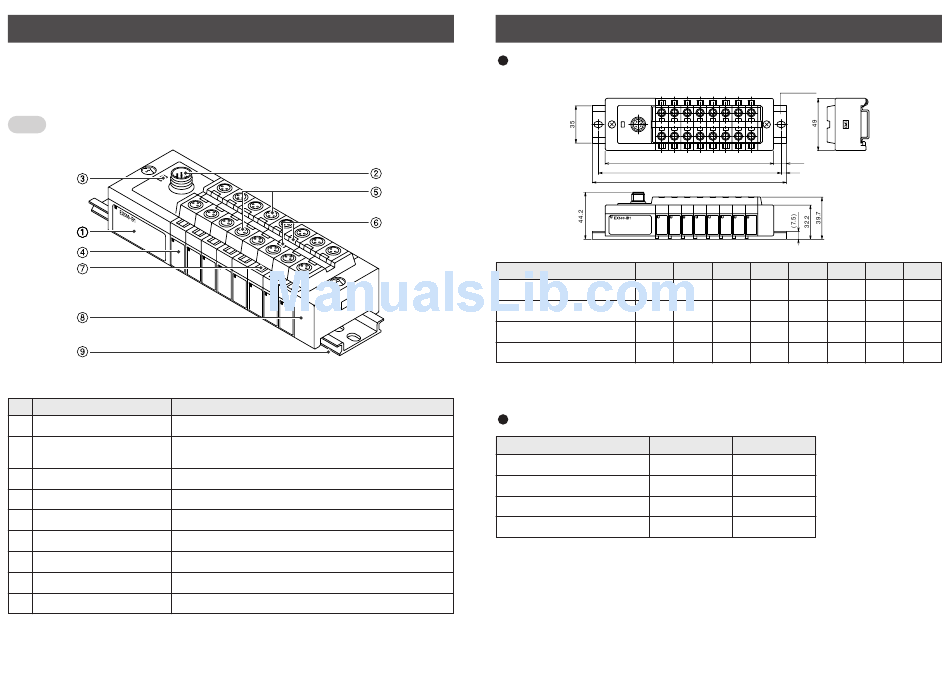

Figure shows the configuration when only input blocks for M8 connector are connected.
No. Part name
1 Input unit Unit to communicate with GW unit or SI unit.
2
Communication To be connected with branch cables from GW unit or
connector SI unit ( branch cable with M12 connector ).
3 Power LED Indicates the power supply status.
4 Input block Unit for sensor signal input.
5 Sensor connector Connects with sensor.
6 Indicator LED Indicates sensor signal status.
7 Marker To be used for writing input No. etc.
8 End block Composes the end of Input unit manifold.
9 DIN rail To be mounted with Input unit manifold.
Note1 : For wiring method, refer to subsection "Wiring" ( page 30 ) of section "Input Unit
Manifold" in this manual.
Note2 : For display, refer to "Display" ( page 31 ) in section "Input Unit Manifold" in this manual.
26
Application
( Note1 )
( Note2 )
( Note1 )
( Note2 )
Dimensions ( unit : mm )
When only input blocks for M8 connector are connected
L2 ( Rail mounting pitch: 12.5 )
Stations 1
L1 [mm] : Rail length 98 110.5
L2 [mm] : Mounting pitch 87.5
L3 [mm] : Manifold length 74
L4 [mm] 12
When only input blocks of 8-point-integrated type are connected
Stations
L1 [mm] : Rail length
135.5
L2 [mm] : Mounting pitch
L3 [mm] : Manifold length
L4 [mm]
DIN Rail
L3 (L4)
5
L1
2 3 4 5 6
123 135.5 148 160.5
100 112.5 125 137.5 150
86 98 110 122 134
12 12.5 12.5 13 13
1 2
185.5
125 175
110 158
12.5 13.5
7 8
173 185.5
162.5 175
146 158
13.5 13.5
