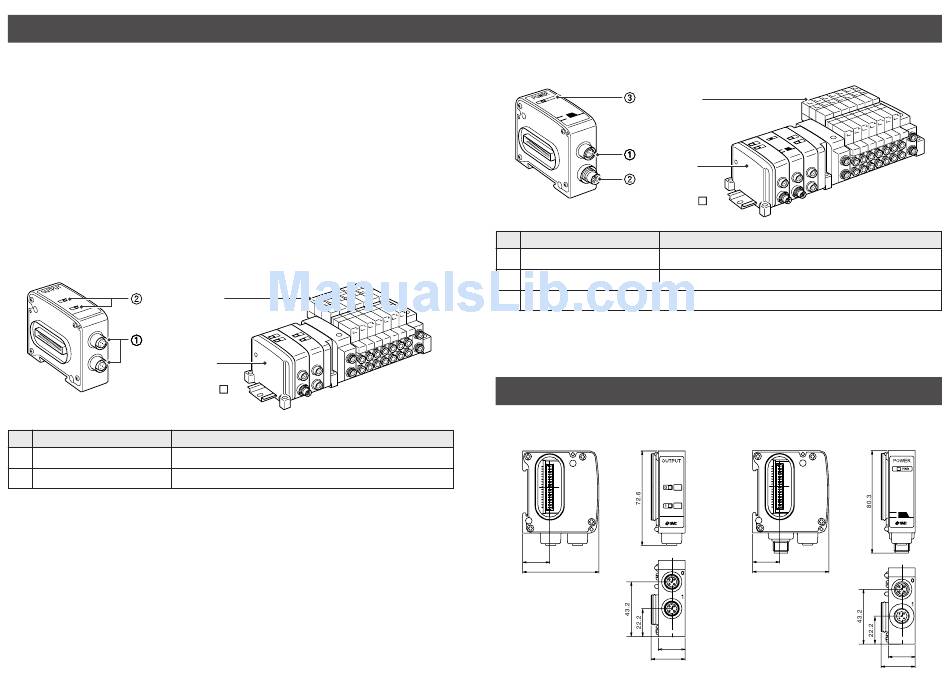

EX9 Series General Purpose Output Block Part Names

The EX9 series general purpose output block is the unit to operate solenoid valve, relay,
etc. in combination with VQC and SV ( tie-rod ) series valve and applicable SI unit.
There are two types ---- one type is for low wattage load ( EX9-OET1 or EX9-OET2 ) that
outputs signals by receiving power supply from SI unit, and the other type is for high
wattage load ( EX9-OEP1 or EX9-OEP2 ) that outputs signals by receiving power supply
from outside. The type for high wattage load is used in combination with the power block
( EX9-PE1 ) connected with external power supply. As the low-wattage-load type is
powered from SI unit, the wattage of load is limited to 1.0W
12W, use the power block and the high-wattage-load type.
Note : When connected with EX500 series.
1. EX9-OET1/EX9-OET2/EX9-OEP1/EX9-OEP2
VQC series
SI unit for
VQC series
( EX500-Q
No. Part name
1 Output connector Connects with output device.
Indicator LED Indicates the output status.
2
Note1 : For wiring method, refer to subsection "Wiring" ( page 35 ) of section "EX9 Series
General Purpose Output Block" in this manual.
Note2 : For display, refer to subsection "Display" ( page 39 ) of section "EX9 Series General
Purpose Output Block" in this manual.
32
. For a load up to
( Note )
02 )
Application
( Note1 )
( Note2 )
2. EX9-PE1
VQC series
SI unit for
general purpose
output block
( EX500-Q
No. Part name
1 Power supply connector Unused
Power input connector Supplies power for output devices.
2
Power LED Indicates the power supply status.
3
Note1 : For wiring method, refer to subsection "Wiring" ( page 35 ) of section "EX9 Series
General Purpose Output Block" in this manual.
Note2 : For display, refer to subsection "Display" ( page 39 ) in section "EX9 Series General
Purpose Output Block" in this manual.
Dimensions ( unit : mm )
1. EX9-OET1/EX9-OET2/
EX9-OEP1/EX9-OEP2
21.2
59.8
21
26.7
02 )
Application
( Note1 )
( Note2 )
2. EX9-PE1
21.2
59.8
PWR PWR
21
26.7
33
