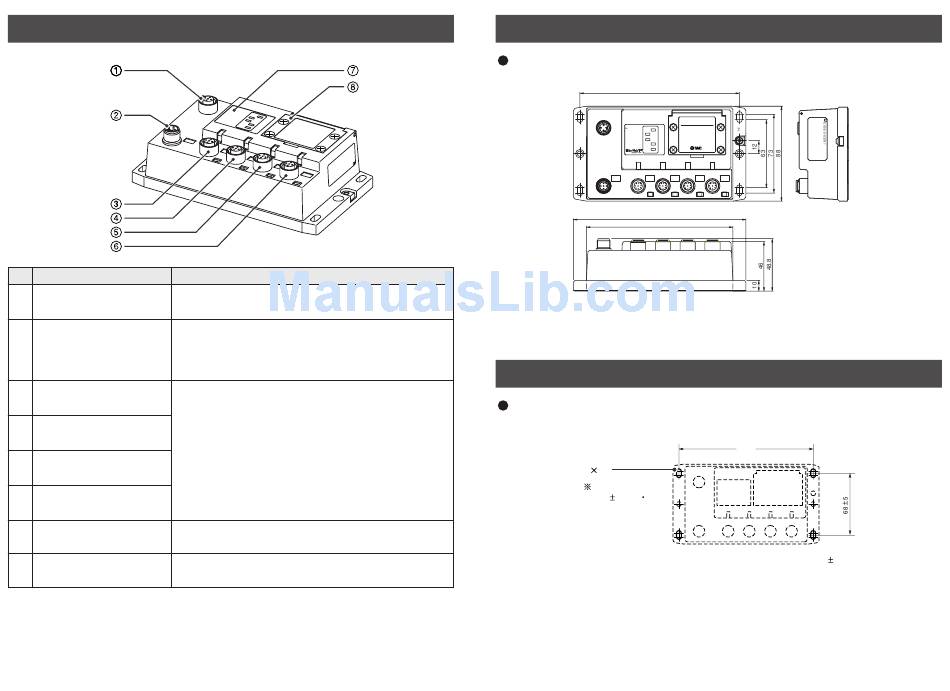

EX500 Part Names

No. Name
1 Communication Connect with EtherNet/IP line.
connector
2 Power supply connector Supply power for output devices such as solenoid
valve, for input devices such as sensor, and for
controlling GW/SI by using power supply connector
cable.
3 Communication port A
( COM A )
4 Communication port B
( COM B )
Connect SI unit ( manifold valve ) or Input unit by
using branch cable with M12 connectors.
5 Communication port C
( COM C )
6 Communication port D
( COM D )
Display Display the power supply status and communication
7
status with PLC.
8 Station number switch Set IP address and communication method by using
protective cover the switches under this cover.
Note1 : For wiring method, refer to subsection "Wiring" ( page 11 ) of section "EX500" in this
manual.
Note2 : For display and setting method, refer to subsection "Display/Switch Setting" ( page 18 )
of section "EX500" in this manual.
6
Application
( Note 1 )
( Note1 )
( Note1 )
( Note2 )
( Note2 )
Dimensions ( unit : mm )
EX500 body
148
LAN
PWR
LINK
100
MS
NS
24VDC COM A COM B
160
136
Installation ( unit : mm )
Thread mounting
Secure at four positions with screws with head diameter of 5.2 or more and thread
length of 15mm or more.
4 M5
Tightening torque :
(1.5 0.2) N m
Cutout Dimensions for Mounting ( Tolerance :
GATEWAY UNIT
EX500 SERIES
COM C COM D
148
0.2 )
7
