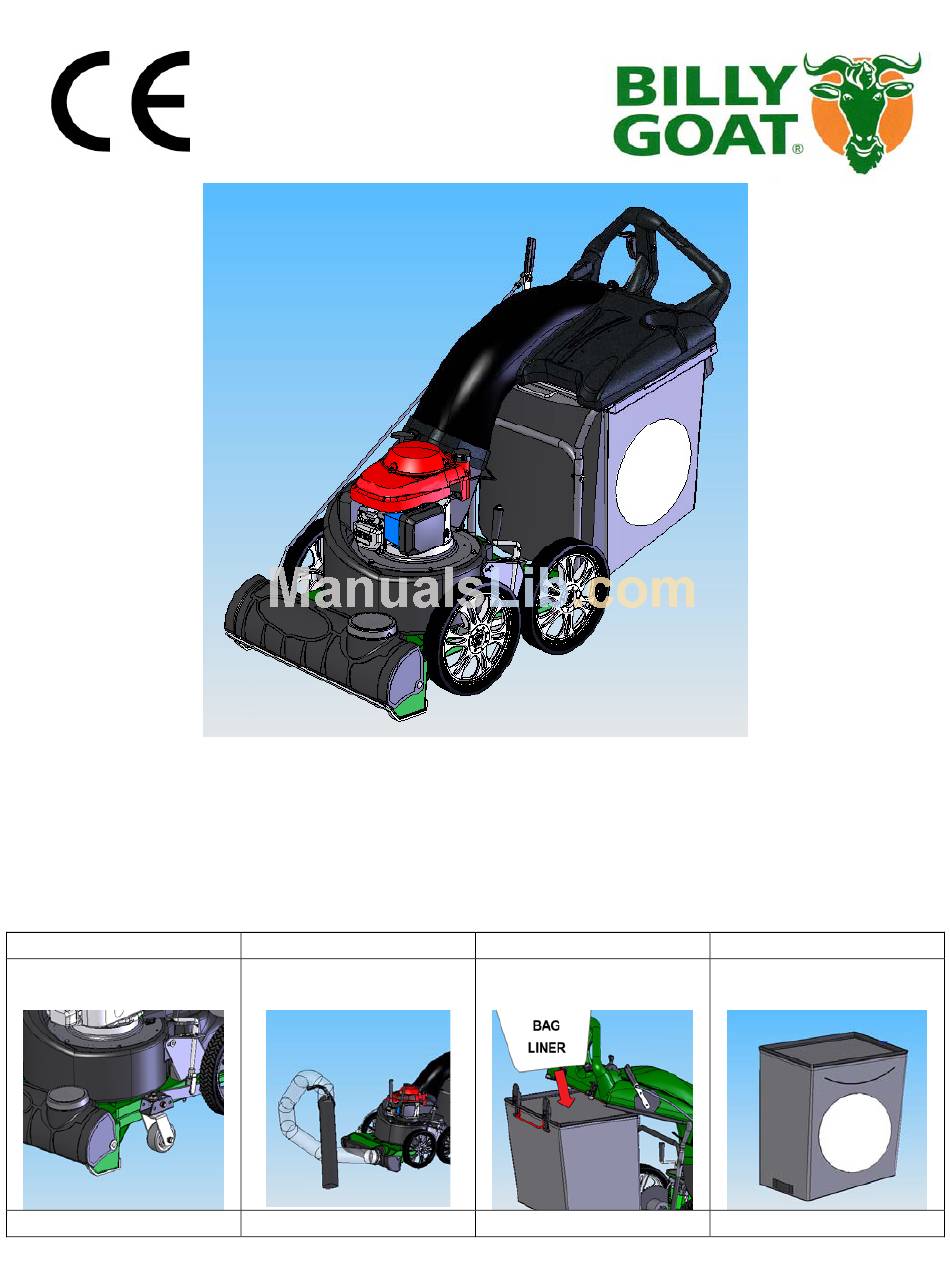

BILLY GOAT
Accessories
Caster Kit
Use on hard surface
for maneuverability.
P/N 840129
Part No 840186
MV650H PUSH Vacuum Owner's Manual
®
MV650H PUSH Vacuum
Owner's Manual
Hose Kit
For vacuuming hard
to reach areas.
P/N 840116
Bag Liner Kit
To collect leaves,
thatch, and grass.
P/N 840134
1
Felt Bag Kit
Use on all dusty
conditions.
P/N 840194
Form No F012507A
Advertisement
Table of Contents
Related Manuals for Billy Goat F012507A
Summary of Contents for Billy Goat F012507A
- Page 1 P/N 840129 Part No 840186 ® MV650H PUSH Vacuum Owner’s Manual Hose Kit Bag Liner Kit To collect leaves, thatch, and grass. P/N 840116 P/N 840134 Felt Bag Kit Use on all dusty conditions. P/N 840194 Form No F012507A...
-
Page 2: Table Of Contents
MV650H PUSH Vacuum Owner’s Manual ABOUT THIS MANUAL THANK YOU for purchasing a BILLY GOAT manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your MV Vacuum in top running order. Read this manual carefully before assembling, operating, or servicing your equipment. -
Page 3: Serial Plate Data
Sound at Operators ear COMMON REPLACEMENT PARTS • Bag. P/N 840189. Original equipment replacement bag. • Skid. P/N 840041. Nozzle wear guard skid. Form No F012507A MV650 Honda GSV190AA1A 6.5 (4.85 kW) 1.6 qt (1.5 L) 0.69 qt (0.65L) 28 lbs (12.7 kg) -
Page 4: General Safety Instructions And Symbols
This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. This symbol indicates important information that will prevent damage to your BILLY GOAT MV Vacuum. This symbol indicates the engine oil level should be checked before operating this equipment. - Page 5 ALWAYS remove spark plug wire when servicing equipment to prevent accidental starting. ALWAYS check fuel lines and fittings frequently for cracks or leaks. Replace if necessary. ALWAYS keep hands and feet away from moving or rotating parts. ALWAYS store fuel in approved safety containers. Form No F012507A Part No 840186...
-
Page 6: Sound Data
Barometric Pressure: INTENDED USE Your BILLY GOAT ® MV Vacuum is designed for vacuuming leaves, grass clippings, and other types of organic litter, as well as, debris mixed with cans, bottles and small amounts of sand; however, vacuuming cans, bottles and sand will affect the longevity of your machine. -
Page 7: Instruction Labels
25). INSTRUCTION LABELS The labels shown below were installed on your BILLY GOAT missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown. - Page 8 MV650H PUSH Vacuum Owner’s Manual MV Vacuum Assembly Drawing Part No 840186 Form No F012507A...
-
Page 9: Parts List
MV650H PUSH Vacuum Owner’s Manual PARTS LIST Form No F012507A Part No 840186... -
Page 10: Assembly Instructions
2. Install item #170 center bolt first when aligned with a nut on the housing. 3. Attach rest of hood assembly to the housing using corresponding hardware. NOTE: You will have to insert the bolt/washer from the inside by reaching through the hood. - Two 7/16” wrenches. Form No F012507A... - Page 11 (164) for any adjustments. Two 9/16” wrenches. Form No F012507A 5. Attach rod end (164) to the nozzle door rod then secure in place by tightening jam nut. 6. Attach nozzle door rod to the nozzle door using corresponding hardware.
-
Page 12: Operation
DO NOT allow children to operate this equipment. ALWAYS keep hands and feet away from moving or rotating parts. EAR PROTECTION is recommended when operating this equipment. EYE PROTECTION is recommended when operating this equipment. Part No 840186 Form No F012507A... -
Page 13: Operator Controls
1. Place equipment on a level, firm surface that is free of rocks or other debris. 2. Place throttle in CHOKE position. DO NOT START equipment without the debris bag in place. Form No F012507A Operator Control Locations Nozzle Door Adjuster... -
Page 14: Height/Nozzle Door Adjustment
FOR MAXIMUM PICKUP: Adjust nozzle height as close to debris as possible, but without blocking airflow into the nozzle. NOTE: Never bury nozzle into debris. The vacuum nozzle is raised and lowered by turning the crank handle clockwise and counter-clockwise. Part No 840186 PULL ROPE STARTER WITH RIGHT HAND Form No F012507A... - Page 15 Nozzle fully opened. This is ideal for turf application Nozzle half way opened. This is ideal for hard surface application Nozzle closed for OPTIONAL hose kit. This is ideal TO USE WITH THE HOSE KIT. Form No F012507A Part No 840186...
-
Page 16: Debris Bag
However, following these rules will help maintain your machine's ability to vacuum in dusty conditions: •Run machine at idle to quarter throttle. •Machine or pressure-wash debris bag if normal cleaning does not fully clean bag. Bag should be thoroughly dry before use. Part No 840186 Form No F012507A... -
Page 17: Handling And Transporting
Add stabilizer to gasoline in storage container or fuel tank. Follow stabilizer manufacturer’s instructions to determine proper mix ratio. Run engine at least 10 minutes after adding stabilizer to allow it to reach carburetor. Form No F012507A ) is an acceptable alternative for minimizing the formation of Part No 840186... -
Page 18: Maintenance
10. Before connecting spark plug wire, slowly pull engine starting rope to insure that impeller rotates freely. 11. Reconnect spark plug wire. Part No 840186 Every Use Daily or Every 5 Every 25 Hours Hours CAUTION: Do not drop impeller. Every 50 Every 100-150 Hours Hours Form No F012507A... -
Page 19: Wiring Diagrams
Abnormal vibration. Engine will not start. Engine is locked, will not pull over. Form No F012507A Bag Switch Circuit Schematic Diagram Possible Cause · Dirty or full debris bag or filter. · Nozzle height set too high or too low. -
Page 20: Engine Maintenance And Repair
Warranty Claim. • The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration. • The Technical Service Department at BILLY GOAT will study the claim and may request parts to be returned for examination. -
Page 21: Maintenance Record
MV650H PUSH Vacuum Owner’s Manual MAINTENANCE RECORD Date Service Performed Form No F012507A Part No 840186... -
Page 22: Illustrated Parts List
MV650H PUSH Vacuum Owner’s Manual ILLUSTRATED PARTS LIST Nozzle Assembly Figure 1 Part No 840186 Form No F012507A... - Page 23 840055 LABEL PRODUCT DECAL MV 840035 SCREW PLASTIC 840054 LABEL HGT ADJ MV VAC 8122082 SCREW SELF-TAP 5/16 NC X 3/4 HEX 840088 BRACKET NOZZLE COVER REINFORMENT MV 8024021 BOLT CARRIAGE 1/4-20X0.75 900455 NUT FLANGE 1/4-20 Form No F012507A MV650H QTY. Part No 840186...
- Page 24 MV650H PUSH Vacuum Owner’s Manual Engine Assembly Figure 3 Part No 840186 Form No F012507A...
- Page 25 790167 900564 8177010 WASHER SPLIT LOCK 1/4" 840083 840215 840213 Form No F012507A ENGINE HONDA 6.5 VERTICAL GSV190 IMPELLER ASSEMBLY PUSH MV VAC TOP PLATE ASSEMBLY PUSH MV VAC HOUSING PLASTIC VAC WASHER LOCK 3/8 TWISTED TOOTH LABEL HOT ENGINE BRACKET COVER TOP PLATE VAC SCREW 1/4"-20 X 5/8"...
- Page 26 MV650H PUSH Vacuum Owner’s Manual Hood Assembly Figure 4 Part No 840186 Form No F012507A...
- Page 27 P A L N U T 0 .3 1 2 1 9 3 8 4 0 1 8 9 B A G D E B R IS M V V A C Form No F012507A M V 6 5 0 H Q T Y . Part No 840186...
- Page 28 8161044 NYLON INSERT LOCKNUT 1/2-13 UNC THIN 840091 SHAFT REAR AXLE PUSH VAC 840090 BRACKET REAR AXLE MOUNT PUSH MV VAC 840101 WHEEL 14" ASSEMBLY WITH BEARING AND TIRE Part No 840186 Rear Axle Assembly Figure 2 MV650H QTY. Form No F012507A...
