- Page 1 840245A_H...
- Page 2 Table of Contents: California Proposition 65............. 3 Identifying Your Unit............3 MV - Decals................3 100443................4 500176................4 5110550................4 5110549................4 80133770................5 80133771................5 80133774................5 80133775................5 80133777................6 501314................6 80133778................6 Packing Checklist..............6 Initial Setup Assembly............
- Page 3 California Proposition 65 ENGINE REFERENCE DATA Engine Code/Serial Number: WARNING This product can expose you to chemicals including When contacting your authorized service dealer for gasoline engine exhaust, which is known to the State of replacement parts, service, or information you must have California to cause cancer and carbon monoxide, which these numbers.
- Page 4 Thrown Objects I.D. 100443 500176 (Self-Propelled Units Only) 5110550 5110549 (Self-Propelled Units Only) 80133770 80133771 Warning: Thrown objects hazard. Do not use without a chute 80133774 or debris bag. This unit is capable of throwing objects and 80133775 debris. Keep bystanders away. Do not detach the debris bag 80133777 when the engine is running 501314 (Self-Propelled Units Only)
- Page 5 Do not open or remove safety shields/guards while engine is Damage to the eyes hazard. Always wear personal protective running. equipment when operating. 80133770 Hearing Protection Noise hazard. Always wear personal protective equipment when operating. Cutting Hazard Breathing Protection Warning: Risk of cutting fingers, hand, or foot. Dust inhalation hazard: Always wear personal protective equipment when operating.
- Page 6 Initial Setup Assembly Your Billy Goat MV Vacuum was shipped completely assembled except for the hood, handles, and nozzle door rod. Locate the hardware for the Hood/Upper Handle Assembly attached to the lower handle.
- Page 7 1. Attach hood assembly to the housing. First, use the center bolt (A, Figure 3) and washer (B) to attach the hood to the frame. Then, reach through the top of the hood and insert the screwcap (C), with washers (B & D) to connect the hood to the frame.
- Page 8 4. Organize the cables using cable ty-wraps. 5. Reconnect spark plug wire. 6. Attach the bag. billygoat.com...

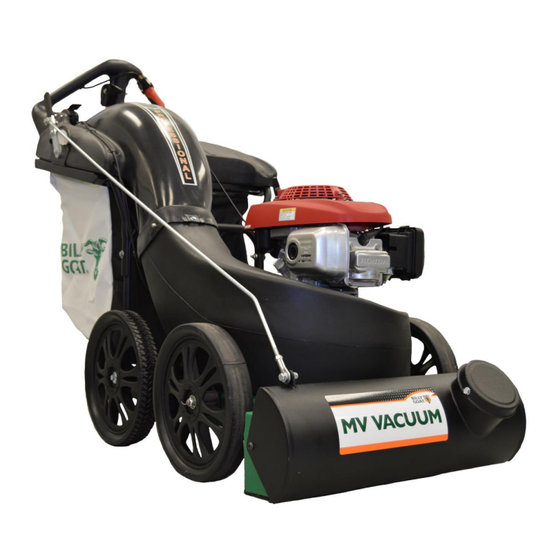

- Page 9 Operation Item Control Clutch Lever Operator Controls Starting the Engine The operator’s position is at the rear of the machine between Check engine oil level before starting. the handlebars. The operator should stand in a position to allow both handlebars to be grasped firmly, which allows Do not start the machine without the debris bag securely sufficient leverage to steer the machine.
- Page 10 Vacuum Nozzle Height Adjustment Halfway Open: Set the handle to the midway position. See Figure 9. Use the halfway open position when operating on Adjust the nozzle height as close to debris as possible without hard surfaces. blocking airflow into the nozzle. Never bury the nozzle into debris.
- Page 11 Vacuuming Operation objects that could be damaged or cause damage to the unit such as large rocks, children's toys, lawn ornaments, This machine is designed for vacuuming leaves, grass etc. clippings, and other types of organic litter. Debris mixed • Frequently check and empty the debris bag during with cans, bottles, and small amounts of sand can be operation.
- Page 12 2. Disconnect the spark plug wire. 3. Wear durable gloves to manually remove the clog. DANGER The impeller is sharp! Clogs may contain sharp materials. Always wear durable gloves when removing clogs. 4. Reconnect the spark plug wire. Replacing the Impeller 1.
- Page 13 Note: If the impeller cannot be loosened, use a 3/8-24 x 2 3/4” longer bolt of the same diameter and thread type as the impeller bolt. Invert the engine and impeller, then support engine above ground to prevent recoil damage. Thread longer bolt by hand into the crankshaft until the bolt bottoms. Use a gear or wheel puller against the bolt head and the impeller back plate to remove the impeller from the shaft.
- Page 14 4. Reinstall the guard and retaining screws. Replacing the Drive Belt 1. Disconnect the spark plug wire. Wait for engine to cool completely before servicing the unit. 2. Remove the guard by removing the guard retaining screws. See Figure 13. 3.
- Page 15 Periodic Maintenance however, when a battery is fully charged and the charger is still on, it generates heat that could be harmful to the Maintenance Each Use Every 25 Hr Every 100 Hr battery. A fully charged battery will read 12V-13.2V with a Operation voltmeter.
- Page 16 Problem Possible Cause Solution Engine is locked and Impeller is plugged or Remove debris causing will not pull over. clogged. clog. Engine is Contact an engine malfunctioning. servicing dealer for engine problems. Machine will not self- Drive clutch not Engage the drive propel engaged.
- Page 17 Specifications Dimensions All Models Overall Length 64” (1.63 m) Overall Width 28” (0.71 m) Overall Height 47.5" (1.21 m) Total Unit Weigh 204 lbs (92.5 kg) Max. Operating Slope 20° Briggs and Stratton Fits Models: MV601, MV601SP, MV601SPDSEU Engine: Model 123P020018F1 Engine: Type Briggs and Stratton...
