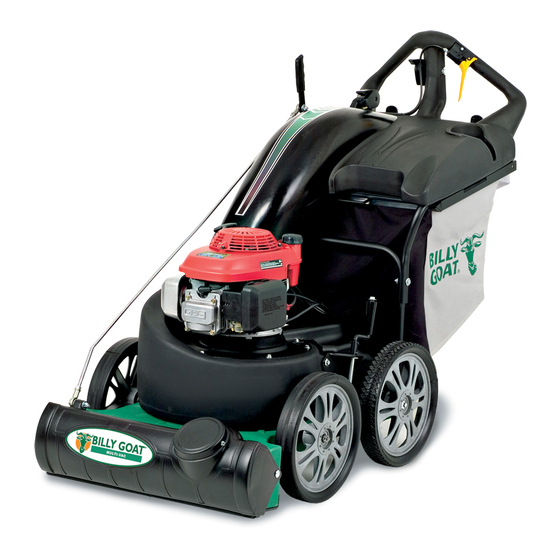

Billy Goat MV650SPH Owner's Manual

Billy goat self-propelled vacuum owner's manual mv650sph
Hide thumbs Also See for MV650SPH:
Table of Contents

Advertisement

Quick Links

BILLY GOAT
Accessories
Caster Kit
Use on hard surface
for maneuverability.
P/N 840129
Part No 840099
®
MV650SPH Self-Propelled Vacuum
Owner's Manual
Hose Kit
For vacuuming hard
to reach areas.
P/N 840116
Bag Liner Kit
To collect leaves,
thatch, and grass.
P/N 840134
1
Felt Bag Kit
Use on all dusty
conditions.
P/N 840194
Form No F082206A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV650SPH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billy Goat MV650SPH

Summary of Contents for Billy Goat MV650SPH

  • Page 1 Caster Kit Use on hard surface For vacuuming hard for maneuverability. to reach areas. P/N 840129 Part No 840099 ® MV650SPH Self-Propelled Vacuum Owner’s Manual Hose Kit Bag Liner Kit To collect leaves, thatch, and grass. P/N 840116 Felt Bag Kit Use on all dusty conditions.

  • Page 2: Table Of Contents

    MV650SPH Self-Propelled Vacuum Owner’s Manual ABOUT THIS MANUAL THANK YOU for purchasing a BILLY GOAT manufactured to provide years of reliable and productive service. This manual provides complete operating and maintenance instructions that will help to maintain your MV Vacuum in top running order. Read this manual carefully before assembling, operating, or servicing your equipment.

  • Page 3: Serial Plate Data

    MV650SPH Self-Propelled Vacuum Owner’s Manual SERIAL PLATE DATA Record the model number, serial number, date of purchase, and where purchased. Purchase Date: Purchased From: MV 650 SERIES SPECIFICATIONS Engine Type Horsepower Fuel Capacity Oil Capacity Engine Weight Unit Weight Shipping Weight...

  • Page 4: General Safety Instructions And Symbols

    This symbol indicates that this manual and the engine manufacturer’s manual should be read carefully before assembling, operation, or servicing this equipment. This symbol indicates important information that will prevent damage to your BILLY GOAT MV Vacuum. This symbol indicates the engine oil level should be checked before operating this equipment.
  • Page 5 MV650SPH Self-Propelled Vacuum Owner’s Manual DO NOT run this equipment indoors or in any poorly ventilated area. Refueling outdoors is recommended. DO NOT refuel this equipment while the engine is running. Allow engine to cool for at least two minutes before refueling.

  • Page 6: Sound Data

    Barometric Pressure: INTENDED USE Your BILLY GOAT ® MV Vacuum is designed for vacuuming leaves, grass clippings, and other types of organic litter, as well as, debris mixed with cans, bottles, and small amounts of sand; however, vacuuming cans, bottles and sand will affect the longevity of your machine.

  • Page 7: Instruction Labels

    MV650SPH Self-Propelled Vacuum Owner’s Manual INSTRUCTION LABELS The labels shown below were installed on your BILLY GOAT replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels. The correct position for each label may be determined by referring to the Figure and Item numbers shown.
  • Page 8 MV650SPH Self-Propelled Vacuum Owner’s Manual MV Vacuum Assembly Drawing Part No 840099 Form No 082206A...

  • Page 9: Parts List

    MV650SPH Self-Propelled Vacuum Owner’s Manual PARTS LIST Form No F082206A Part No 840099...

  • Page 10: Assembly Instructions

    MV650SPH Self-Propelled Vacuum Owner’s Manual ASSEMBLY INSTRUCTIONS ® Your BILLY GOAT MV Vacuum was shipped in one carton, completely assembled except for the Hood/Upper Handle Assembly. Mounting hardware for the Hood/Upper Handle Assembly is temporarily installed on the lower handle and the Housing assembly.
  • Page 11 MV650SPH Self-Propelled Vacuum Owner’s Manual 4. Attach upper handle brace to lower handle using corresponding hardware. Then repeat this step on the other side. 7. Attach rod end to rod (as in step 5). 8. Attach nozzle door rod to the lever with nozzle door closed and lever in hose kit position.

  • Page 12: Operation

    MV650SPH Self-Propelled Vacuum Owner’s Manual OPERATION DO NOT run engine in an enclosed area. Exhaust gases contain carbon monoxide, an odorless and possibly fatal poison. DO NOT start or operate engine if strong odor of gasoline is present. DO NOT start or operate engine if gasoline is spilled. Move equipment away from spill until gasoline has completely evaporated.

  • Page 13: Operator Controls

    MV650SPH Self-Propelled Vacuum Owner’s Manual PERATOR ONTROLS The operator’s position is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly, which allows sufficient leverage to steer the machine.

  • Page 14: Height/Nozzle Door Adjustment

    MV650SPH Self-Propelled Vacuum Owner’s Manual 3. Secure the unit with left hand at the handle then pull starter rope with right hand to start engine. SECURE UNIT AT THE HANDLE WITH LEFT HAND DURING START PULL STARTER CORD slowly until resistance is felt. Then pull cord rapidly to avoid kickback.
  • Page 15 MV650SPH Self-Propelled Vacuum Owner’s Manual ACUUM OZZLE DJUSTMENT The vacuum nozzle door adjusts for the maximum performance under various applications. Nozzle fully opened. This is ideal for turf application Nozzle half way opened. This is ideal for hard surface application Nozzle closed for OPTIONAL hose kit.

  • Page 16: Self Propel

    MV650SPH Self-Propelled Vacuum Owner’s Manual ACUUMING PERATION This machine is designed for vacuuming leaves, grass clippings, and other types of organic litter. Debris mixed with cans, bottles, and small amounts of sand can be vacuumed; however, it is not this machine's primary purpose.

  • Page 17: Debris Bag

    MV650SPH Self-Propelled Vacuum Owner’s Manual LEARING A LOGGED OZZLE DISCONNECT spark plug wire before servicing unit. 1. Shut engine off and wait for impeller to stop completely. 2. Disconnect spark plug wire. 3. Wearing durable gloves, remove clog. WEAR durable gloves. Clog may contain sharp materials.

  • Page 18: Handling And Transporting

    MV650SPH Self-Propelled Vacuum Owner’s Manual HANDLING and TRANSPORTING Using two people to lift unit is recommended. Lift holding the handle and front of nozzle. Make sure equipment is properly secured before transporting. See MV650 series specifications on page 3 for unit weight.

  • Page 19: Maintenance

    MV650SPH Self-Propelled Vacuum Owner’s Manual MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Inspect for worn or damaged parts. Check for excessive vibration Inspect for loose parts. Clean Debris Bag Lubricate clutch control lever (Use white lithium grease or equiv.)

  • Page 20: Impeller Removal

    MV650SPH Self-Propelled Vacuum Owner’s Manual MPELLER EMOVAL READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Tools required: 1/2” socket, 3/8” drive ratchet, 3/8” drive extension, 3/8” drive universal joint, 3/8” drive pry bar or long screwdriver jack stands or similar device adequate to support weight of machine.

  • Page 21: Drive Belt Removal And Replacement

    MV650SPH Self-Propelled Vacuum Owner’s Manual 2. Engage the clutch lever then pull the unit back until it stops freewheeling. The clutch lever should engage around 2 5/16” of travel or 4 inches from tip of lever to handle. 3. Tighten or loosen cable adjuster nut next to the clutch lever until drive engages at 4” from handle.

  • Page 22: Drive Chain Alignment/Tension

    MV650SPH Self-Propelled Vacuum Owner’s Manual NSTALLING RIVE HAIN READ all safety instructions before servicing unit. DISCONNECT spark plug wire before servicing unit. Tools required: 3/8” drive ratchet with 8” or longer extension. 3/8” socket wrench. 7/16” and 1/2” socket. 7/16” and 1/2” combination wrench.

  • Page 23: Wiring Diagrams

    MV650SPH Self-Propelled Vacuum Owner’s Manual IRING IAGRAMS TROUBLESHOOTING Problem Will not vacuum or has poor vacuum performance. Abnormal vibration. Engine will not start. Engine is locked, will not pull over. No self-propelling Self propelled drive will not release Noisy or broken chain...

  • Page 24: Engine Maintenance And Repair

    Warranty Claim. • The distributor service manager will sign off on the claim and submit it to BILLY GOAT for consideration. • The Technical Service Department at BILLY GOAT will study the claim and may request parts to be returned for examination.

  • Page 25: Maintenance Record

    MV650SPH Self-Propelled Vacuum Owner’s Manual MAINTENANCE RECORD Date Service Performed Form No F082206A Part No 840099...

  • Page 26: Illustrated Parts List

    MV650SPH Self-Propelled Vacuum Owner’s Manual ILLUSTRATED PARTS LIST Nozzle Assembly Figure 1 Part No 840099 Form No 082206A...
  • Page 27 MV650SPH Self-Propelled Vacuum Owner’s Manual Nozzle Assembly Parts List PART ITEM NO. NUMBER DESCRIPTION 350127 YOKE 1/2 - 20 350128 PIN YOKE 1/2" 8024060 BOLT CARRIAGE 3/8-16X1 1/2" ZP 8172009 WASHER 3/8" SAE ZP 8161042 NUT LOCK 3/8-16 LT WT THIN ZP...
  • Page 28 MV650SPH Self-Propelled Vacuum Owner’s Manual Drive /Rear Axle Assembly Figure 2 Part No 840099 Form No 082206A...
  • Page 29 MV650SPH Self-Propelled Vacuum Owner’s Manual Drive /Rear Axle Assembly Parts List PART ITEM NO. NUMBER DESCRIPTION 840110 350133 840009 840086 840010 840085 510126 840066 510125 840011 520025 8041004 1/4 - 20 x 0.75 HWH 430298 840102 8024021 BOLT CARRIAGE 1/4-20X0.75...
  • Page 30 MV650SPH Self-Propelled Vacuum Owner’s Manual Engine Assembly Figure 3 Part No 840099 Form No 082206A...
  • Page 31 MV650SPH Self-Propelled Vacuum Owner’s Manual Engine Assembly Parts List ITEM PART NUMBER DESCRIPTION 840069 ENGINE HONDA 6.5 VERTICAL GSV190 840136 IMPELLER ASSEMBLY SP MV VAC 840107 PLATE TOP W A SP MV VAC 840205 HOUSING PLASTIC VAC 400502 W ASHER LOCK 3/8 TWISTED TOOTH...
  • Page 32 MV650SPH Self-Propelled Vacuum Owner’s Manual Hood Assembly Figure 4 Part No 840099 Form No 082206A...
  • Page 33 MV650SPH Self-Propelled Vacuum Owner’s Manual Hood Assembly IT EM PAR T N O . N U M B ER D ESC R IPT IO N 840141 840153 840196 840037 840038 840154 840152 840195 840138 840061 840062 840191 840058 840077 8024025...
  • Page 34 MV650SPH Self-Propelled Vacuum Owner’s Manual NOTES: Part No 840099 Form No 082206A...
