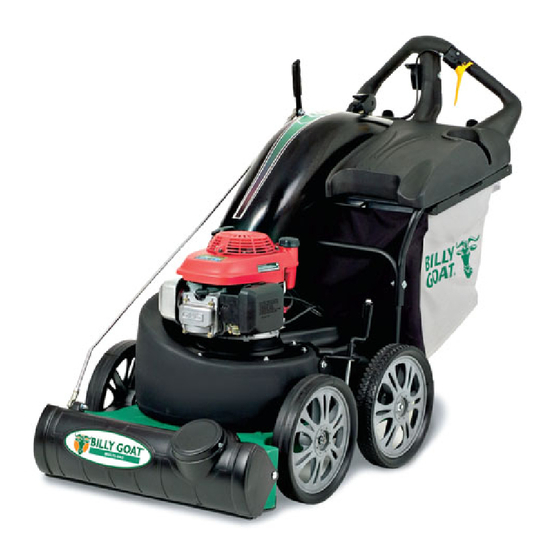

Billy Goat MV650H Owner's Manual

Push vacuum
Hide thumbs Also See for MV650H:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
BILLY GOAT
Accessories
Caster Kit
Use on hard surface
for maneuverability.
P/N 840129
Part No 840244
MV650H PUSH Vacuum Owner's Manual
®
MV650H PUSH Vacuum
Owner's Manual
Hose Kit
For vacuuming hard
to reach areas.
P/N 840116
Bag Liner Kit
To collect leaves,
thatch, and grass.
P/N 840134
1
Felt Bag Kit
Use on all dusty
conditions.
P/N 840194
Form No F072111B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MV650H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Billy Goat MV650H

Summary of Contents for Billy Goat MV650H

  • Page 1 MV650H PUSH Vacuum Owner’s Manual ® BILLY GOAT MV650H PUSH Vacuum Owner’s Manual Accessories Caster Kit Hose Kit Bag Liner Kit Felt Bag Kit Use on hard surface For vacuuming hard To collect leaves, Use on all dusty for maneuverability.
  • Page 2 MV650H PUSH Vacuum Owner’s Manual CONTENTS Specifications and Sound/Vibration ........................Instruction Labels .............................. Assembly Instructions ............................5-8 Operation ................................9-12 Maintenance and Troubleshooting ........................13-14 Illustrated Parts List ............................15-21 Go to http://www.billygoat.com for French-Canadian translations of the product manuals.

  • Page 3: Sound Data

    MV650H PUSH Vacuum Owner’s Manual MV 650 SERIES SPECIFICATIONS MV650 Engine Type Honda GSV190AA1A Horsepower 6.5 (4.85 kW) Fuel Capacity 1.6 qt (1.5 L) Oil Capacity 0.69 qt (0.65L) Engine Weight 28 lbs (12.7 kg) Unit Weight 157 lbs (71.2 kg) Shipping Weight 180 lbs (81.7 kg)

  • Page 4: Instruction Labels

    MV650H PUSH Vacuum Owner’s Manual INSTRUCTION LABELS ® The labels shown below were installed on your BILLY GOAT MV Vacuum. If any labels are damaged or missing, replace them before operating this equipment. Item numbers from the Illustrated Parts List and part numbers are provided for convenience in ordering replacement labels.
  • Page 5 MV650H PUSH Vacuum Owner’s Manual MV Vacuum Assembly Drawing Form No F072111B Part No 840244...
  • Page 6 MV650H PUSH Vacuum Owner’s Manual PARTS LIST Part No 840244 Form No F072111B...

  • Page 7: Assembly Instructions

    MV650H PUSH Vacuum Owner’s Manual ASSEMBLY INSTRUCTIONS ® Your BILLY GOAT MV Vacuum was shipped in one carton, completely assembled except for the Hood/Upper Handle Assembly. Mounting hardware for the Hood/Upper Handle Assembly is temporarily installed on the lower handle and the Housing assembly.
  • Page 8 MV650H PUSH Vacuum Owner’s Manual 4. Attach upper handle brace to lower handle using 5. Attach rod end (164) to the nozzle door rod then corresponding hardware. Then repeat this step on the secure in place by tightening jam nut.
  • Page 9 MV650H PUSH Vacuum Owner’s Manual OPERATION PERATOR ONTROLS The operator’s position is at the rear of the machine between the handlebars. The operator should STAND in a position to allow both handlebars to be grasped firmly, which allows sufficient leverage to steer the machine. Operator’s controls are shown below.
  • Page 10 MV650H PUSH Vacuum Owner’s Manual 3. Secure the unit with left hand at the handle then pull starter rope with right hand to start engine. PULL ROPE STARTER WITH RIGHT HAND SECURE UNIT AT THE HANDLE WITH LEFT HAND DURING START PULL STARTER CORD slowly until resistance is felt.
  • Page 11 MV650H PUSH Vacuum Owner’s Manual ACUUM OZZLE DJUSTMENT The vacuum nozzle door adjusts for the maximum performance under various applications. Nozzle fully opened. This is ideal for turf application Nozzle half way opened. This is ideal for hard surface application Nozzle closed for OPTIONAL hose kit.
  • Page 12 MV650H PUSH Vacuum Owner’s Manual ACUUMING PERATION This machine is designed for vacuuming leaves, grass clippings, and other types of organic litter. Debris mixed with cans, bottles, and small amounts of sand can be vacuumed; however, it is not this machine's primary purpose.

  • Page 13: Common Replacement Parts

    MV650H PUSH Vacuum Owner’s Manual MAINTENANCE ERIODIC AINTENANCE Periodic maintenance should be performed at the following intervals: Maintenance Operation Every Use Daily or Every 5 Every 25 Hours Every 50 Every 100-150 Hours Hours Hours Inspect for worn or damaged parts.

  • Page 14: Troubleshooting

    MV650H PUSH Vacuum Owner’s Manual IRING IAGRAMS Bag Switch Circuit Schematic Diagram TROUBLESHOOTING Problem Possible Cause Solution Will not vacuum or has poor vacuum · Dirty or full debris bag or filter. · Clean debris bag and filter. Shake bag clean or performance.
  • Page 15 MV650H PUSH Vacuum Owner’s Manual ILLUSTRATED PARTS LIST Nozzle Assembly Figure 1 Form No F072111B Part No 840244...
  • Page 16 MV650H PUSH Vacuum Owner’s Manual Nozzle Assembly Parts List PART MV650H ITEM NO. NUMBER DESCRIPTION QTY. 350127 YOKE 1/2 - 20 350128 PIN YOKE 1/2" 840243 SCREWCAP BUTTON HEAD 3/8"-16 X 1 1/4" PL 8172009 WASHER 3/8" SAE ZP 8161042 NUT LOCK 3/8-16 LT WT THIN ZP...
  • Page 17 MV650H PUSH Vacuum Owner’s Manual Engine Assembly Figure 3 Form No F072111B Part No 840244...
  • Page 18 MV650H PUSH Vacuum Owner’s Manual Engine Assembly Parts List ITEM PART MV650H NUMBER DESCRIPTION QTY. 840069 ENGINE HONDA 6.5 VERTICAL GSV190 840137 IMPELLER ASSEMBLY PUSH MV VAC 840111 TOP PLATE ASSEMBLY PUSH MV VAC 840205 HOUSING PLASTIC VAC 440153 WASHER 1.5 OD X .453 ID X .25 THK 9201087 SQ KEY 2.125 X .187...
  • Page 19 MV650H PUSH Vacuum Owner’s Manual Hood Assembly Figure 4 Form No F072111B Part No 840244...
  • Page 20 MV650H PUSH Vacuum Owner’s Manual Hood Assembly ITEM PART MV650H NUMBER DESCRIPTION QTY. 840045 CONTROL THROTTLE MV VAC 840141 HOOD ASSY W/ LABEL MV VAC 840153 BRACKET BAG CHANNEL RH W/SEAL MV VAC 840196 SEAL BAG MV VAC 840037 TUBE HANDLE BRACE RH MV VAC...
  • Page 21 MV650H PUSH Vacuum Owner’s Manual Rear Axle Assembly Figure 2 Rear Axle Assembly Parts List ITEM PART MV650H NUMBER DESCRIPTION QTY. 8172011 WASHER FLAT 1/2" SAE 8024046 BOLT CARRIAGE 5/16-18X2 1/2 8171002 WASHER 1/4" FC ZP 8160002 NYLON INSERT LOCKNUT 5/16-18 UNC...
