2
OPTIONAL ACCESSORIES
SHREDDER KIT
P/N 890209.
Shreds leaves, reducing total
volume.
ON BOARD VACUUM
HOSE KIT
P/N 890041.
For vacuuming in hard to
reach areas.
NOZZLE WEAR PLATES
P/N 890413.
(STD. ON KD512HCS)
Extends nozzle life when
used along curbs and hard
surfaces.
OPTIONAL DEBRIS BAGS
STANDARD TURF PRO
DEBRIS BAG
P/N 890028.
For use in leaves and grass in
non-dusty conditions.
DEBRIS BAG COVER
P/N 900801
Directs dust downward away
from operator.
ZIPPERLESS QUICK BAG
P/N 890309
For non dusty conditions that
are damaging to zippers.
CASTER KIT
P/N 890412
For use on hard surface
3
ENGINE: H.P.
ENGINE: TYPE
ENGINE: FUEL CAP
ENGINE: OIL CAP
WEIGHT: UNIT
WEIGHT: SHIPPING
WEIGHT: ENGINE
UNIT SIZE:
1
T h a n k Y o u f o r S e l e c t i n g

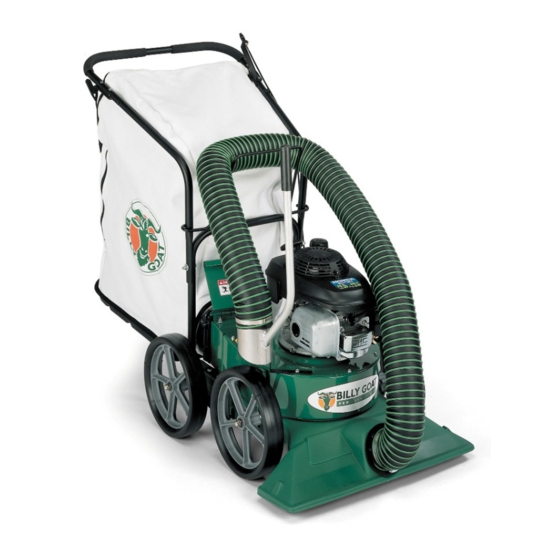

The Powerful KD VACUUM
Operator Owner's Manual
KD512, KD512HC, KD512HCS
Specifications
KD512
5.0 (3.73 kW)
B&S QUANTUM
1.5qt. (1.4 L)
0.63qt. (0.6 L)
98# (44.5 kg)
130# (60.0 kg)
24.38# (11.05 kg)
KD512HC
KD512HCS
5.5 (4.11 kW)
5.5 (4.11 kW)
HONDA OHC
HONDA OHC
1.16qt. (1.1 L)
1.16qt. (1.1 L)
0.58qt. (0.6 L)
0.58qt. (0.6 L)
99# (45.0 kg)
116# (52.6 kg)
122# (55.5 kg)
140# (63.5 kg)
22# (10.0 kg)
22# (10.0 kg)
Advertisement
Table of Contents
Related Manuals for Billy Goat KD512
Summary of Contents for Billy Goat KD512
- Page 1 ZIPPERLESS QUICK BAG The Powerful KD VACUUM P/N 890309 For non dusty conditions that are damaging to zippers. Operator Owner's Manual CASTER KIT P/N 890412 KD512, KD512HC, KD512HCS For use on hard surface Specifications KD512 KD512HC KD512HCS ENGINE: H.P. 5.0 (3.73 kW) 5.5 (4.11 kW)
-
Page 2: In The Interest Of Safety
IN THE INTEREST OF SAFETY BEFORE STARTING ENGINE, READ AND UNDERSTAND THE “ENTIRE OPERATOR'S MANUAL & ENGINE MANUAL.” THIS SYMBOL MEANS WARNING OR CAUTION. DEATH, PERSONAL INJURY AND/OR PROPERTY DAMAGE MAY OCCUR UNLESS INSTRUCTIONS ARE FOLLOWED CAREFULLY. DO NO DO NOT WARNING: DO NOT DO NOT DO NOT... -
Page 3: General Safety
GENERAL SAFETY For your safety and the safety of others, these directions should be followed: Do not operate this machine without first reading ·DO NOT owner's manual and engine manufacturer's manual. ·DO NOT Use of Ear Protection is recommended while operating this machine. - Page 4 Owner's Manual Manual 890033 Fuel Shut Off Literature C heck Literature Throttle Control Accessories Accessories 890409 KD512 MODEL C heck Warranty Warranty Throttle Control Card Card 400972 Choke Control EU Declaration EU Declaration C heck of Conformity of Conformity &...
-
Page 5: Operation
OPERATION INTENDED USE: 16.4 DEBRIS BAG Debris bags are normal replaceable wear items. Note: Frequently empty debris to prevent bag overloading with more weight than you can lift. (see Optional Accessories shown on page 1) DO NOT place bag on or near hot surface This vacuum is designed for picking up trash, organic Inspect machine work area and machine before operat- material and other similar debris... - Page 6 PARTS DRAWING KD512, KD512HC, KD512HCS...
- Page 7 ITEM KD512 KD512HC KD512HCS DESCRIPTION Part No. Part No. Part No.
-
Page 8: Maintenance
WARRANTY PROCEDURE Engine Service and Warranty 22.1 Should a Billy Goat Machine fail due to a defect in material and / or Contact your nearest engine manufacturer's authorized servicing dealer. workmanship, the owner should make a warranty claim as follows:...
