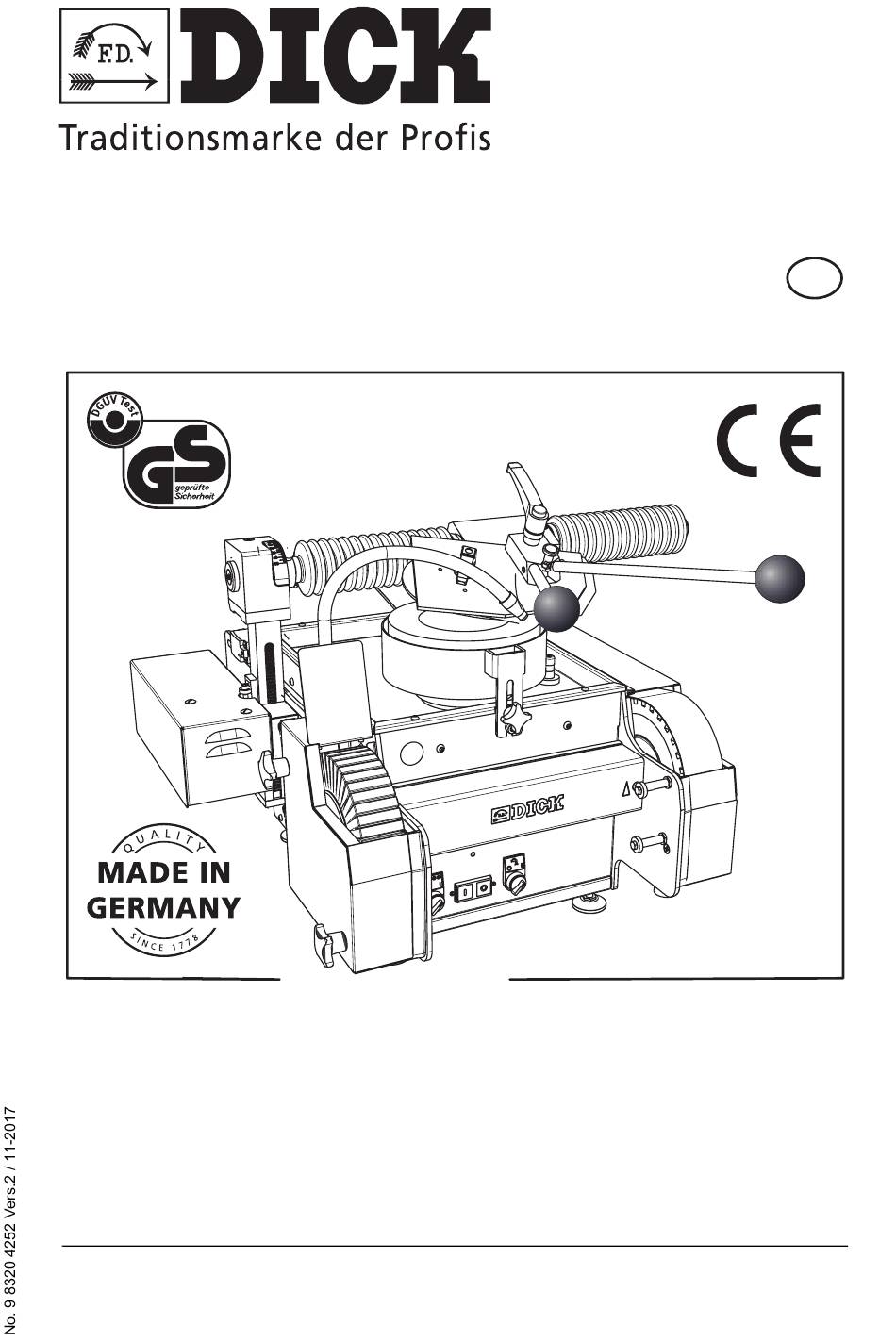

Dick SM-200 TE Operating Instructions Manual

3~400 v - 50-60 hz grinding and honing machine
Hide thumbs Also See for SM-200 TE:
Table of Contents

Advertisement

Quick Links

Operating Instructions
GB
(Translation)
SM-200 TE
~400 V - 50-60 Hz
3
Grinding and Honing Machine
Art. No. 98320005 with a universal grinding arm
Art. No. 98320000 with a radial grinding arm
Friedr. Dick GmbH & Co. KG · PO Box 1173 · 73777 Deizisau · GERMANY
Tel.: +49 (0)7153-817-0 · Fax: +49 (0)7153-817-218/-219 · Web: www.dick.de · E-mail: mail@dick.de ·
