Appendix A.3.2. Using FS-GUI

Diagnostic Capture with FS-GUI is only available on FieldServers with a bios updated/released on
November 2017 or later. Completing a Diagnostic Capture through the FieldServer allows network
connections (such as Ethernet and Wi-Fi) to be captured.
Once the Diagnostic Capture is complete, email it to technical support. The Diagnostic Capture
will accelerate diagnosis of the problem.
•

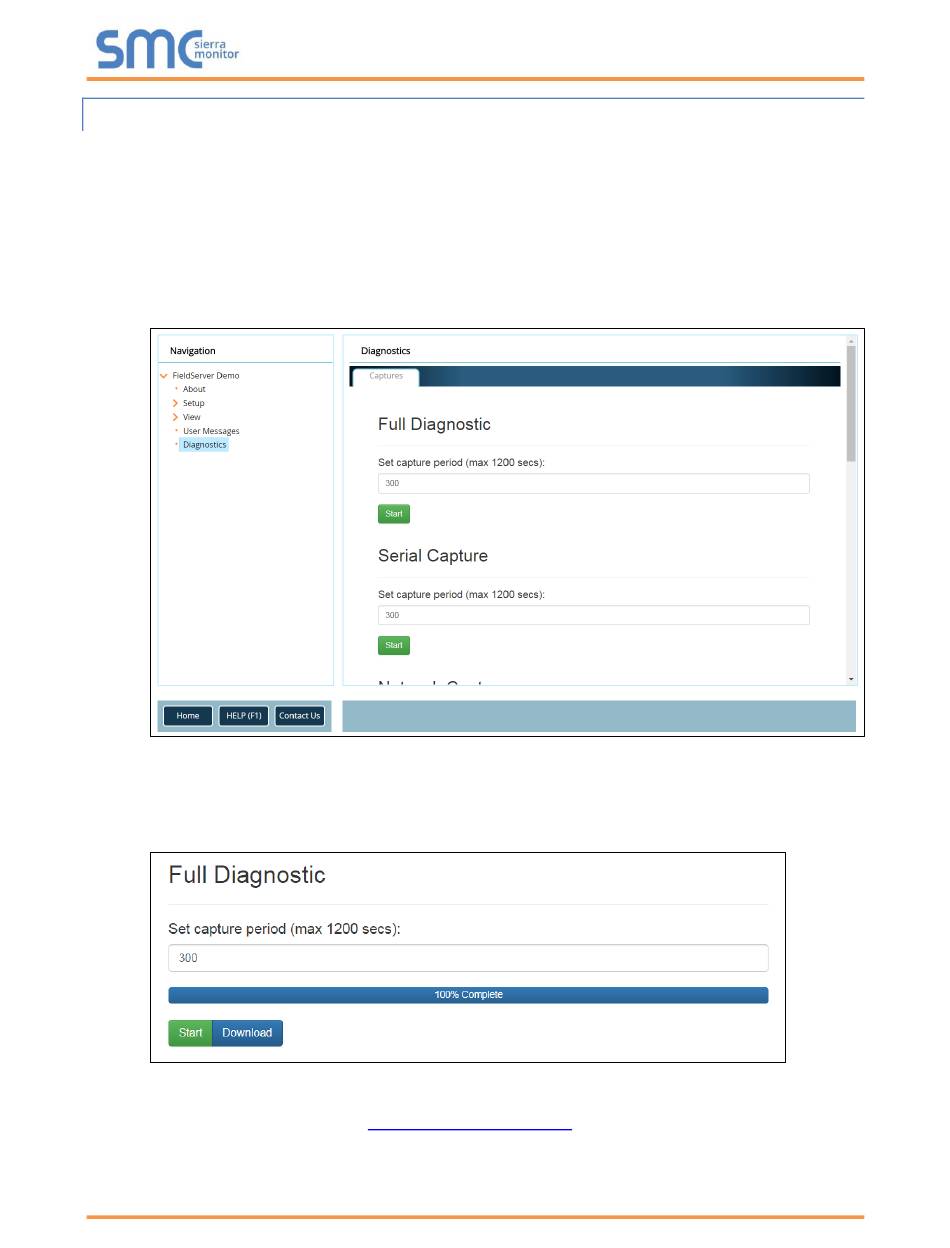

Open the FieldServer FS-GUI page.
•
Click on Diagnostics in the Navigation panel.
•
Go to Full Diagnostic and select the capture period.
•
Click the Start button under the Full Diagnostic heading to start the capture.
o
When the capture period is finished, a Download button will appear next to the Start button
•
Click Download for the capture to be downloaded to the local PC.
•
Send the diagnostic zip file to support@sierramonitor.com.
