6.2.3 Completing Device Profile Setup

•
Click on the Edit button (pencil icon) next to the name of the profile to complete setup.
•
If a data map was loaded from a file created from the "Excel Profile Generator", go to the Device
Settings tab to enter the Modbus and BACnet parameters.
NOTE: See for Appendix B.4
•
If using a BACnet State Table, click on the "State Table" tab to define the table and its variables.
EZ Gateway Modbus to BACnet Start-up Guide
additional information on Address Type.

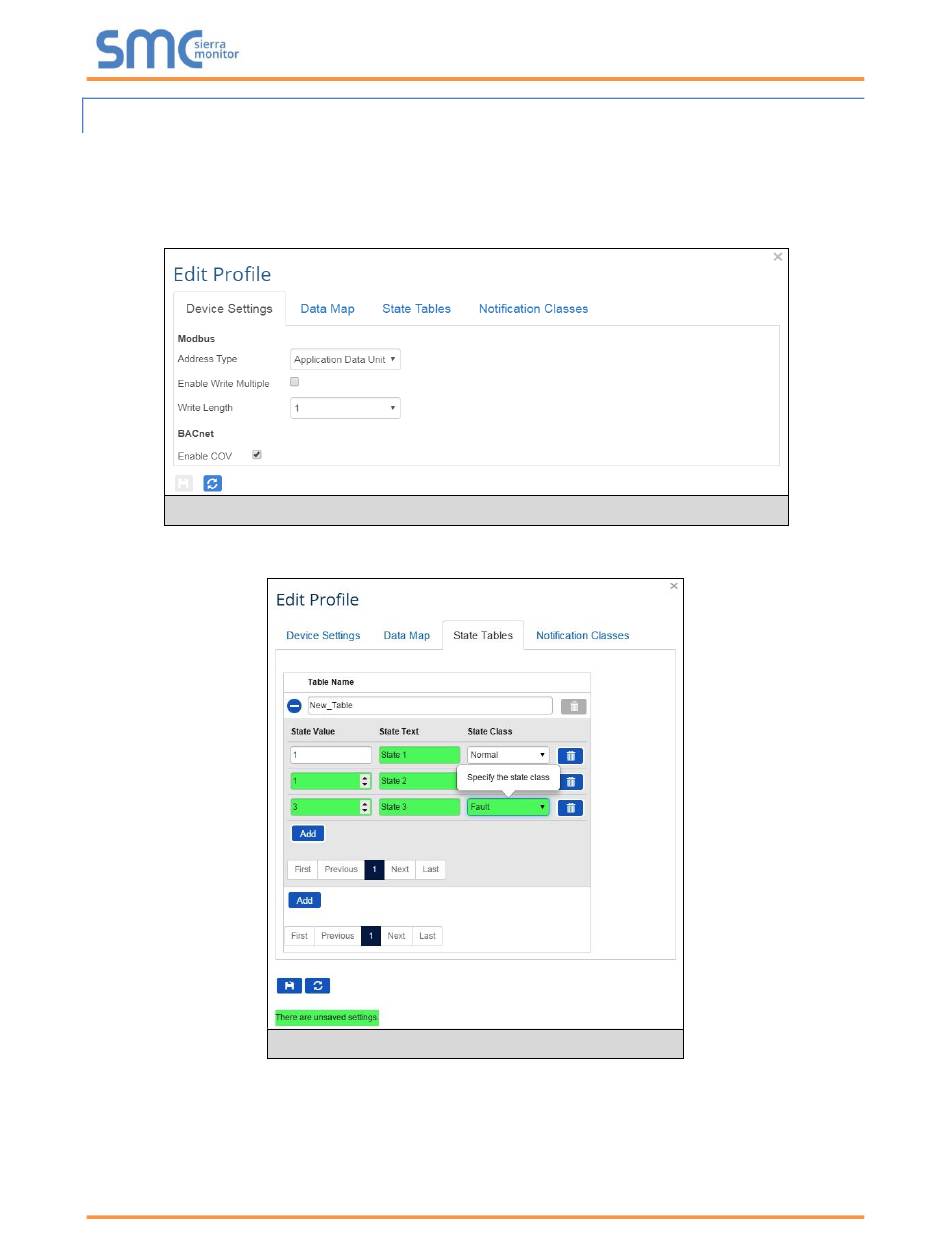

Figure 17: Device Settings Window

Figure 18: State Table Window

Page 20 of 49
