LDC401 & LDC401A Automated Cleavers
The Tablet Controller provides an 'offline' mode in which files can be modified and uploaded later.

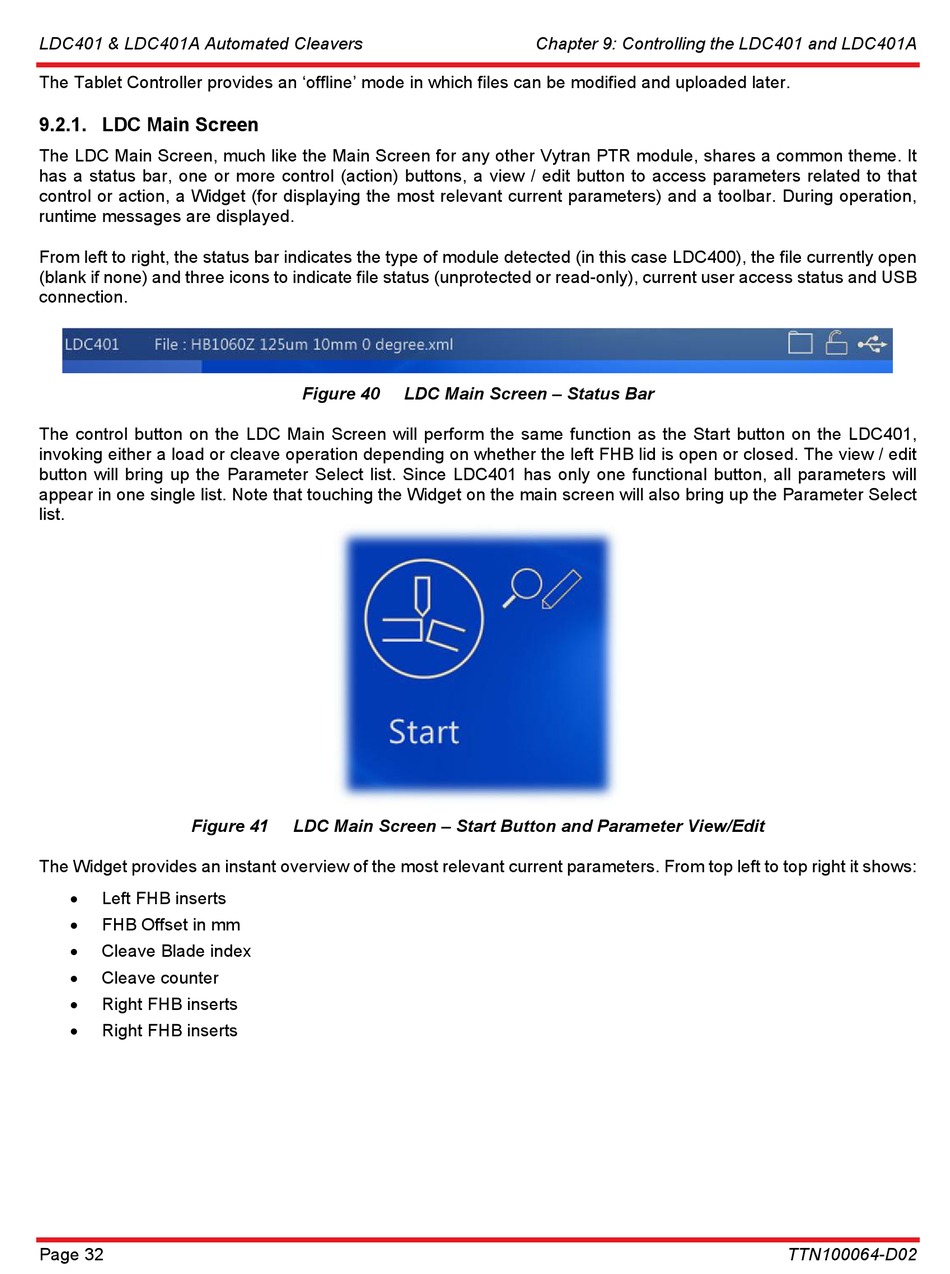

9.2.1. LDC Main Screen

The LDC Main Screen, much like the Main Screen for any other Vytran PTR module, shares a common theme. It
has a status bar, one or more control (action) buttons, a view / edit button to access parameters related to that
control or action, a Widget (for displaying the most relevant current parameters) and a toolbar. During operation,
runtime messages are displayed.
From left to right, the status bar indicates the type of module detected (in this case LDC400), the file currently open
(blank if none) and three icons to indicate file status (unprotected or read-only), current user access status and USB
connection.
The control button on the LDC Main Screen will perform the same function as the Start button on the LDC401,
invoking either a load or cleave operation depending on whether the left FHB lid is open or closed. The view / edit
button will bring up the Parameter Select list. Since LDC401 has only one functional button, all parameters will
appear in one single list. Note that touching the Widget on the main screen will also bring up the Parameter Select
list.
Figure 41
The Widget provides an instant overview of the most relevant current parameters. From top left to top right it shows:

Left FHB inserts

FHB Offset in mm

Cleave Blade index

Cleave counter

Right FHB inserts

Right FHB inserts
Page 32
Figure 40 LDC Main Screen – Status Bar
LDC Main Screen – Start Button and Parameter View/Edit
Chapter 9: Controlling the LDC401 and LDC401A
TTN100064-D02
