LDC401 & LDC401A Automated Cleavers
5.

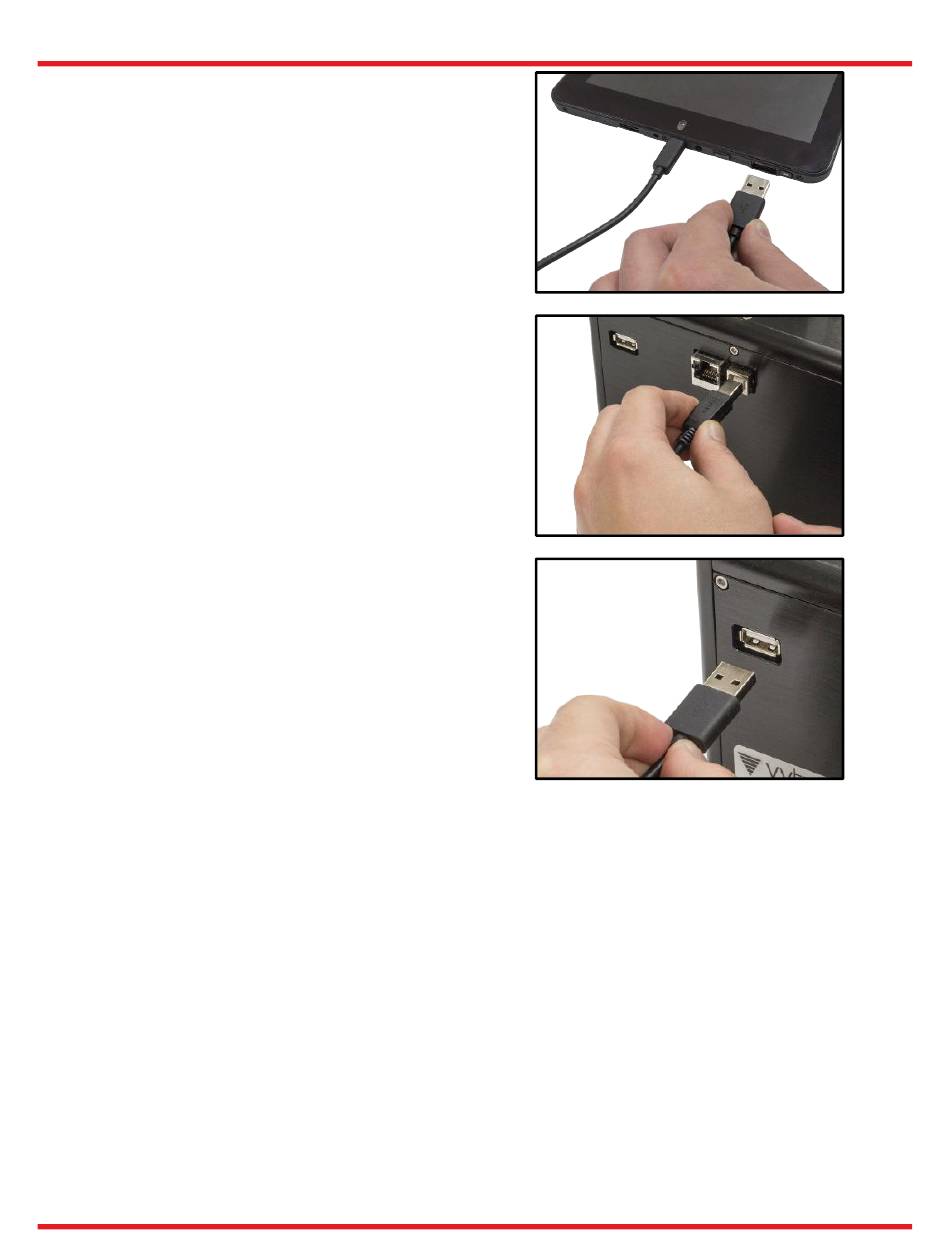

The other USB cable has one end that is USB
Type A. Plug that end of that cable into the USB
socket of the tablet.
6.
Plug the USB Type B plug into its socket on the
back of the unit.
7.
Plug the USB Type A plug (on the first USB
cable) into its socket on the back of the unit.
4.2.

Power-Up

1. Turn on the Cleaver using the ON/OFF Rocker Switch located on the back of the unit.
2. Turn on the Tablet Controller (press and hold the Power Button).
4.3.

Shut-Down

Turn off the Cleaver using the on/off Rocker Switch located on the back of the Cleaver.
Rev B, July 19, 2017
Chapter 4: Set-up
Page 7
