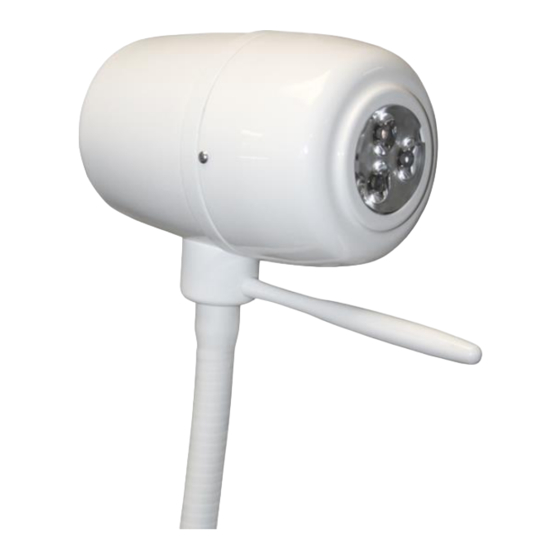

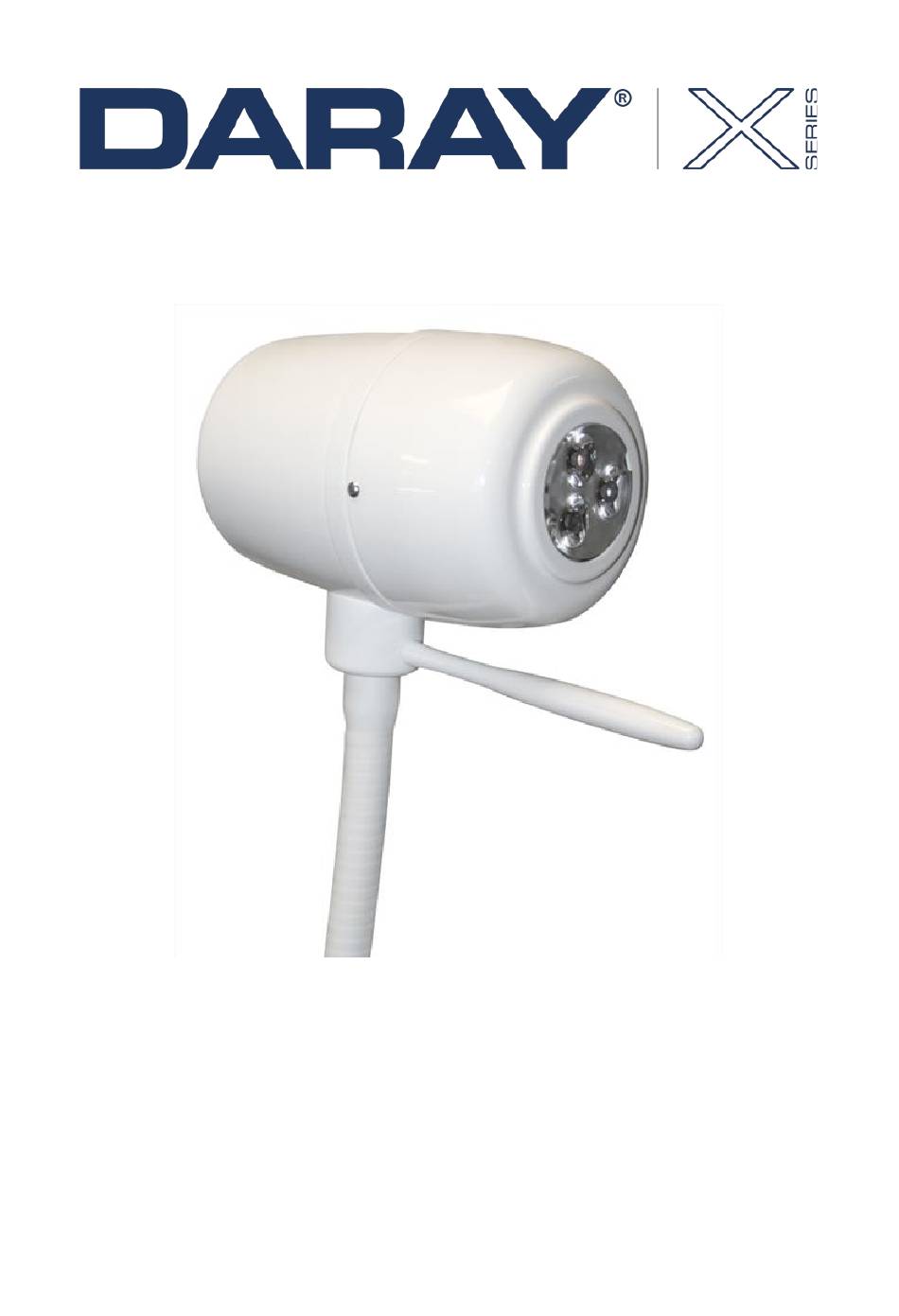

- Page 1 X200 LED examination light operating and installation manual QAM.X200.0524.14...
- Page 3 Table of contents 1 Introduction ..........................4 1.1 Restrictions and liabilities ....................4 1.2 Supported lights ........................5 2 Specifications ..........................6 2.1 Pre-Install responsibilities and component packing list ............7 2.2 Pre-start checks ........................7 3 Operation ..........................8 3.1 Range of motion ........................
- Page 4 Information in this document is subject to change and does not represent a commitment by DARAY. Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by DARAY for the use or reliability of software or equipment that is not supplied by DARAY.
- Page 5 The following models are supported in this manual. X200LW X2 Series wall mount LED examination light X200LR X2 Series rail mount LED examination light X200LD X2 Series desk mount LED examination light X200LDS X2 Series weighted desk stand LED examination light X200LFDM X2 Series fixed desk mount LED examination light X200LM...
- Page 6 Light source Light intensity adjustment range 10% - 100% Light intensity @ 0.5m 32,000 lux ±5% Light intensity @ 0.75m 14,000 lux ±5% Light intensity @ 0.1m 8,000 lux ±5% Colour temperature (Kelvin) 4,300K ±500 Colour rendering Index (CRI) Colour rendering Index (R9) @ 0.5m: 120mm Light field diameter (D50) @ 0.75m: 135mm...
- Page 7 All fixings between DARAY lights and the building super-structure must be approved by either the chief project engineer or an appropriate and competent structural assessor. The components supplied by DARAY for fitting / installation should be the following items in the specified quantities.
- Page 8 This illustration depicts the range of motion on the X200 light (all versions).
- Page 9 The X2 Series uses a single button on the back of the head to power the light on and off, and to adjust the brightness (intensity). • Press once to power ON. • Press and hold to adjust the intensity. It takes approximately 4 seconds to switch between the highest and lowest settings.
- Page 10 Mounting height procedures the light will be used for. If in doubt consult the end user or DARAY. When installing the bracket take consideration of where you want the light head to sit when in its lowest position. The X2 wall mounted light uses a plug top transformer with a DC jack connector.
- Page 11 The power supply for the X2 is a plug top transformer with a DC jack connection, these can be inserted into any standard UK wall socket. Please note, under no circumstances should this product be connected directly to the mains electrical supply. This product must only be used with a DARAY-certified power adapter.
- Page 12 The light can now be tested by connecting the DC jacks and applying power. Press the switch on the head to power your light on. See page 8 Check arm and head for smooth and correct movement. Your new DARAY light is now ready for use.
- Page 13 Remove the light from its packaging. If you have also purchased our XRAIL accessory, hold the rail against the selected location on the wall, bearing in mind the final position and range of travel of the light-head required to project its light-patch where it will be needed. Ensuring the rail is horizontal;...
- Page 14 X200LDS (includes PIVOTS weighted base) • Remove the light from its packaging. • Fit the spigot on the end of the light arm into the top of the weighted base, make sure it is fully secured in place using the thumbscrew. •...
- Page 16 • Insert the orange IEC cable into the black PSU attached to the base upstand. • The light can now be tested by connecting the DC jack/socket between the power supply and the light and applying power. • Press the switch on the head to power your light on. See section 3.2.
- Page 17 • Battery back-up unit • Double-ended bridge cable • 12V PSU + extension cable...
- Page 18 Undo the screw on the face of the battery cabinet and remove the cover. Connect the red wire to the red (+) terminal on the battery. Remove the backing from the sticky pads on the underside of the battery. Connect the black wire to the black (+) terminal on the battery.
- Page 19 Replace the cabinet’s front cover and secure with its screw. Stick the battery in place, base down, inside the cabinet. Be careful not to trap any cables. Connect the DC jack plug and socket. Press the green switch on the top of the cabinet to power on the battery unit.
- Page 20 All instructions must be followed to ensure a safe operation of this product. Seek guidance from DARAY Technical team if you are unsure about any of the following instruction. Call 0800 878 9864 for technical advice and support.
- Page 21 The proposed maintenance is only a suggestion. Depending on the use of the product and the operating environment, this may need to be revised more often. Do not attempt any fixes before consulting DARAY. 0800 878 9864 If you cannot resolve a problem, please contact our helpline on support@DARAY.co.uk...
- Page 22 These guidelines are provided to help you maintain your equipment properly and prevent any damage. Use of incompatible cleaning chemicals can adversely affect the finish and physically damage the metal and plastic parts of the DARAY product, invalidating its warranty.
- Page 23 • MEK (Methyl Ethyl Ketone) If you are unsure whether you are using the correct cleaning fluids on your DARAY equipment, please feel free to get in touch with us for advice. The head of the X2 Series light has a total turning capability of 320 degrees, attempting to push further may cause damage to the movement and internal wiring of the light.
- Page 24 For spare parts or technical issues call DARAY on: Email support@DARAY.co.uk If the light was originally purchased through a distributor, contact them in the first instance for a resolution. Please contact DARAY for help with any problems that the distributor cannot solve.
- Page 25 Please fill out your warranty registration online at www.daray.co.uk/warranty or contact DARAY by phone (0800 878 9864) or email support@daray.co.uk DARAY's standard warranty is 12 months. However, this period may be extended to 5 years free of charge by completing and submitting the warranty registration.
- Page 26 The period of warranty is the period stated on your warranty card and commences on the date of purchase of the product. In the event that the product is not in good working order DARAY will provide, during the warranty period, a free repair service within the United Kingdom.
- Page 27 This page intentionally left blank...
- Page 28 DARAY Ltd. Edison House Robian Way Swadlincote Derbyshire United Kingdom DE11 9DH +44 (0)800 878 9864 International +44 (0)1283 221 230 sales@daray.co.uk www.daray.co.uk...
