Unlock Scanner - Microtek ObjectScan 1600 Quick Start Manual

3.

Unlock Scanner

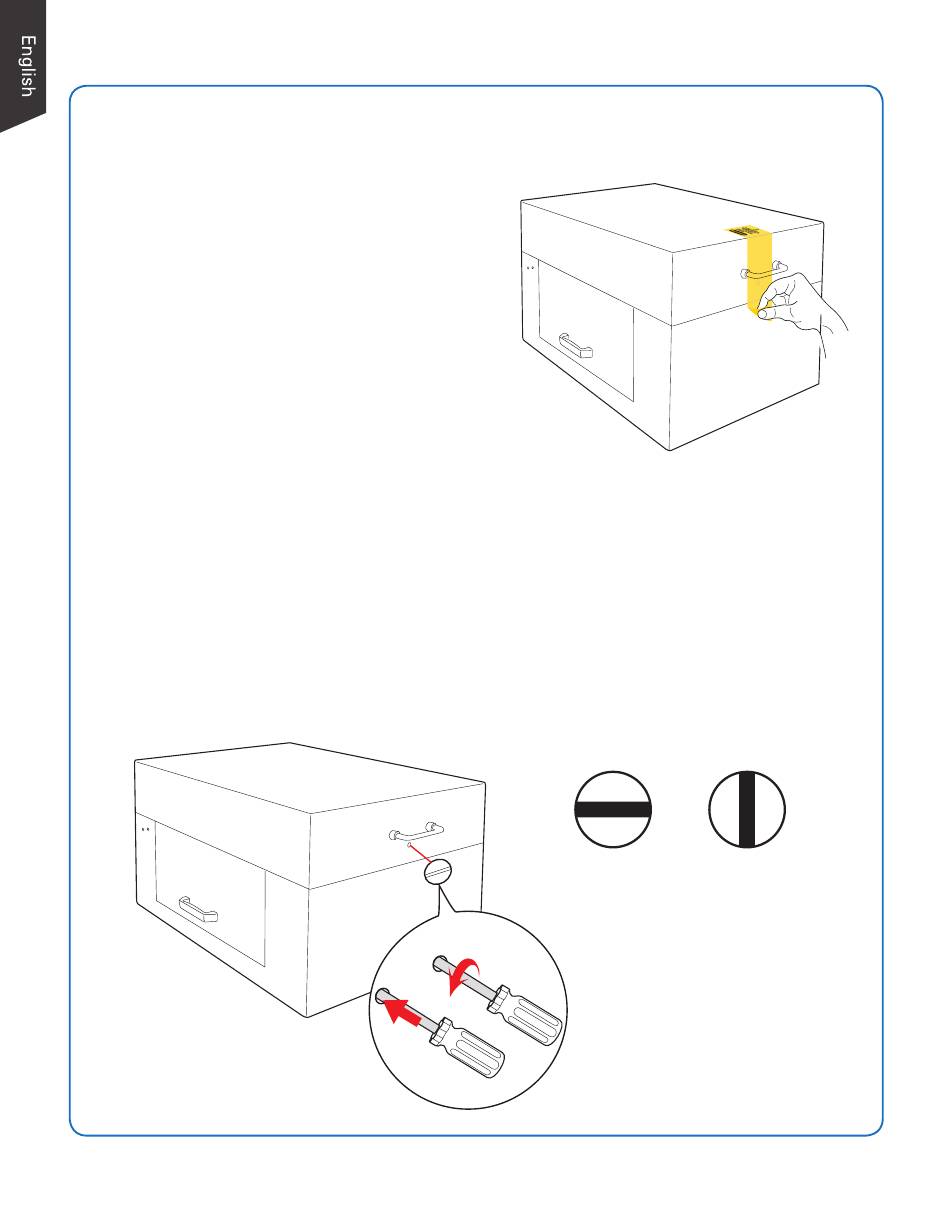

A. Remove the yellow sticker at the
middle of the right panel of the
scanner and locate the locking screw
under.
B. Using a flat-head screwdriver, pass through a round circle at the outer shell of
the scanner and insert a hollow side of the locking screw: 1) push to the end
with force, and 2) turn the locking screw counterclockwise 90 degrees to the
unlock position.
When successfully unlocked, the screw will push out a little, protruding slightly
from the side of the scanner.
NOTE: To lock the scanner (for shipping and other reasons), refer to the User's Manual in the Microtek
Software DVD.
Locked
2) Turn counterclockwise
1) Push to the end with force
2
Unlocked
