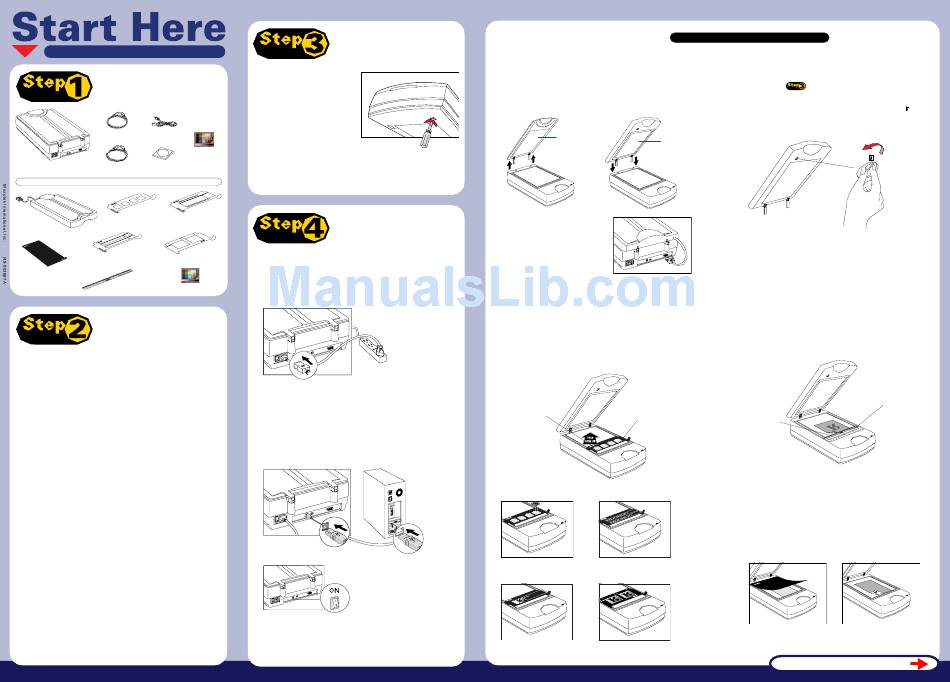

Microtek TMA 1000XL Quick Start

Installing your Microtek ScanMaker 1000XL
Unpack Contents
FireWire cable Power cord
Reflective Target
ScanMaker 1000XL USB cable Software CDs
Items below included with optional TMA 1000XL package
35mm Slide Template (3) 120 Film Template with
TMA 1000XL
Black Plate (3)
35mm Filmstrip Template (3) 4"x5" Film Template (2)
Black Plate
(for scanning reflectives)
Film Alignment Ruler Transparency Target
Install Software
Important: Do not remove the yellow stickers from your scanner until you are told to do
so. You must install software before connecting your scanner. Always close any open
programs and turn off Anti-virus utilities before installing software.
PC:
A. Place the Adobe CD-ROM into the CD-ROM drive, and install
the software. Skip this step if you have a newer version of Photoshop
Elements already installed on your computer.
B. Place the Microtek software CD-ROM into the CD-ROM drive, and
follow the on-screen instructions to install the driver and software.
NOTE: If the Microtek Software Installer screen does not come up
automatically, double-click the following in succession: "My Computer"; the CD-
ROM icon; then cdsetup.exe to start the installer program.
C. Insert the IT8 Calibration Data CD for the Microtek Scanner ICC
Profiler (MSP) program into your CD-ROM drive, and follow the on-
screen instructions for installation.
D. Restart your computer at the end of all software installation.
MAC:
A. Place the Adobe CD-ROM into the CD-ROM drive, and install the
software. Skip this step if you have a newer version of Photoshop
Elements already installed on your computer.
B. Place the Microtek software CD-ROM into the CD-ROM drive, and take
note of the following:
• For OS X, double-click the ScanWizard Pro installer icon to install
ScanWizard Pro first. Next, double-click the MSP installer icon to
install the Microtek Scanner ICC Profiler (MSP) program. Finally, insert
the IT8 Calibration Data CD, and double-click the IT8 installer icon
to complete MSP installation.
• For OS 9.x, double-click the ScanWizard Pro folder and installer icon
to install ScanWizard Pro. Next, double-click the Scanner ICC
Profiler folder and installer icon.
C. Install the remaining software components, then restart your computer at
the end of all software installation.
NOTE: After rebooting your Macintosh, the Microtek software will attempt to locate
your scanner on the system. Since this is your first install and you have not yet
connected the scanner, simply ignore the message that appears and proceed to the
next step.
Unlock Scanner
A. Remove the yellow "Step 3"
sticker from your scanner.
B. With the scanner power off, tilt
the front right corner of the
scanner to see the locking screw
at the bottom.
C. Using a screwdriver, push and
turn the locking screw
counterclockwise to the unlock
position. When successfully
unlocked, the screw will push out a little, protruding slightly from the
bottom of the scanner.
NOTE: To lock the scanner (for shipping and other reasons), refer to the ScanMaker
1000XL User Guide.
Connect Scanner
To the power adapter
A. Remove the yellow "Step 4" sticker from your scanner.
B. Connect the power cord to the back of the scanner.
C. Plug the power cord into a power source.
C
B
To the Hi-Speed USB cable
D. Connect one end of the cable to your computer.
E. Connect the other end of the cable to the scanner.
F . Press the power switch at the back of your scanner, and wait for the
indicator light on the front panel to stop blinking and stay on steady.
The system will detect your scanner automatically.
D
E
NOTE: If your computer has both Hi-
Speed USB (USB 2.0) and USB 1.1
ports, connect the cable to the Hi-
Speed USB port. Use the USB 1.1
port only if your computer does not
have Hi-Speed USB.
F
For details on how to connect using the alternate FireWire connection, refer
to the ScanMaker 1000XL User Guide.
Using the TMA 1000XL
NOTE: If you purchased a standard ScanMaker 1000XL without the TMA 1000XL, see only the section below on positioning reflective materials without the TMA 1000XL.
I. Installing the TMA 1000XL
1. Make sure that the scanner power is turned off.
2. Remove the scanner lid, then attach the TMA 1000XL by sliding the posts at
the rear of the TMA 1000XL into the holes.
Scanner lid
TMA 1000XL
3. Plug the connector of the
TMA 1000XL into the scanner's
15-pin accessory port.
III. Positioning the Scan Material
A. Positioning Transparencies
1. To scan standard-size transparent film such as 35mm slides, 35mm
filmstrips, 4"x5" film, or 120 film: Use the individual film templates
included with the TMA 1000XL package. Make sure the templates are
oriented correctly on the scanner glass surface, with the Microtek logo on
the templates facing up. Keep the calibration strip on the glass surface
clear and free of obstruction at all times.
Important:
When using the
templates, make
Calibration strip
sure you use the
(Keep clear and unobstructed)
correct side up. The
correct side up is the
side showing the
"Microtek" logo
facing up.
Using the 35mm Slide Template Using the 35mm Filmstrip Template
Using the 120 Film Template Using the 4" x 5" Film Template
This section for users only with purchased TMA 1000XL
II. Unlocking the TMA 1000XL
1. Remove the yellow sticker from the TMA 1000XL.
2. Look for the locking knob at the base of the TMA 1000XL.
3. Turn the locking knob counterclockwise to the unlock position "
NOTE: If you need to transport your TMA 1000XL, you will have to lock it back. For
more details, please see the ScanMaker 1000XL User Guide.
2. To scan non-standard-size transparent film, use the Film Alignment Ruler
included with the TMA 1000XL package. Place the Film Alignment Ruler
on the scanner glass surface. Then place the film to be scanned face
down also on the scanner glass surface, centering the film along the Film
Alignment Ruler. Make sure you keep the calibration strip on the glass
surface clear and free of obstruction at all times.
Film Alignment
Ruler
B. Positioning Reflectives
To scan reflective originals such as photos, you can use the ScanMaker
1000XL with or without the TMA 1000XL.
• If you purchased your ScanMaker 1000XL with the TMA, you will need to
use the Black Plate included with your TMA 1000XL package to shield
unwanted light.
• If you purchased your ScanMaker 1000XL without the TMA, simply lift the
scanner lid, and place the reflective original to be scanned on the glass
surface. Center the photo along the U-shaped ruler of the scanner.
With TMA 1000XL & Black Plate
TURN OVER TO CONTINUE
" .
Calibration strip
(Keep clear and unobstructed)
Without TMA 1000XL
